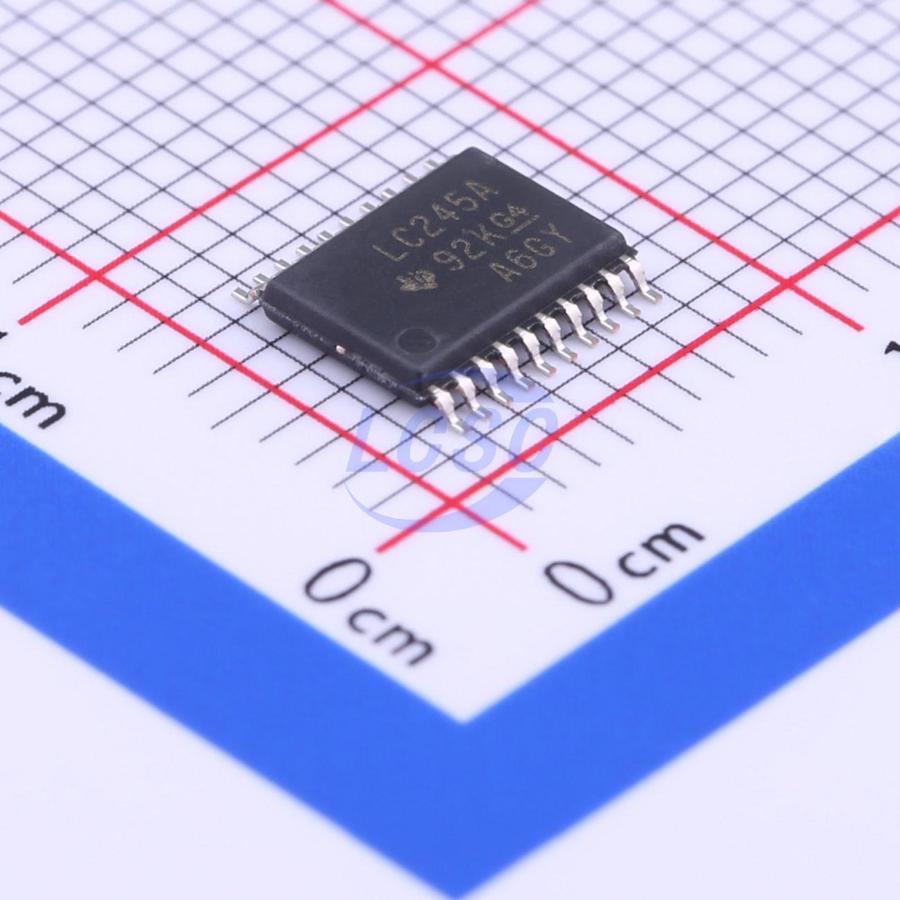

SN74LVC245APWR
1.65V~3.6V 8 1 3.8ns@3.3V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal Bus Transceiver With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC245APWR
- Store part #
- C7848
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,870 in stock
#C7848
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.01 | ₹230.05 |
| 50+ | ₹35.17 | ₹1,758.50 |
| 150+ | ₹29.86 | ₹4,479.00 |
| 500+ | ₹25.14 | ₹12,570.00 |
| 2,000+ | ₹23.84 | ₹47,680.00 |
| 4,000+ | ₹23.06 | ₹92,240.00 |
5 × ₹46.01
₹230.05
excl. GST
₹271.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC245APWR
₹230.05 for 5 + GST
Specifications
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~3.6V
- Series
- 74LVC
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 30uA
- Propagation Delay
- 3.8ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
These octal bus transceivers are designed for 1.65-V to 3.6-V VCC operation. The ’LVC245A devices are designed for asynchronous communication between data buses.
Applications
- Cable Modem Termination Systems
- Servers
- LED Displays
- Network Switches
- Telecom Infrastructure
- Motor Drivers
- I/O Expanders
Key features
- Operates From 1.65 V to 3.6 V
- Inputs Accept Voltages to 5.5 V
- Max tₚd of 6.3 ns at 3.3 V
- Typical Vₒₗₚ (Output Ground Bounce) <0.8 V at VCC = 3.3 V, Tₐ = 25℃
- Typical Vₒₕᵥ (Output Vₒₕ Undershoot) >2 V at VCC = 3.3 V, Tₐ = 25℃
- Iₒff Supports Live Insertion, Partial-Power-Down Mode and Back Drive protection
- Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model 1000-V Charged-Device Model
