TIDatasheet (PDF)

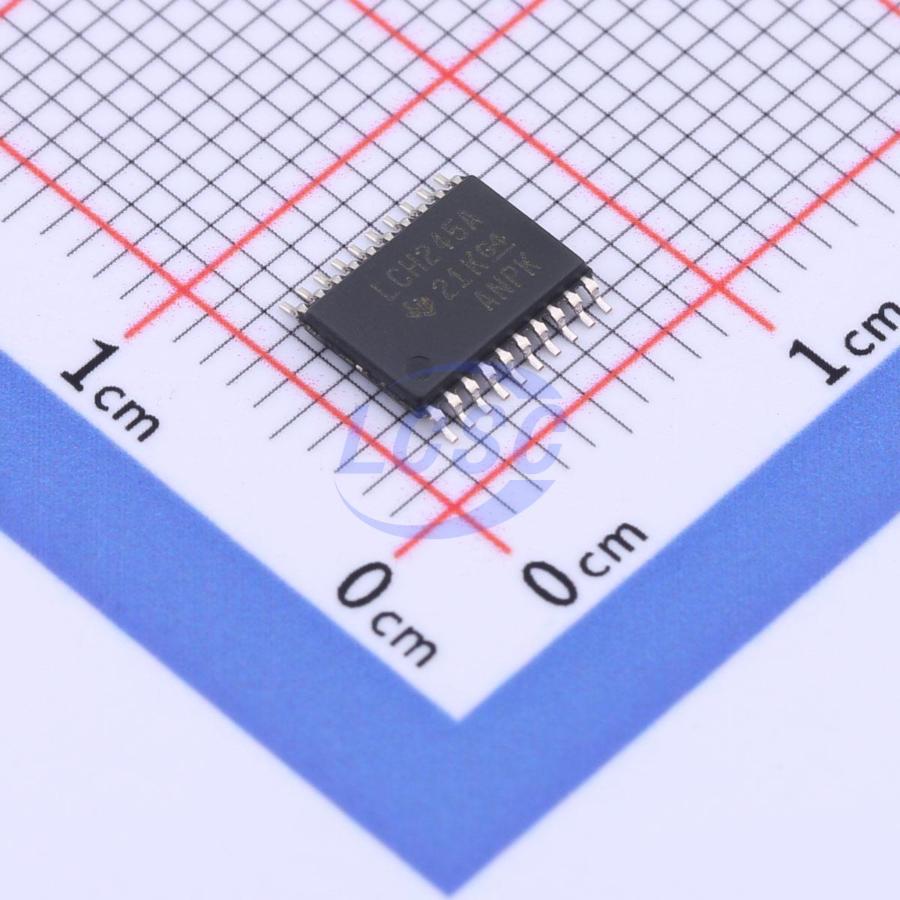

SN74LVCH245APWR
1 Element 8 Bit per Element Tri-State Output TSSOP-20
TSSOP-20ROHS3 CompliantActive
8-bit bus transceiver with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVCH245APWR
- Store part #
- C352976
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,305 in stock
#C352976
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.19 | ₹88.19 |
| 10+ | ₹74.72 | ₹747.20 |
| 30+ | ₹64.96 | ₹1,948.80 |
| 100+ | ₹57.13 | ₹5,713.00 |
| 500+ | ₹54.52 | ₹27,260.00 |
| 1,000+ | ₹53.22 | ₹53,220.00 |
1 × ₹88.19
₹88.19
excl. GST
₹104.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVCH245APWR
₹88.19 for 1 + GST
Specifications
- Function
- Power-off isolation;Bus hold;Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~3.6V
- Series
- 74LVCH
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 6.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.46 g
Overview
The SN54LVCH245A octal bus transceiver is designed for 2.7V to 3.6V VCC operation, and the SN74LVCH245A octal bus transceiver is designed for 1.65V to 3.6V VCC operation. Inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V/5V system environments.
Applications
- Servers
- PCs and laptops
- Network switches
- Wearable health devices
- Telecom infrastructure electronic point-of-sale terminals
Key features
- Operating voltage range 1.65V to 3.6V
- Input voltage up to 5.5V
- tpd maximum 6.3ns at 3.3V
- VOLP (output ground bounce) typical value less than 0.8V at VCC = 3.3V, TA = 25℃
- VOHV (output VOH undershoot) typical value greater than 2V at VCC = 3.3V, TA = 25℃
- All ports (5V I/O voltage with 3.3V VCC) support mixed-mode signal operation
- Ioff supports hot insertion, partial power-down mode, and back-drive protection
- Bus-hold data inputs eliminate the need for external pull-up or pull-down resistors
- Latch-up performance exceeds 250mA per JESD 17
- ESD protection performance exceeds JESD 22 requirements
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
