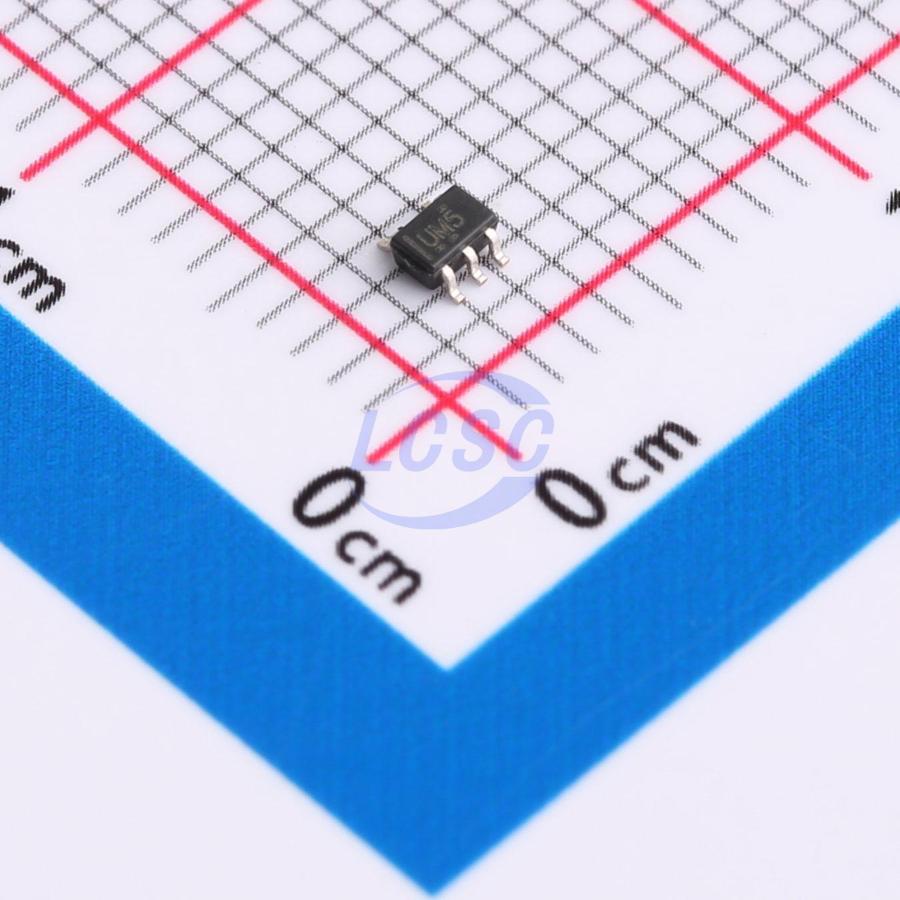

SN74AUC1G125DCKR

This bus buffer gate is operational at 0.8 V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE(overline) should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• AV Receiver
• Audio Dock: Portable
• Blu-Ray Player and Home Theater
• Embedded PC
• MP3 Player/Recorder (Portable Audio)
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply: Single
• Controller: Analog and Digital
• Solid State Drive (SSD): Client and Enterprise
• TV: LCD/Digital and High-Definition (HDTV)
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard, and Mouse

Key features

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• Available in the NanoFree™ Package
• Optimized for 1.8-V Operation and Is 3.6-V I/O
• Tolerant to Support Mixed-Mode Signal Operation
• Ioff Supports Partial Power Down Mode and Back Drive Protection
• Sub-1-V Operable
• Max tpd of 2.5 ns at 1.8 V
• Low Power Consumption, 10 μA Maximum ICC
• ±8-mA Output Drive at 1.8 V
