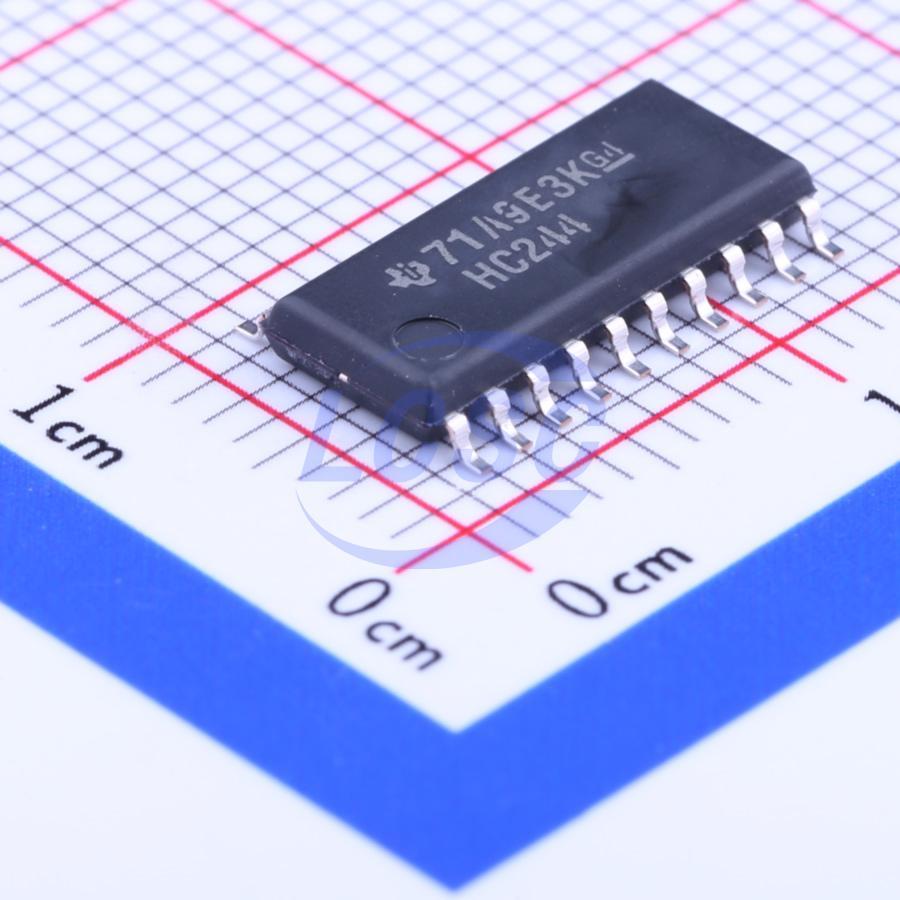

SN74HC244NSR
2V~6V 4 2 20ns@6V,50pF SOIC-20-208mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-208milROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC244NSR
- Store part #
- C10094
- Package / case
- SOIC-20-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,653 in stock
#C10094
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.01 | ₹121.01 |
| 10+ | ₹96.25 | ₹962.50 |
| 30+ | ₹83.86 | ₹2,515.80 |
| 100+ | ₹71.48 | ₹7,148.00 |
| 500+ | ₹64.10 | ₹32,050.00 |
| 1,000+ | ₹60.41 | ₹60,410.00 |
1 × ₹121.01
₹121.01
excl. GST
₹142.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC244NSR
₹121.01 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 20ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.491 g
Overview
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3 - state memory address drivers, clock drivers, and bus - oriented receivers and transmitters. The 'HC244 devices are organized as two 4 - bit buffers/drivers with separate output - enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high - impedance state.
Applications
- Memory address driving
- Clock driving
- Bus-oriented transceivers
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High - Current Outputs Drive Up To 15 LSTTL Loads
- 3 - State Outputs Drive Bus Lines or Buffer Memory Address Registers
- Low Power Consumption, 80 - μA Max Icc
- Typical tpd = 11 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC241NSR#C2676023TI · SO-20-208mil | TI | SO-20-208mil | 13 | ₹54.15 · 13 in stock | View |
 | SN74HC244NSR(LX)#C22374047lingxingic · SOIC-20-208mil | lingxingic | SOIC-20-208mil | 3,350 | ₹35.67 · 3,350 in stock | View |
 | SN74HC244DTR(XBLW)#C18723515XBLW · SOP-20 | XBLW | SOP-20 | 6,340 | ₹21.84 · 6,340 in stock | View |
 | SN74AHC244NSR#C2676213TI · SO-20-208mil | TI | SO-20-208mil | 10 | ₹85.66 · 10 in stock | View |
| SN74AC244MNSREP#C2675973TI · SO-20-208mil | TI | SO-20-208mil | 96 | ₹363.89 · 96 in stock | View | |
