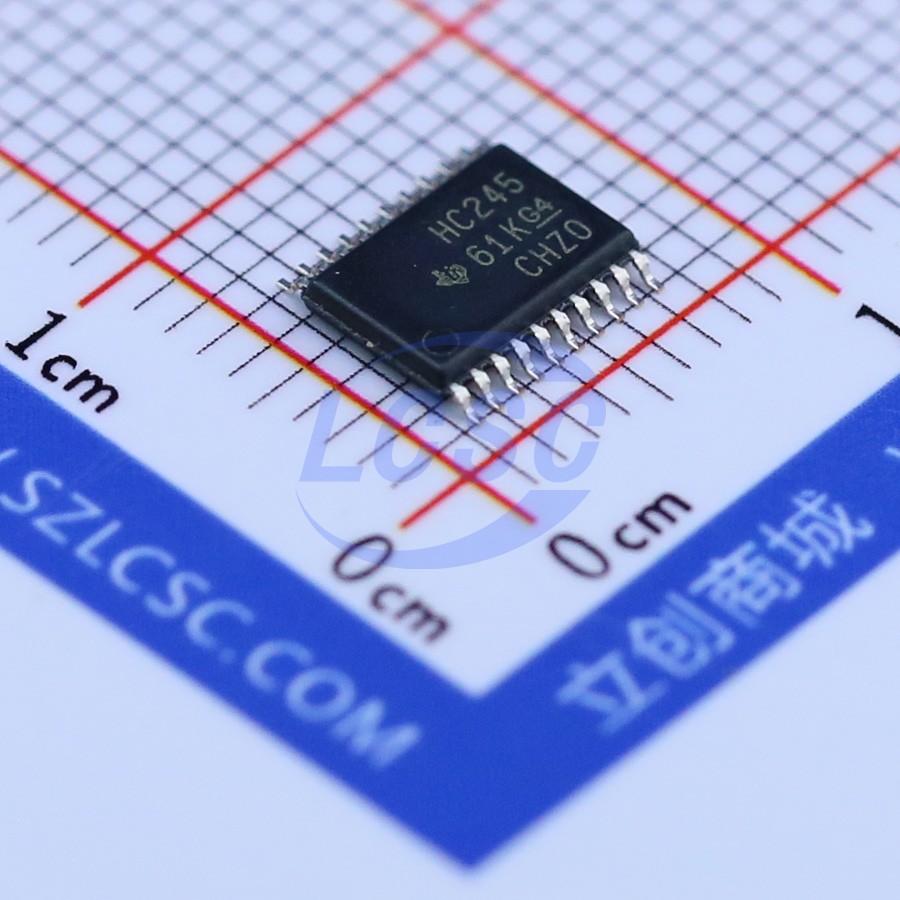

SN74HC245PWR
2V~6V 8 1 21ns@4.5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
OCTAL BUSTRANSCEIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC245PWR
- Store part #
- C37101
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,05,465 in stock
#C37101
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.01 | ₹170.05 |
| 50+ | ₹25.85 | ₹1,292.50 |
| 150+ | ₹21.87 | ₹3,280.50 |
| 500+ | ₹18.31 | ₹9,155.00 |
| 2,000+ | ₹17.33 | ₹34,660.00 |
| 4,000+ | ₹16.75 | ₹67,000.00 |
5 × ₹34.01
₹170.05
excl. GST
₹200.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC245PWR
₹170.05 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 21ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Applications
- Asynchronous bidirectional communication between data buses
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current 3-State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
- Low Power Consumption, 80- μA Max Icc
- Typical tpd = 12 ns
- ± 6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MM74HC245AMTC#C897482onsemi · TSSOP-20 | onsemi | TSSOP-20 | 140 | ₹153.57 · 140 in stock | View | |
 | SN74HC640PWR#C2675936TI · TSSOP-20 | TI | TSSOP-20 | 27 | ₹212.92 · 27 in stock | View |
 | U74HC245G#C7509614UTC · TSSOP-20 | UTC | TSSOP-20 | 415 | ₹27.19 · 415 in stock | View |
 | SN74HC245PW(LX)#C22374053lingxingic · TSSOP-20 | lingxingic | TSSOP-20 | 26,615 | ₹15.98 · 26,615 in stock | View |
 | CJ74HC245BGN#C52145530JSCJ · TSSOP-20 | JSCJ | TSSOP-20 | 3,895 | ₹29.69 · 3,895 in stock | View |
