TIDatasheet (PDF)

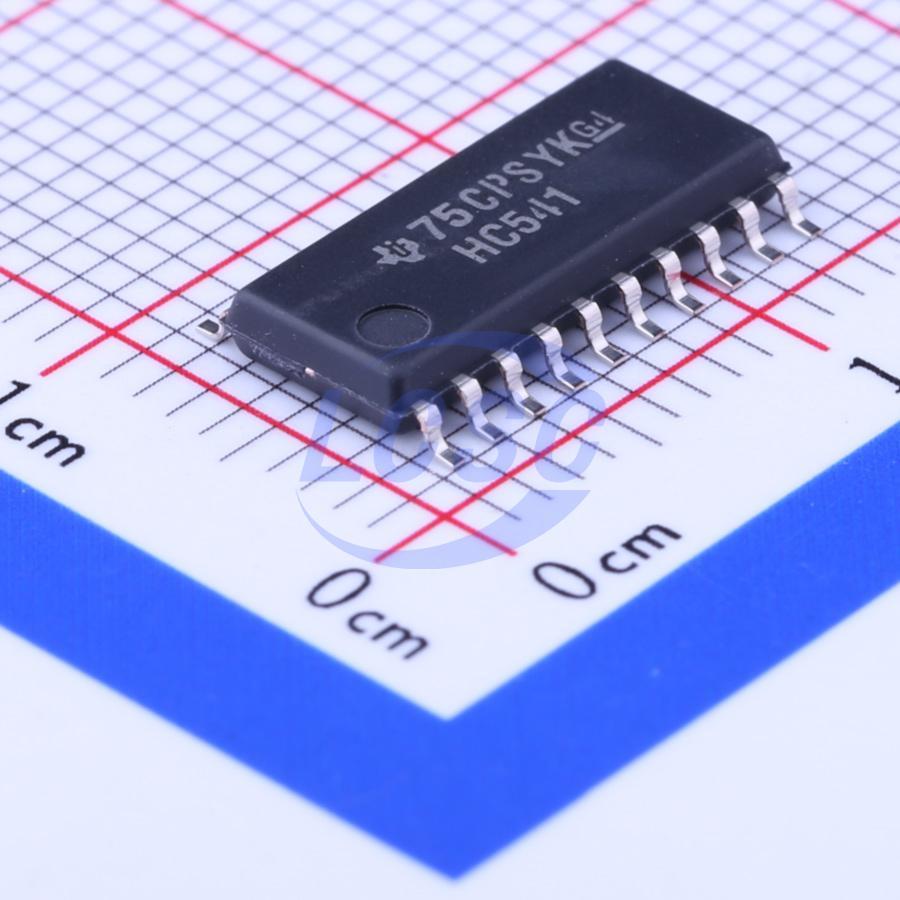

SN74HC541NSR
2V~6V 8 1 23ns@4.5V,50pF SOIC-20-208mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-208milROHS CompliantActive
Octal Buffers and Line Drivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC541NSR
- Store part #
- C116811
- Package / case
- SOIC-20-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,515 in stock
#C116811
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.66 | ₹97.66 |
| 10+ | ₹80.48 | ₹804.80 |
| 30+ | ₹71.80 | ₹2,154.00 |
| 100+ | ₹63.29 | ₹6,329.00 |
| 500+ | ₹50.82 | ₹25,410.00 |
| 1,000+ | ₹48.29 | ₹48,290.00 |
1 × ₹97.66
₹97.66
excl. GST
₹115.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC541NSR
₹97.66 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 23ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.491 g
Overview
These octal buffers and line drivers feature the performance of the SNx4HC541 devices and a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3 - state outputs are controlled by a two - input NOR gate. If either output - enable (OE1 or OE2) input is high, all eight outputs are in the high - impedance state. The SNx4HC541 devices provide true data at the outputs.
Applications
- LEDs
- Servers
- PCs and Notebooks
- Wearable Health and Wellness Devices Electronic Points of Sale
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High - Current 3 - State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
- Low Power Consumption, 80 μA Maximum ICC
- Typical tpd = 10 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Maximum
- Data Flow - Through Pinout (All Inputs on Opposite Side From Outputs)
