TOSHIBADatasheet (PDF)

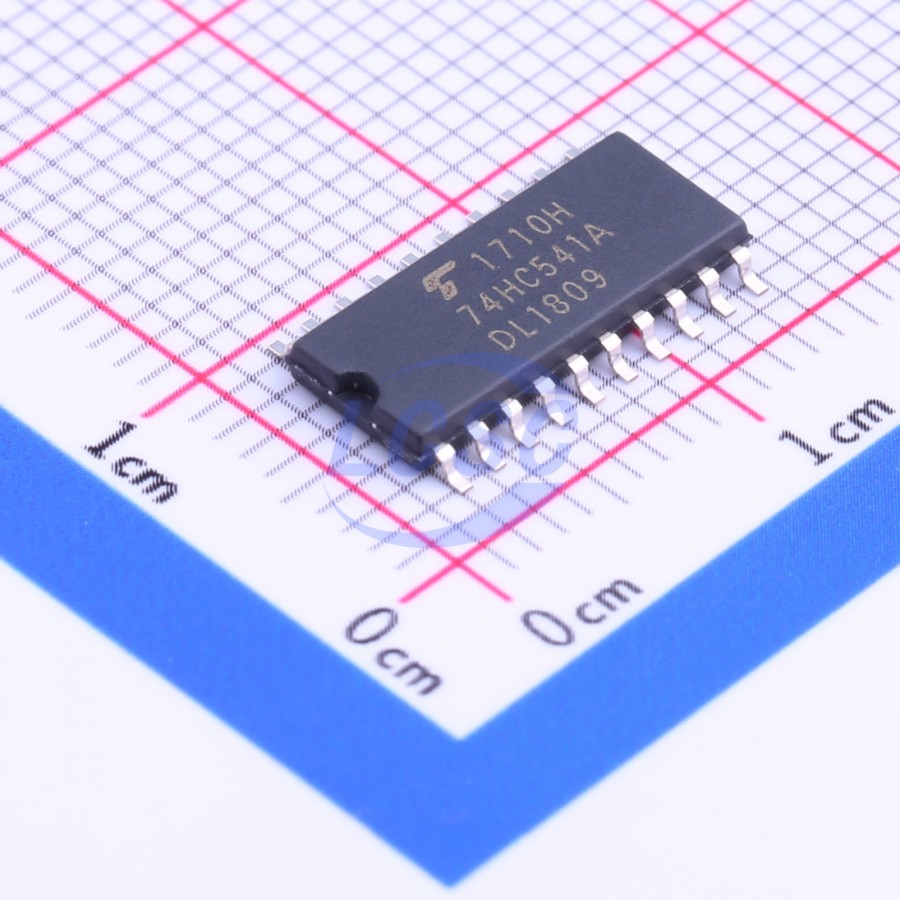

TC74HC541AF(EL,F)
2V~6V 8 1 10ns@5V,50pF SOIC-20-208mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-208milROHS3 CompliantActive
Octal Bus Buffer, Inverting/Non-Inverting, 3-State Outputs
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74HC541AF(EL,F)
- Store part #
- C146313
- Package / case
- SOIC-20-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,328 in stock
#C146313
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.27 | ₹107.27 |
| 10+ | ₹96.46 | ₹964.60 |
| 30+ | ₹90.51 | ₹2,715.30 |
| 100+ | ₹83.84 | ₹8,384.00 |
| 500+ | ₹80.77 | ₹40,385.00 |
| 1,000+ | ₹79.33 | ₹79,330.00 |
1 × ₹107.27
₹107.27
excl. GST
₹126.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TC74HC541AF(EL,F)
₹107.27 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 10ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
The TC74HC540A/TC74HC541A are high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate C²MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The TC74HC540A is an inverting type, and the TC74HC541A is a non-inverting type. When either G1 or G2 are high, the terminal outputs are in the high-impedance state. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 10 ns (typ.) at VCC = 5 V
- Low power dissipation: Icc = 4 μA (max) at Ta = 25℃
- High noise immunity: ΔVNIH = VNIL = 28% VCC (min)
- Output Drive Capability: 15 LSTTL loads
- Symmetrical output impedance: IIOHI = IOL = 6 mA (min)
- Balanced propagation delays: tpLH ≃ tpHL
- Wide operating voltage range: VCC(opr) = 2 to 6 V
- Pin and function compatible with 74LS540/541
