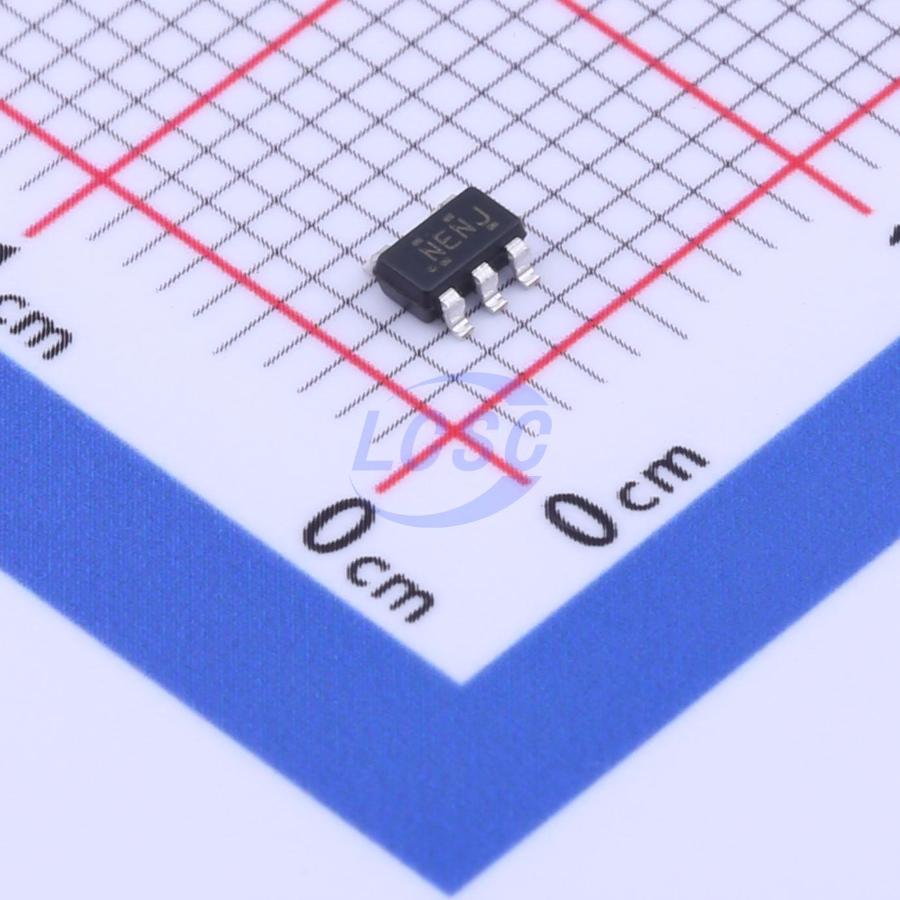

SN74LV1T126DBVR
1 1 SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS3 CompliantActive
Single-supply single-channel buffer gate with three-state output CMOS logic level converter
- Manufacturer
- TI
- Manufacturer part #
- SN74LV1T126DBVR
- Store part #
- C2440228
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,855 in stock
#C2440228
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.30 | ₹266.50 |
| 50+ | ₹44.39 | ₹2,219.50 |
| 150+ | ₹40.56 | ₹6,084.00 |
| 500+ | ₹35.80 | ₹17,900.00 |
| 3,000+ | ₹33.67 | ₹1,01,010.00 |
| 6,000+ | ₹32.40 | ₹1,94,400.00 |
5 × ₹53.30
₹266.50
excl. GST
₹314.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T126DBVR
₹266.50 for 5 + GST
Specifications
- Function
- Output enable high-impedance
- Voltage - Supply
- 1.8V~5.5V;1.6V~5.5V
- Output Signal
- CMOS
- Input Signal
- CMOS
- Output Type
- Tri-State
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Number of Gates
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
SN74LV1T126 is a single-buffer gate with low input threshold, supporting voltage translation applications.
Applications
- Telecom
- Portable applications
- Servers
- PCs and laptops
Key features
- Single-supply voltage translator for VCC of 5V, 3.3V, 2.5V, and 1.8V
- Operating voltage range: 1.8V to 5.5V
- Step-up translation:
- 1.2V to 1.8V at 1.8V VCC
- 1.5V to 2.5V at 2.5V VCC
- 1.8V to 3.3V at 3.3V VCC
- 3.3V to 5.0V at 5.0V VCC
- Step-down translation:
- 3.3V to 1.8V at 1.8V VCC
- 3.3V to 2.5V at 2.5V VCC
- 5.0V to 3.3V at 3.3V VCC
- Logic outputs referenced to VCC with output drive:
- 8mA output drive at 5V
- 7mA output drive at 3.3V
- 3mA output drive at 1.8V
- Frequency up to 50MHz at 3.3V VCC
- 5V-tolerant input pins
- Operating temperature range: -40℃ to 125℃
- Latch-up performance exceeds 250mA per JESD 17
- Standard logic pinout support
- CMOS output B1 compatible with AUP1G and LVC1G series
