TECH PUBLICDatasheet (PDF)

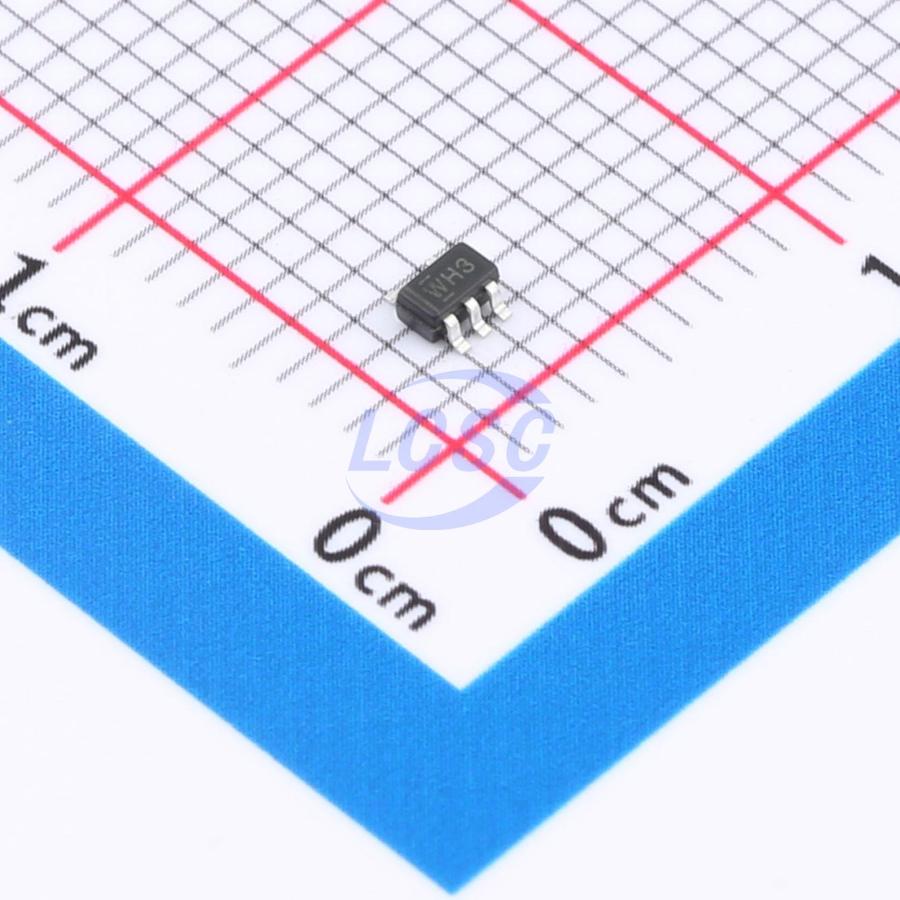

SN74LV1T86DCKR-TP
XOR Gate IC 1 Channel SOT-353
SOT-353RoHSActive
2-input single supply translating EXCLUSIVE-OR gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LV1T86DCKR-TP
- Store part #
- C48886798
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C48886798
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹9.86 | ₹493.00 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.51 | ₹3,755.00 |
| 3,000+ | ₹6.71 | ₹20,130.00 |
| 6,000+ | ₹6.31 | ₹37,860.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T86DCKR-TP
₹62.70 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LV
- Input Logic Level - Low
- 550mV~800mV
- Input Logic Level - High
- 940mV~2.1V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.28V~4.6V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV~350mV
- Propagation Delay
- 15.8ns@1.8V,30pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This device is a single-channel level-shifting 2-input XOR gate. Its low-threshold inputs support receiving 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. Additionally, its 5V-tolerant input pins support level down-translation (e.g., achieving 3.3V to 2.5V output at VCC = 2.5V).
Applications
- AV receiver
- Audio dock
- Blu-ray player & home theater
- Embedded PC
- Personal digital assistant
Key features
- Single-supply voltage translator supporting 1.8V, 2.5V, 3.3V, and 5.0V levels
- Operating voltage range: 1.8V to 5.5V
- ±25mA output drive capability
- Low quiescent current: Icc = 10μA (maximum)
- ESD protection exceeding JESD 22: 2000V HBM, 200V MM, 1000V CDM
