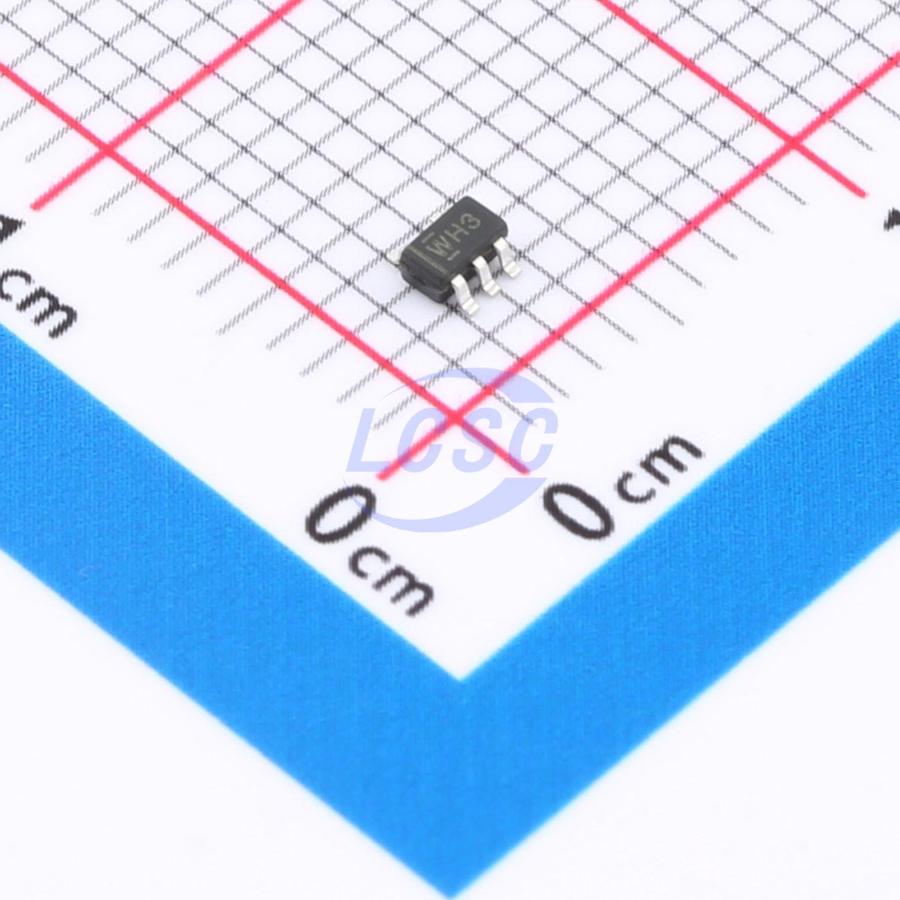

TP74LV1T86C5
XOR Gate IC 1 Channel SOT-353
SOT-353RoHSActive
2-input single supply translating EXCLUSIVE-OR gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LV1T86C5
- Store part #
- C48886816
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C48886816
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.45 | ₹77.25 |
| 50+ | ₹12.32 | ₹616.00 |
| 150+ | ₹10.74 | ₹1,611.00 |
| 500+ | ₹9.57 | ₹4,785.00 |
| 3,000+ | ₹8.61 | ₹25,830.00 |
| 6,000+ | ₹8.15 | ₹48,900.00 |
5 × ₹15.45
₹77.25
excl. GST
₹91.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LV1T86C5
₹77.25 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 580mV;750mV;800mV
- Logic Family
- 74LV
- Input Logic Level - High
- 940mV;990mV;1.135V;1.21V;1.35V;1.47V;2.02V;2.1V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.6V;4.5V;3.95V;2.8V;2.49V;2.7V;2.15V;2V;1.45V;1.21V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.8V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 350mV;252mV;250mV;200mV;150mV;100mV
- Propagation Delay
- 6.1ns@5V,30pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This device is a single-channel level-shifting 2-input XOR gate. Its low-threshold inputs support 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. In addition, its 5V-tolerant input pins support level down-translation (achieving 3.3V to 2.5V output at VCC = 2.5V).
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Power supplies
- Solid-state drives
- Wireless headphones
- Keyboards
- Mice
Key features
- Single-supply voltage translator supporting 1.8V, 2.5V, 3.3V, and 5.0V levels
- Operating voltage range: 1.8V to 5.5V
- ±25mA output drive capability
- Low quiescent current: Icc = 10μA (max)
- ESD protection exceeding JESD 22 standard
