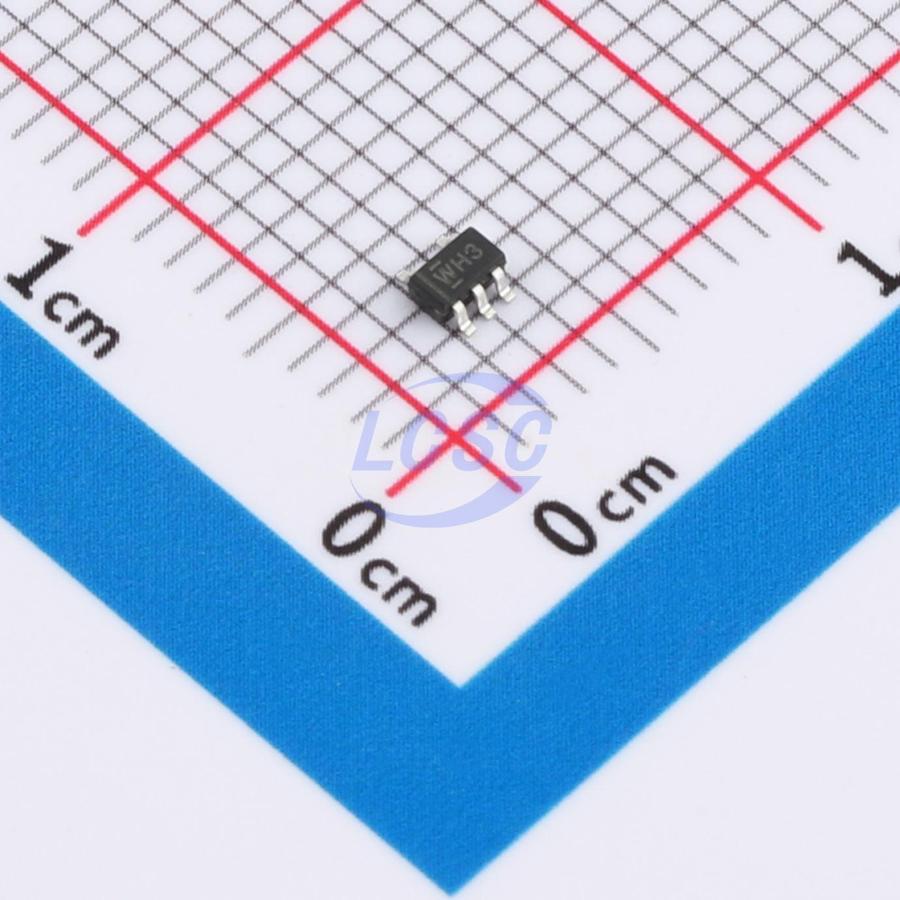

74LV1T86GW-TP
10uA 1.6V~5.5V 5.4ns@5V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LV1T86GW-TP
- Store part #
- C52098013
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C52098013
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LV1T86GW-TP
₹53.10 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LV
- Input Logic Level - Low
- 580mV;750mV;800mV
- Input Logic Level - High
- 940mV;990mV;1.135V;1.21V;1.35V;1.47V;2.02V;2.1V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.6V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 25mA
- Number of Channels
- 1;2
- Propagation Delay
- 5.4ns@5V,15pF
- Output Logic Level - Low
- 350mV
- Current - Output Low(IOL)
- 25mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This device is a single level-shifting 2-input XOR gate. Its low-threshold inputs support 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. Additionally, its 5V-tolerant input pins support level down-translation (achieving 3.3V to 2.5V output at VCC = 2.5V).
Applications
- AV Receiver
- Audio Dock
- Blu-ray Player & Home Theater
- Embedded PC
- Personal Digital Assistant
- Power Supply
- Solid State Drive
- Wireless Headset, Keyboard & Mouse
Key features
- Single-supply voltage translator supporting 1.8V, 2.5V, 3.3V, and 5.0V
- Operating voltage range: 1.8V to 5.5V
- ±25mA output drive capability
- Low quiescent current: Icc = 10μA (maximum)
- ESD protection exceeding JESD 22: 2000V HBM, 200V MM, 1000V CDM
