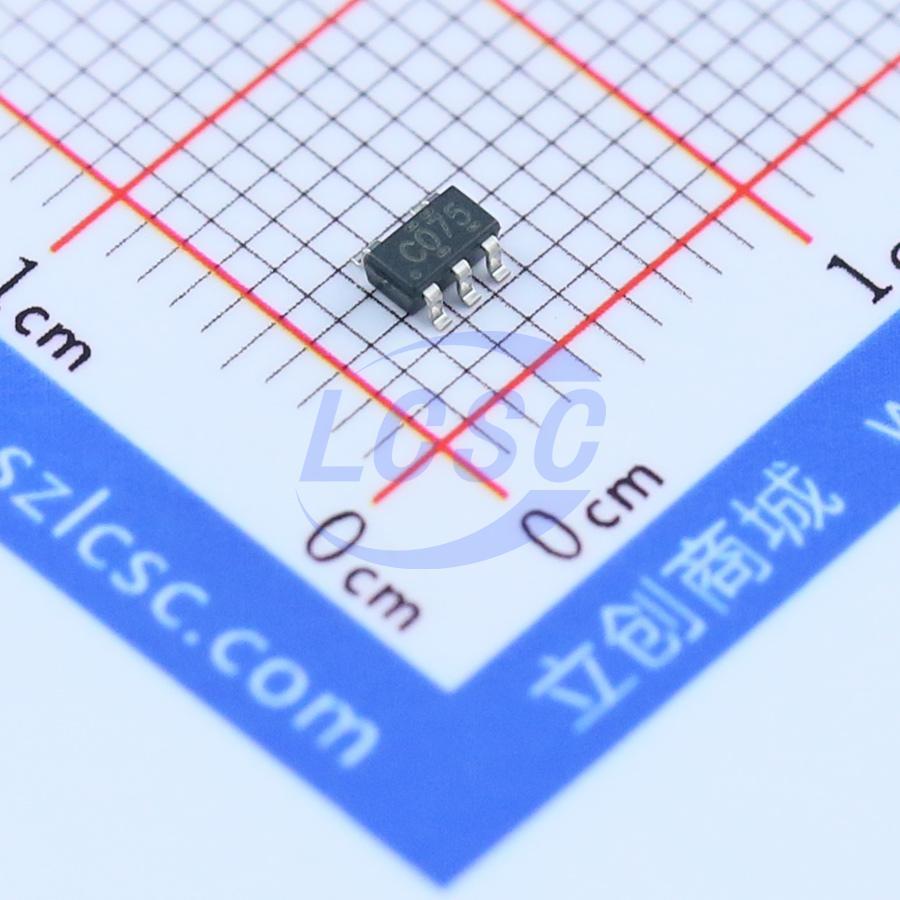

SN74LVC1G07DBVR

This single buffer/driver is designed for 1.65- V to 5.5- V VCC operation. The output of the SN74LVC1G07 device is open drain and can be connected to other open- drain outputs to implement active- low wired- OR or active- high wired- AND functions. The maximum sink current is 32 mA. The SN74LVC1G07 is available in a variety of packages, including the ultra- small DPW package with a body size of 0.8 mm x 0.8 mm.

Applications

• AV Receiver
• Blu- ray Player and Home Theater
• DVD Recorder and Player
• Desktop or Notebook PC
• Digital Radio or Internet Radio Player
• Digital Video Camera (DVC)
• Embedded PC
• GPS: Personal Navigation Device
• Mobile Internet Device
• Network Projector Front End
• Portable Media Player
• Pro Audio Mixer
• Smoke Detector
• Solid State Drive (SSD): Enterprise
• High- Definition (HDTV)
• Tablet: Enterprise
• Audio Dock: Portable
• DLP Front Projection System
• DVR and DVS
• Digital Picture Frame (DPF)
• Digital Still Camera

Key features

• Available in the Ultra Small 0.64- mm² Package (DPW) With 0.5- mm Pitch
• Supports 5- V VCC Operation
• Input and Open- Drain Output Accept Voltages up to 5.5- V
• Can Translate Up or Down
• Max tpd of 4.2 ns at 3.3 V
• Low Power Consumption, 10- μA Max ICC
• ±24- mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial- Power- Down Mode, and Back- Drive Protection
• Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000- V Human- Body Model (A114- A)
• 200- V Machine Model (A115- A)
• 1000- V Charged- Device Model (C101)
