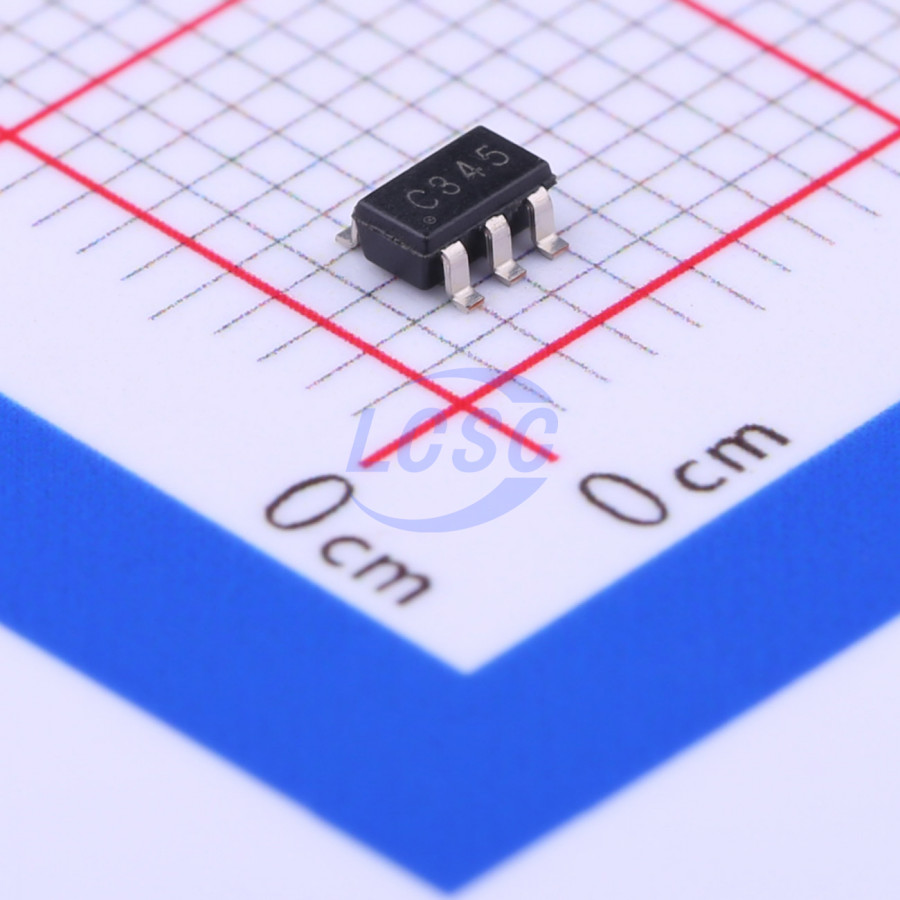

SN74LVC2G34DBVR

1.65V~5.5V 1 2 4.1ns@3.3V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-6ROHS3 CompliantActive

Dual Buffer Gate

Manufacturer: TI
Manufacturer part #: SN74LVC2G34DBVR
Store part #: C347589
Package / case: SOT-23-6
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

29,010 in stock

#C347589

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.37	₹111.85
50+	₹18.03	₹901.50
150+	₹15.86	₹2,379.00
500+	₹14.25	₹7,125.00
3,000+	₹10.44	₹31,320.00
6,000+	₹9.78	₹58,680.00

Quantity (min 5, multiples of 5)

5 × ₹22.37

₹111.85

excl. GST

₹131.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC2G34DBVR

₹111.85 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 2
Propagation Delay: 4.1ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The SN74LVC2G34 device is a dual buffer gate designed for 1.65-V to 5.5 V CC operation. The SN74LVC2G34 device performs the Boolean function Y = A in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

AV Receivers
Audio Docks: Portable
Blu-ray Player and Home Theaters
DVD Recorders and Players
Embedded PCs
MP3 Players and Recorders (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server
AC/DC Supply: Single
Controller: Analog and Digital
Solid-State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablets: Enterprise
Video Analytics: Servers
Wireless Headsets, Keyboards, and Mice

Key features

Available in the NanoFree Package
Supports 5.5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Maximum tpd of 4.1 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
±24-mA Output Drive at 3.3 V
Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
|off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the VCC Level
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LVC2G34DBVR-TP#C49374610TECH PUBLIC · SOT-23-6	TECH PUBLIC	SOT-23-6	1,910	₹6.02 · 1,910 in stock	View
TP74LVC2G34S6#C49374612TECH PUBLIC · SOT-23-6	TECH PUBLIC	SOT-23-6	2,660	₹7.10 · 2,660 in stock	View
74LVC2G34W6-7#C460540DIODES · SOT-26	DIODES	SOT-26	525	₹14.30 · 525 in stock	View
SN74LVC2G34DB(LX)#C41361212lingxingic · SOT-23-6	lingxingic	SOT-23-6	2,950	₹7.47 · 2,950 in stock	View
RS2G34XH6#C20611895RUNIC · SOT-23-6	RUNIC	SOT-23-6	195	₹22.07 · 195 in stock	View
