TIDatasheet (PDF)

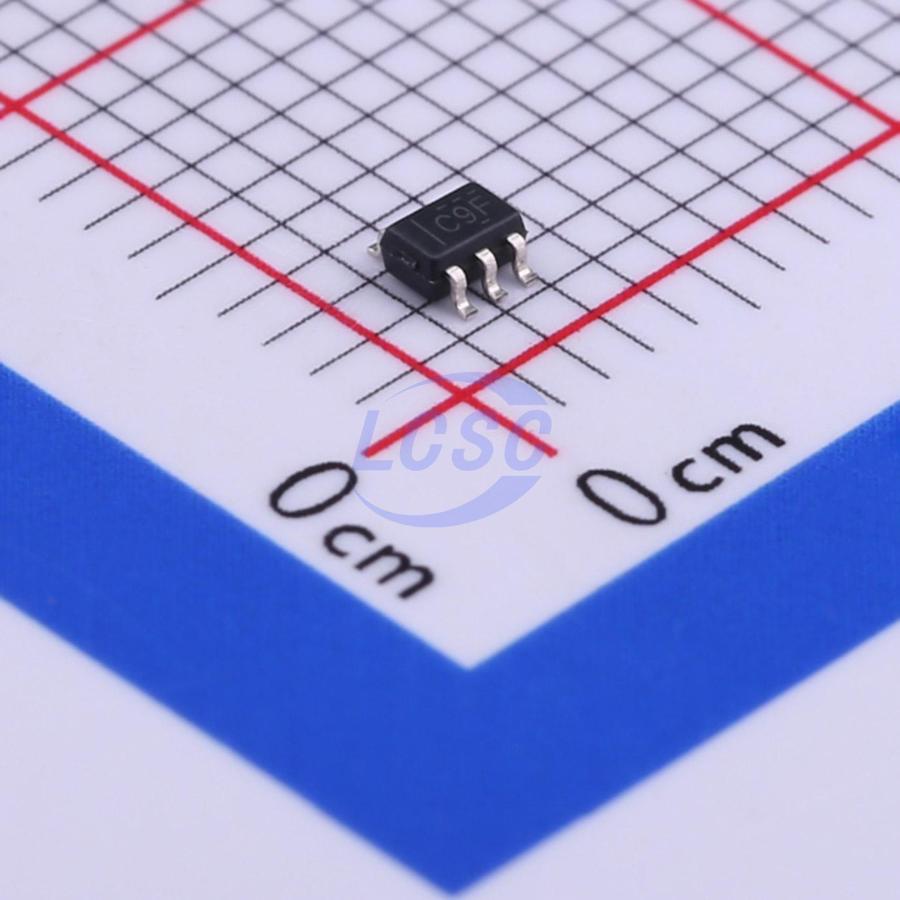

SN74LVC2G34DCKR
1.65V~5.5V 1 2 4.1ns@3.3V,50pF SC-70-6 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-6ROHS3 CompliantActive
Dual Buffer Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC2G34DCKR
- Store part #
- C14461
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,495 in stock
#C14461
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.18 | ₹105.90 |
| 50+ | ₹17.12 | ₹856.00 |
| 150+ | ₹15.08 | ₹2,262.00 |
| 500+ | ₹13.56 | ₹6,780.00 |
| 3,000+ | ₹12.34 | ₹37,020.00 |
| 6,000+ | ₹11.74 | ₹70,440.00 |
5 × ₹21.18
₹105.90
excl. GST
₹124.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G34DCKR
₹105.90 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 4.1ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
This dual buffer gate is designed for 1.65- V to 5.5- V VCC operation. The SN74LVC2G34 performs the Boolean function Y = A in positive logic. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial- power- down applications using loff. The loff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoFree™ Package
- Supports 5- V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.1 ns at 3.3 V
- Low Power Consumption, 10- μA Max lCC
- ±24- mA Output Drive at 3.3 V
- Typical VOLP (Output Ground Bounce) <0.8V at VCC = 3.3V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25℃
- loff Supports Partial- Power- Down Mode Operation
- Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 - 2000- V Human- Body Model (A114- A)
- 200- V Machine Model (A115- A)
- 1000- V Charged- Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC2G34DC(LX)#C22469910lingxingic · SOT-363 | lingxingic | SOT-363 | 910 | ₹8.19 · 910 in stock | View |
 | 74LVC2G17GW,125#C80500Nexperia · SOT-363 | Nexperia | SOT-363 | 13,700 | ₹11.38 · 13,700 in stock | View |
 | NL27WZ17DFT2G#C152467onsemi · SC-70-6(SOT-363) | onsemi | SC-70-6(SOT-363) | 30,200 | ₹9.17 · 30,200 in stock | View |
 | NC7WZ17P6X#C81546onsemi · SOT-363-6 | onsemi | SOT-363-6 | 3,330 | ₹9.86 · 3,330 in stock | View |
 | 74LVC2G34DW-7#C151323DIODES · SOT-363 | DIODES | SOT-363 | 20 | ₹27.73 · 20 in stock | View |
