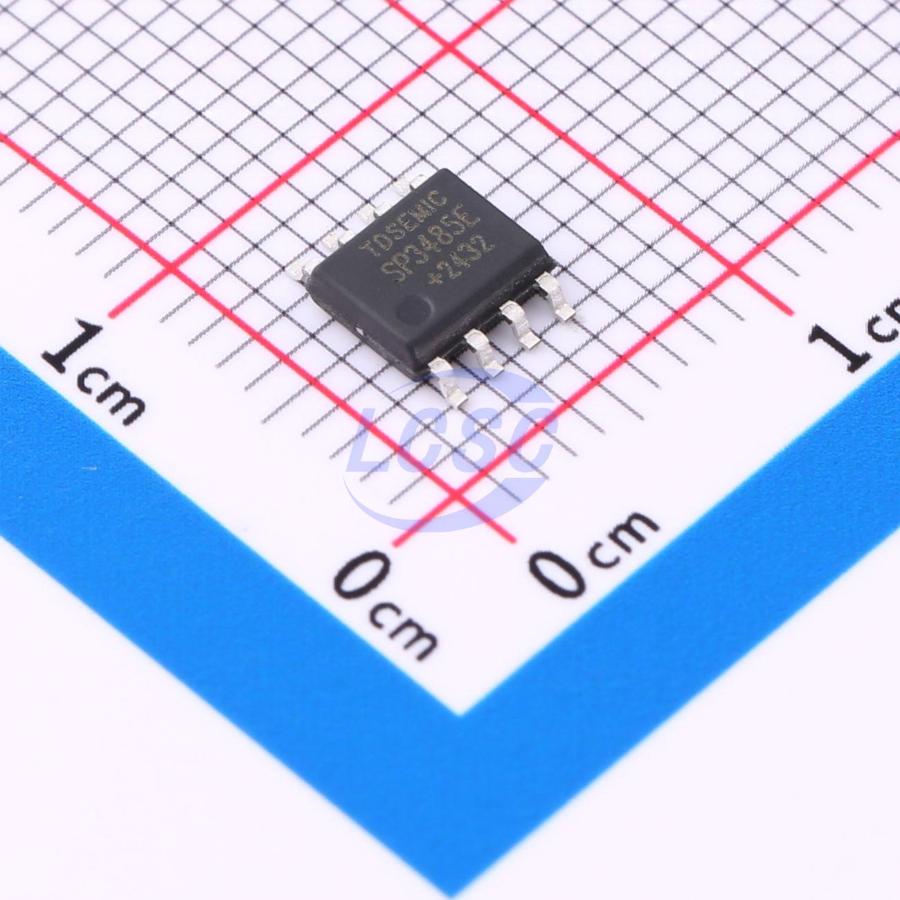

SP3485EN-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
SP3485EN 3.3V Supply, 256 Nodes, 12Mbps Half-Duplex RS485/RS422 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SP3485EN-TD
- Store part #
- C41369798
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,865 in stock
#C41369798
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.53 | ₹157.65 |
| 50+ | ₹24.66 | ₹1,233.00 |
| 150+ | ₹21.71 | ₹3,256.50 |
| 500+ | ₹18.05 | ₹9,025.00 |
| 2,500+ | ₹16.41 | ₹41,025.00 |
| 5,000+ | ₹15.43 | ₹77,150.00 |
5 × ₹31.53
₹157.65
excl. GST
₹186.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP3485EN-TD
₹157.65 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
SP3485EN is a transceiver IC for RS485 and RS422 communication systems, supporting data rates up to 10 Mbps. The device operates in half-duplex mode with driver enable and receiver enable control pins. The receiver features 1/8 unit load input impedance, allowing up to 128 loads on the bus. The product provides ESD protection; additional protection devices are recommended for hot-swap applications.
Applications
- Low-power RS485 and RS422 receiver
- Energy meters, water meters, gas meters
- Level shifting
- Access control and security systems
Key features
- Three-state output
- Half-duplex communication
- Short-circuit protection on A and B terminals
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA-TD#C41369779TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 6,070 | ₹40.33 · 6,070 in stock | View |
 | ST3485BDR-TD#C41369852TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,000 | ₹47.13 · 1,000 in stock | View |
 | ST3485EBDR-TD#C41369854TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,500 | ₹46.97 · 2,500 in stock | View |
 | ST3485ECDR-TD#C41369855TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,935 | ₹48.25 · 3,935 in stock | View |
 | MAX3485CSA-TD#C41369776TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,270 | ₹41.30 · 2,270 in stock | View |
