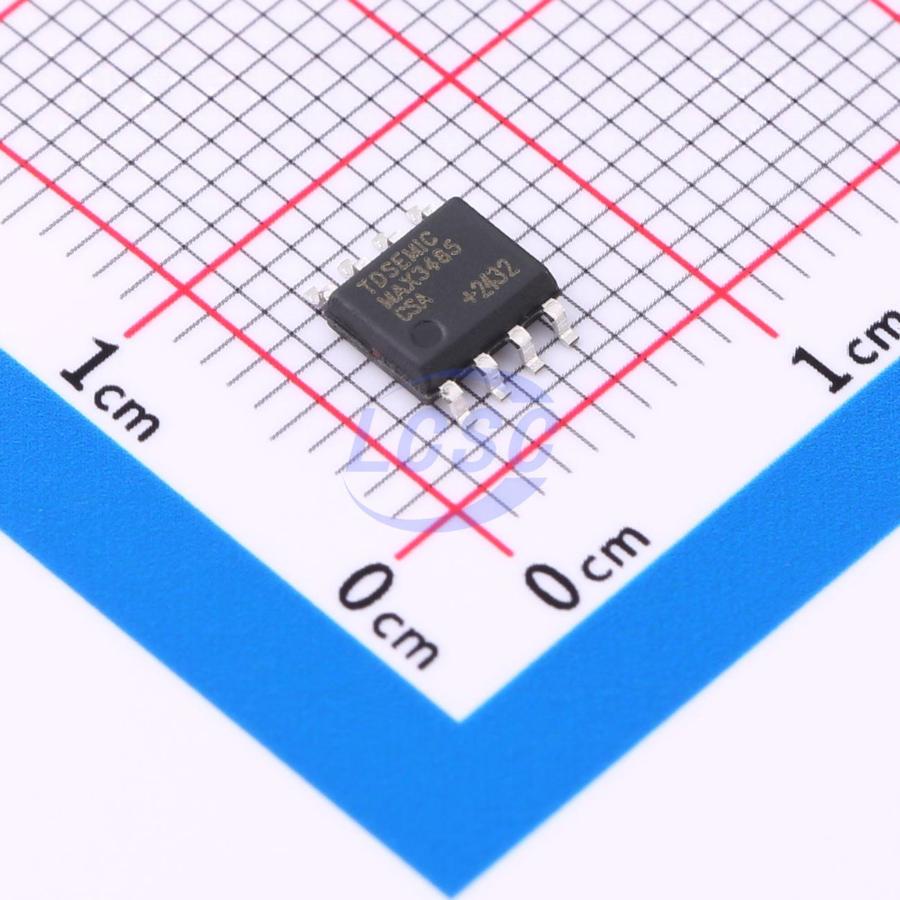

MAX3485CSA-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX3485CSA-TD
- Store part #
- C41369776
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C41369776
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.30 | ₹206.50 |
| 50+ | ₹32.44 | ₹1,622.00 |
| 150+ | ₹28.63 | ₹4,294.50 |
| 500+ | ₹23.89 | ₹11,945.00 |
| 2,500+ | ₹21.78 | ₹54,450.00 |
| 5,000+ | ₹20.51 | ₹1,02,550.00 |
5 × ₹41.30
₹206.50
excl. GST
₹243.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3485CSA-TD
₹206.50 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 160uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.182 g
Overview
MAX3485CSA is a transceiver designed for RS-485 and RS-422 communication systems, supporting data transmission and reception at rates up to 10Mbps. It is a half-duplex RS-485 interface chip featuring Driver Enable (DE) and Receiver Enable /RE control pins. The receiver is designed with 1/8 unit load input impedance, allowing up to 128 loads to be connected on the bus.
Applications
- Low-power RS485 & RS422 receiver
- Electric, water, and gas meters
- Level translation
- Access control and security systems
Key features
- Data transmission and reception rate up to 10Mbps
- RS485 interface IC for half-duplex communication, with Driver Enable (DE) and Receiver Enable/RL control pins
- Receiver designed with 1/8 unit load input impedance, supporting up to 128 loads on the bus
- ESD: 1K (add protection components if hot-swapping is required)
- Three-state output half-duplex communication
- A/B terminal short-circuit protection
- SOP8 package
