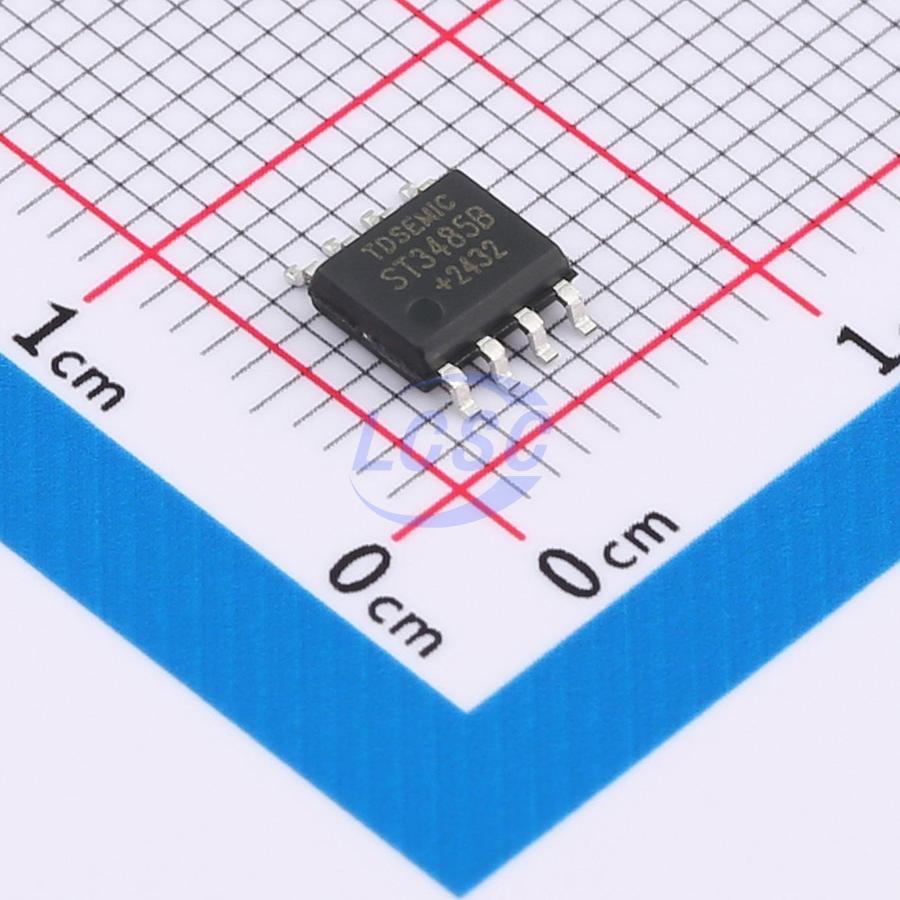

ST3485BDR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
ST3485BDR 3.3V Supply, 256 Nodes, 12Mbps Half-Duplex RS485/RS422 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST3485BDR-TD
- Store part #
- C41369852
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C41369852
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.13 | ₹235.65 |
| 50+ | ₹37.00 | ₹1,850.00 |
| 150+ | ₹32.66 | ₹4,899.00 |
| 500+ | ₹27.25 | ₹13,625.00 |
| 2,500+ | ₹24.85 | ₹62,125.00 |
| 5,000+ | ₹23.40 | ₹1,17,000.00 |
5 × ₹47.13
₹235.65
excl. GST
₹278.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST3485BDR-TD
₹235.65 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.151 g
Overview
The ST3485BDR is a high-speed transceiver for RS-485 and RS-422 communication systems, integrating one driver and one receiver with a data rate of up to 10Mbps. The device operates in half-duplex mode with dedicated driver enable and receiver enable control pins. The receiver features 1/8 unit load input impedance, allowing up to 128 loads on the bus. A slew-rate-limited driver helps reduce EMI and reflections caused by improper cable termination. Additionally, the receiver incorporates input hysteresis and input filtering to improve noise rejection on slow-rising and slow-falling differential signals, at the cost of a 25% increase in propagation delay. The device provides ESD protection; however, additional protection components are recommended for hot-swap applications.
Applications
- Low-power RS485 and RS422 receiver
- Electricity, water, and gas meters
- Level shifting
- Access control and security systems
Key features
- Three-state output
- Half-duplex communication
- A/B terminal short-circuit protection
- SOP8 package
- Hot-swap support
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA-TD#C41369779TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 6,070 | ₹40.33 · 6,070 in stock | View |
 | SP3485EN-TD#C41369798TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 5,865 | ₹31.53 · 5,865 in stock | View |
 | ST3485EBDR-TD#C41369854TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,500 | ₹46.97 · 2,500 in stock | View |
 | ST3485ECDR-TD#C41369855TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,935 | ₹48.25 · 3,935 in stock | View |
 | MAX3485CSA-TD#C41369776TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,270 | ₹41.30 · 2,270 in stock | View |
