STDatasheet (PDF)

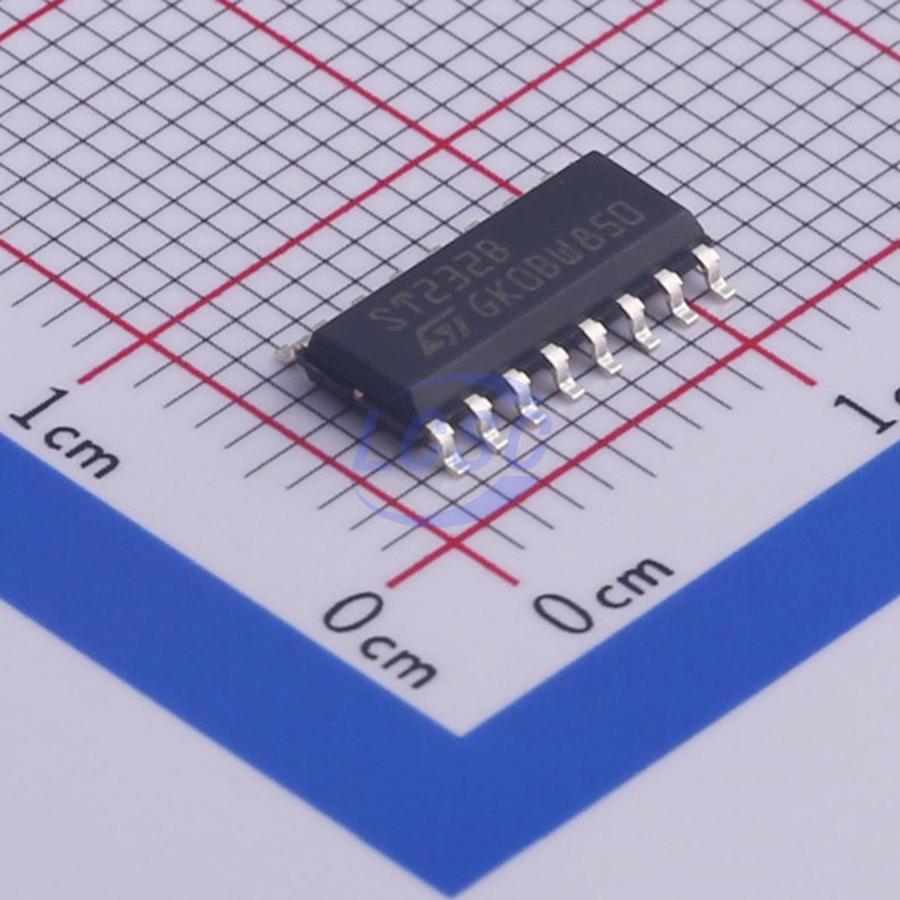

ST232BDR
4.5V~5.5V Transceiver 220Kbps SO-16 Drivers, Receivers, Transceivers RoHS
SO-16ROHS3 CompliantActive
5 V powered multi-channel RS-232 drivers and receivers
- Manufacturer
- ST
- Manufacturer part #
- ST232BDR
- Store part #
- C435945
- Package / case
- SO-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
983 in stock
#C435945
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.31 | ₹113.31 |
| 10+ | ₹95.93 | ₹959.30 |
| 30+ | ₹87.13 | ₹2,613.90 |
| 100+ | ₹78.33 | ₹7,833.00 |
| 500+ | ₹73.19 | ₹36,595.00 |
| 1,000+ | ₹70.40 | ₹70,400.00 |
1 × ₹113.31
₹113.31
excl. GST
₹133.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST232BDR
₹113.31 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 220Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.335 g
Overview
The ST232 is a 2 driver, 2 receiver device following ±12 V /TIA-232 and V.28 communication standards. It is particularly suitable for applications where ±12 V is available. The ST232 uses single 5 V power supply and only four external capacitors (0.1 µF). Typical applications are in: portable computers, low power mode
Applications
- portable computers
- low power mode
Key features
- Supply voltage range: 4.3 to 5.5 V ±7.8%
- Supply current (typ), No load, Transmitter output short - circuited (typ), Receiver input voltage range, Ta = - 40 °C to 85 °C or 0 °C to 70 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST202EBDR#C2671134ST · SO-16 | ST | SO-16 | 2,742 | ₹147.28 · 2,742 in stock | View |
 | SP232EEN(UMW)#C2904740UMW · SOP-16 | UMW | SOP-16 | 29,805 | ₹44.43 · 29,805 in stock | View |
 | MAX232ESE(UMW)#C2904791UMW · SOP-16 | UMW | SOP-16 | 6,797 | ₹57.14 · 6,797 in stock | View |
 | ADM232AARNZ(UMW)#C2904792UMW · SOP-16 | UMW | SOP-16 | 5,484 | ₹45.10 · 5,484 in stock | View |
 | ST232BDR(UMW)#C2987705UMW · SOP-16 | UMW | SOP-16 | 5,905 | ₹32.64 · 5,905 in stock | View |
