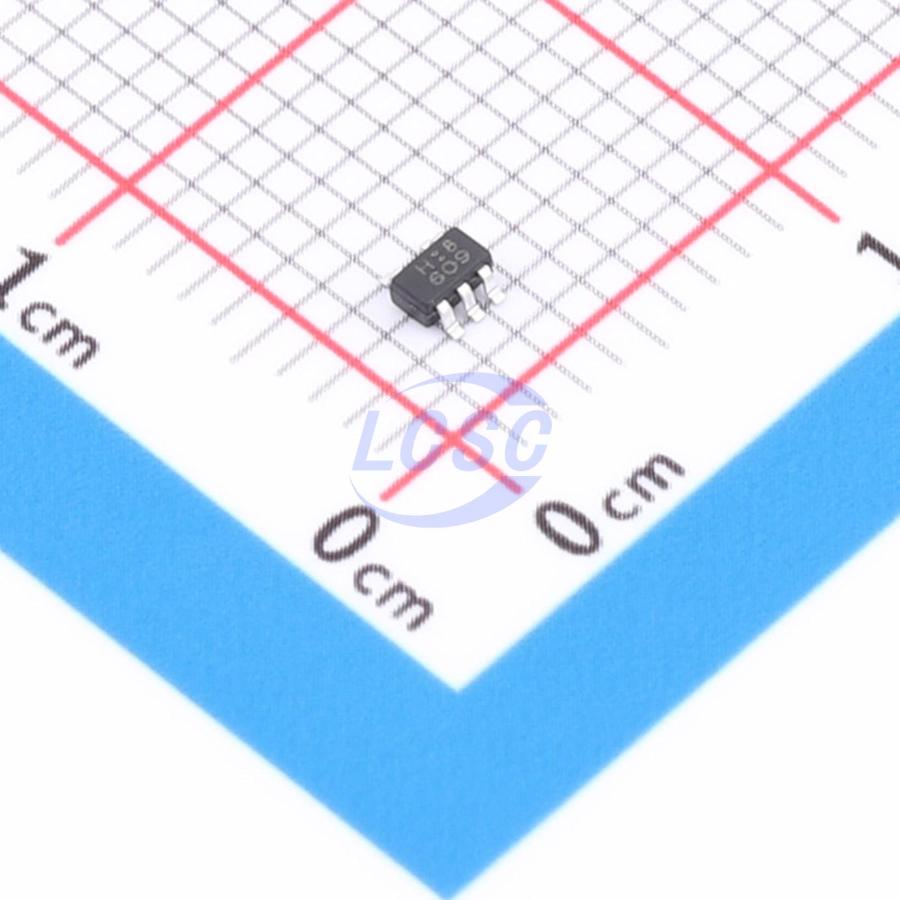

TC7SH86FU-TP

TC7SH86 is a single 2-input XOR gate. The device is designed for operation with Vcc from 2 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SH86 performs the Boolean function Y = A̅B + AB̅ in positive logic. If one input is LOW, the signal on the other input will appear at the output in its true form. If one input is HIGH, the signal on the other input will appear at the output in its complemented form. The device offers low power consumption, with a maximum propagation delay TPD of 4.0 ns at 3.3 V and a 15 pF capacitive load. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. The TC7SH86 is available in SOT23-5 and SOT353 packages.

Applications

• Active Noise Cancellation (ANC)
• Blood Pressure Monitor
• Embedded PC
• SSD: Client and Enterprise
• TV: LCD/Digital and HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard and Mouse
• Power Supply: Telecom/Server AC/DC Controller

Key features

• Wide supply voltage range: 2 V to 5.5 V
• Maximum propagation delay TpD of 4.0 ns at VCC = 3.3 V
• Low power consumption, maximum quiescent current Icc of 10 μA
• Output drive current of ±24 mA at VCC = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• Human Body Model (A114-A): 2000 V
• Charged Device Model (C101): 1000 V
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
