TOSHIBADatasheet (PDF)

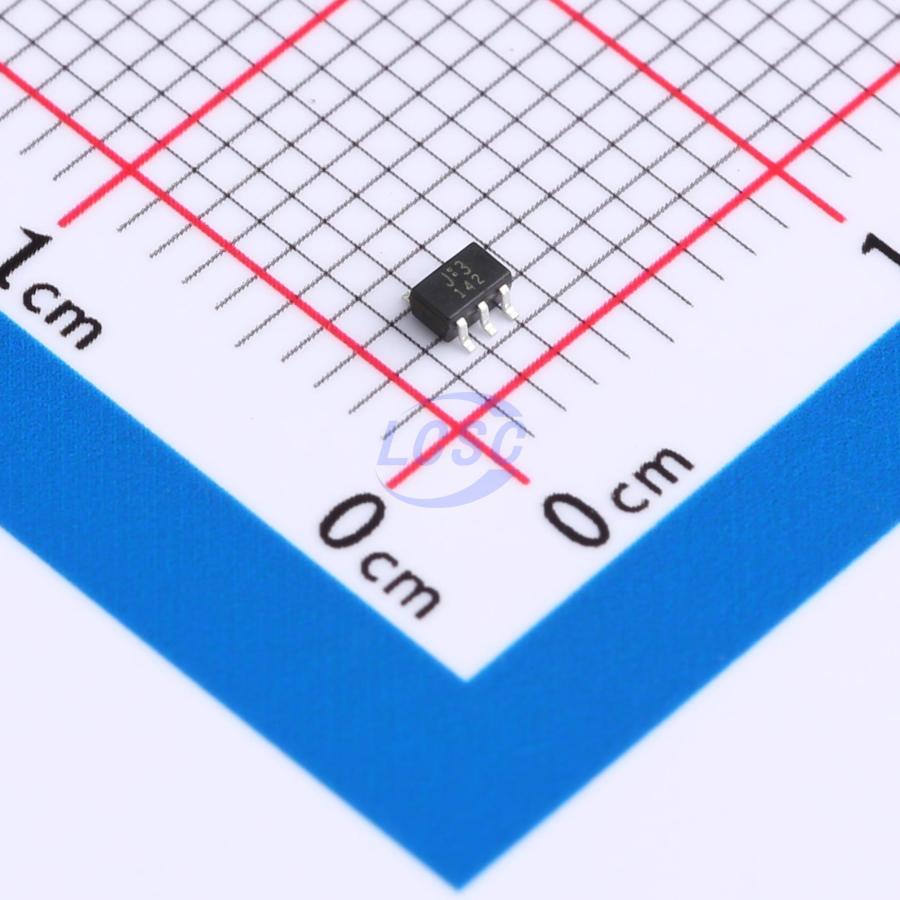

TC7SZ02FU,LJ(CT
1.8V~5.5V 3.9ns@5V,50pF 2uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
2-Input NOR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ02FU,LJ(CT
- Store part #
- C388847
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C388847
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.84 | ₹84.20 |
| 50+ | ₹13.15 | ₹657.50 |
| 150+ | ₹11.31 | ₹1,696.50 |
| 500+ | ₹9.92 | ₹4,960.00 |
| 3,000+ | ₹8.81 | ₹26,430.00 |
| 6,000+ | ₹8.26 | ₹49,560.00 |
5 × ₹16.84
₹84.20
excl. GST
₹99.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ02FU,LJ(CT
₹84.20 for 5 + GST
Specifications
- Logic Family
- TC7SZ Series
- Voltage - Supply
- 1.8V~5.5V
- Output Logic Level - Low
- 100mV;300mV;400mV;550mV
- Propagation Delay
- 3.9ns@5V,50pF
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.55V;1.9V;2.2V;2.3V;2.4V;2.9V;3.8V;4.4V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
2-Input NOR Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T_opr = -40 to 125 ℃
- High output current: ±24 mA (min) at V_CC = 3.0 V
- Super high speed operation: t_pd = 2.4 ns (typ.) at V_CC = 5.0 V, C_L = 50 pF
- Operation voltage range: V_CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V_CC
