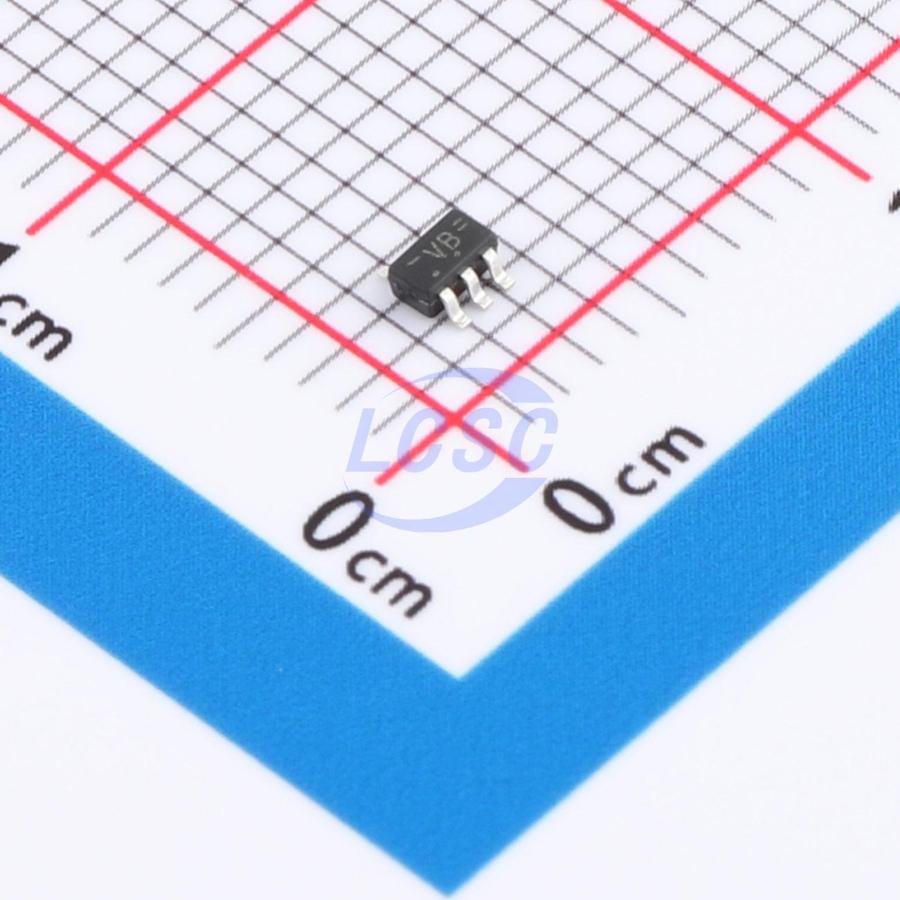

74LVC1G02SE-TP
10uA 2V~5.5V 4ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G02SE-TP
- Store part #
- C52098138
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C52098138
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G02SE-TP
₹58.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 4ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This device is a 2-input NOR gate that implements the function Y = A + B (with overbar) in positive logic. The device features a built-in power-loss protection circuit to prevent damage during power-down events.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
Key features
- Operating voltage range: 1.6V ~ 5.5V
- Low power supply current: ICC = 10μA (max)
- ±24mA output drive capability (VCC = 3.0V)
- Power-loss protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7SH02FU-TP#C54195008TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,990 | ₹6.34 · 2,990 in stock | View |
 | SN74AHC1G02DCKR-TP#C41408037TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,180 | ₹5.11 · 5,180 in stock | View |
 | NC7S02P5X-TP#C42460220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,490 | ₹6.51 · 2,490 in stock | View |
 | 74AHC1G02SE-TP#C52098182TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹6.38 · 2,980 in stock | View |
 | TP74AHC1G02C5#C52205179TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
