TOSHIBADatasheet (PDF)

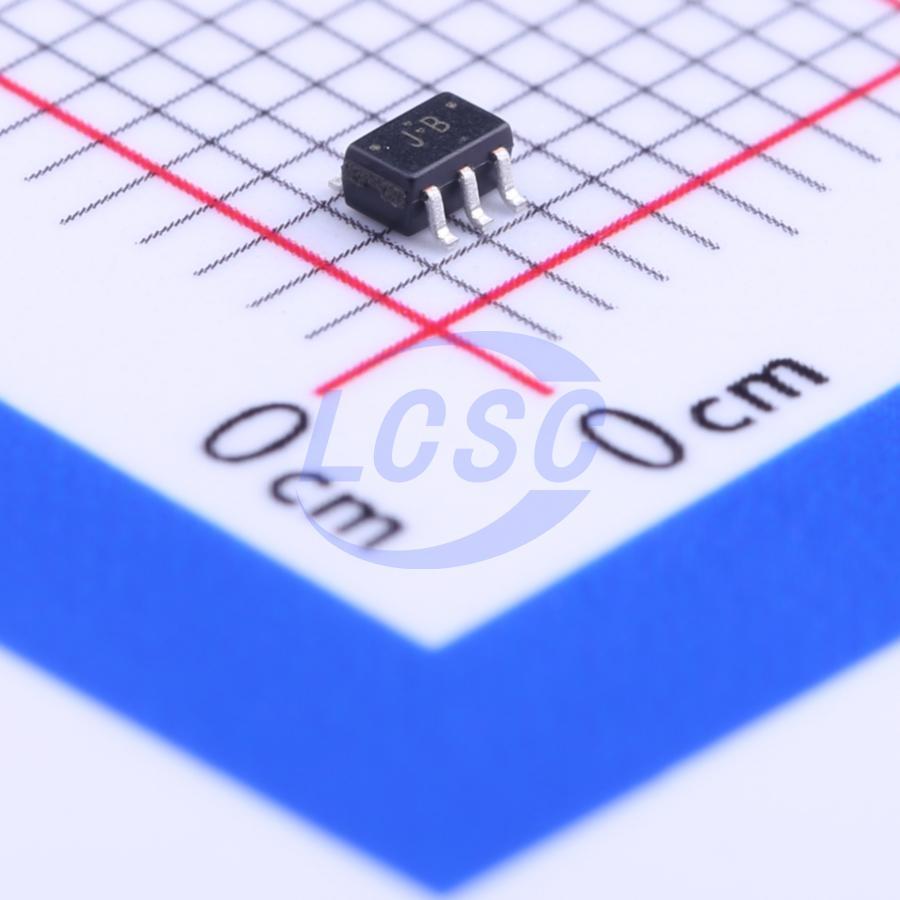

TC7SZ125FU,LJ(CT
1.8V~5.5V 1 1 2.6ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS3 CompliantActive
CMOS Digital Integrated Circuits Bus Buffer with 3-State Output
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ125FU,LJ(CT
- Store part #
- C128636
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C128636
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.27 | ₹102.70 |
| 100+ | ₹8.59 | ₹859.00 |
| 300+ | ₹7.74 | ₹2,322.00 |
| 3,000+ | ₹7.10 | ₹21,300.00 |
| 6,000+ | ₹6.60 | ₹39,600.00 |
| 9,000+ | ₹6.34 | ₹57,060.00 |
10 × ₹10.27
₹102.70
excl. GST
₹121.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ125FU,LJ(CT
₹102.70 for 10 + GST
Specifications
- Voltage - Supply
- 1.8V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 2uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- TC7SZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Bus Buffer with 3-State Output
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125°C
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 2.6 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NL17SZ126DFT2G#C97775onsemi · SC-70-5 | onsemi | SC-70-5 | 3,620 | ₹8.11 · 3,620 in stock | View |
 | NL17SZ125DFT2G#C97774onsemi · SOT-353 | onsemi | SOT-353 | 11,490 | ₹6.55 · 11,490 in stock | View |
 | 74LVC1G125GW,125#C12519Nexperia · SOT-353 | Nexperia | SOT-353 | 45,425 | ₹15.72 · 45,425 in stock | View |
 | 74LVC1G125SE-7#C151022DIODES · SOT-353 | DIODES | SOT-353 | 1,930 | ₹9.22 · 1,930 in stock | View |
 | 74LVC1G126SE-7#C460528DIODES · SOT-353 | DIODES | SOT-353 | 2,000 | ₹9.34 · 2,000 in stock | View |
