TECH PUBLICDatasheet (PDF)

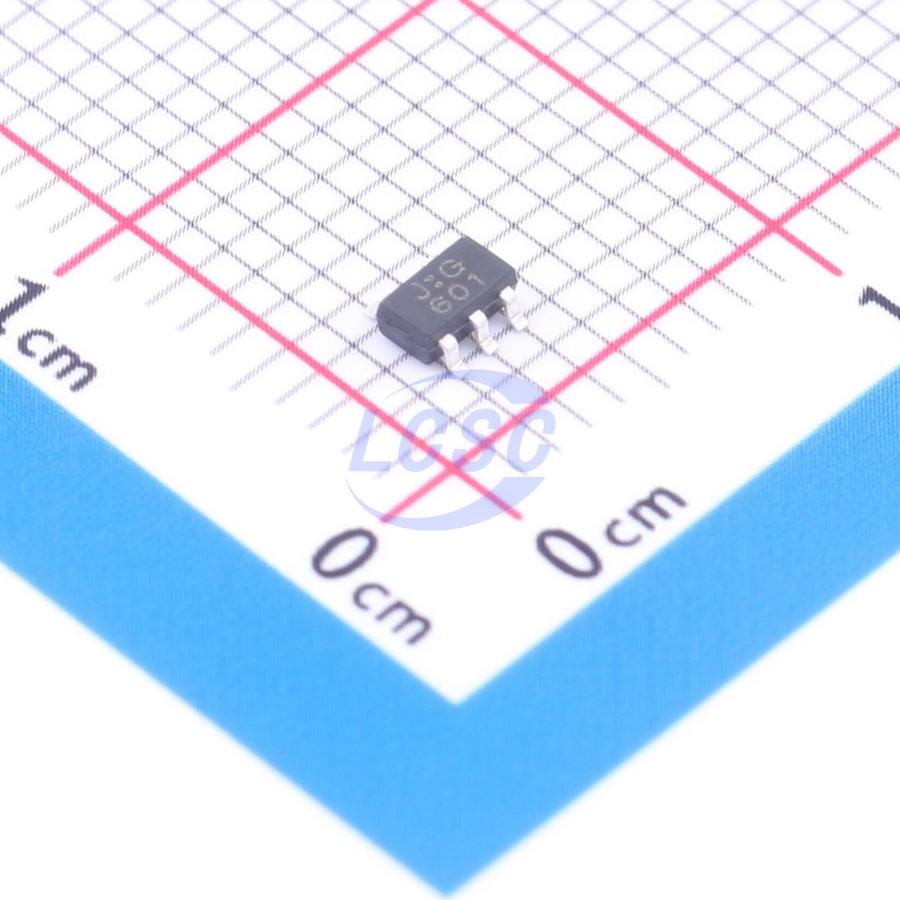

TC7SZ34F-TP
1.65V~5.5V 1 1 3.2ns@5.5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SZ34F-TP
- Store part #
- C54195047
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54195047
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.81 | ₹58.10 |
| 100+ | ₹4.58 | ₹458.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.81
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ34F-TP
₹58.10 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Series
- TC7SZ
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.2ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TC7SZ34 is a single buffer providing the function Y = A. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Portable audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants (PDAs)
- Telecom/server power supplies, AC/DC power supplies: single controller: analog and digital
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeding JESD 22 standard
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G34S5#C48586717TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,390 | ₹6.19 · 2,390 in stock | View |
 | NC7SZ125M5X-TP#C42460214TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,330 | ₹7.57 · 1,330 in stock | View |
 | TC7SZ125F-TP#C54195037TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,930 | ₹5.81 · 2,930 in stock | View |
 | TC7SZ126F-TP#C54195039TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹5.89 · 2,990 in stock | View |
 | TC7SZ17F-TP#C54195043TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
