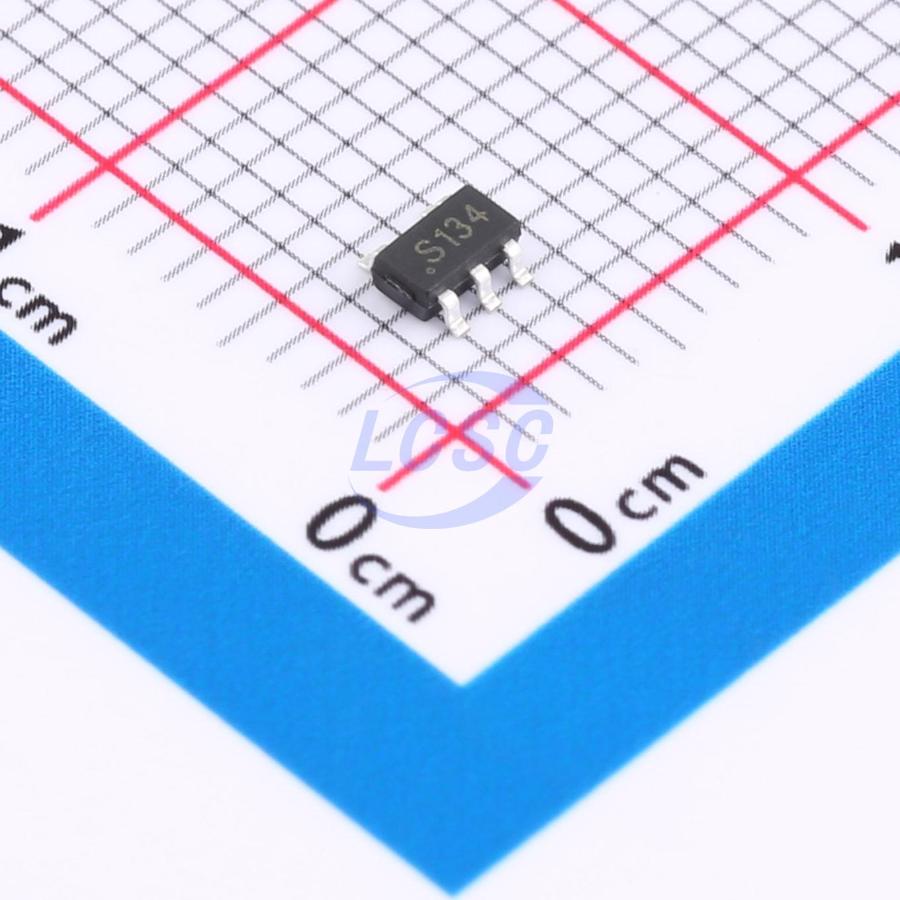

TP74LVC1G34S5
Buffer 1 Element SOT-23-5
SOT-23-5RoHSActive
IC BUFFER 1.65V~5.5V SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G34S5
- Store part #
- C48586717
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C48586717
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.19 | ₹61.90 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.22 | ₹1,266.00 |
| 3,000+ | ₹3.73 | ₹11,190.00 |
| 6,000+ | ₹3.33 | ₹19,980.00 |
| 9,000+ | ₹3.14 | ₹28,260.00 |
10 × ₹6.19
₹61.90
excl. GST
₹73.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G34S5
₹61.90 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.2ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TP74LVC1G34 is a single buffer with the function Y = A. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- AV receiver
- Audio docking station
- Blu-ray player & home theater
- Embedded PC
- Personal digital assistant
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Input tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Charged Device Model: 1000V (C101)
