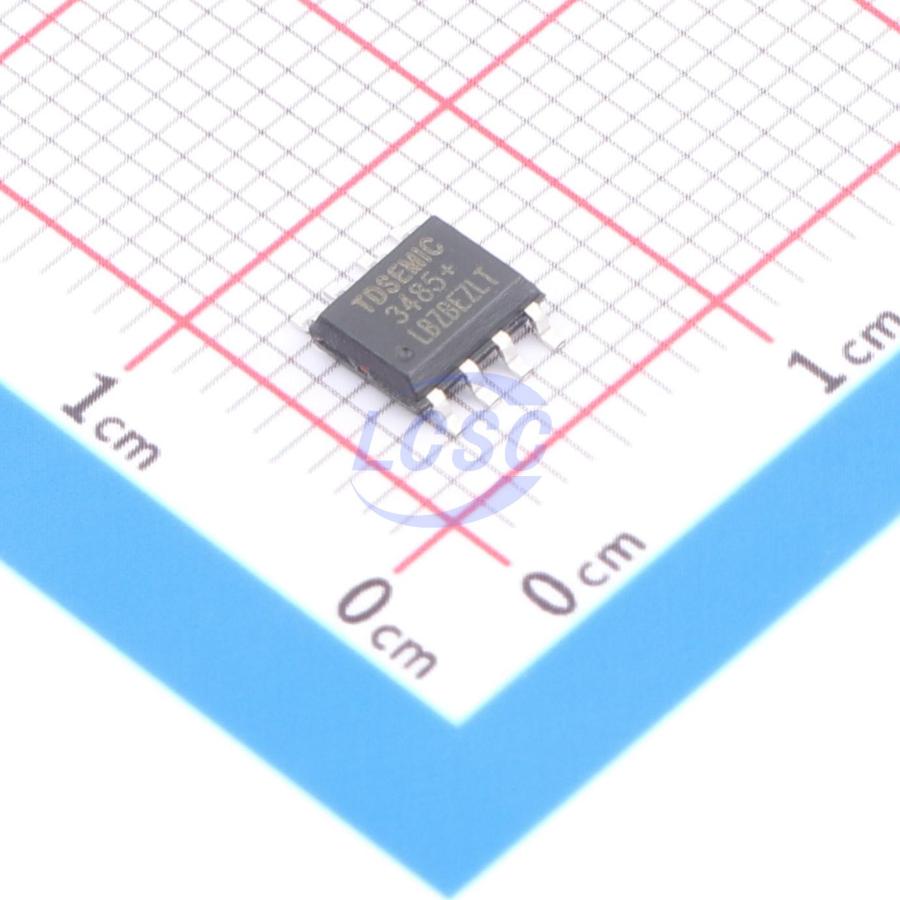

TD3485DR
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- TDSEMIC
- Manufacturer part #
- TD3485DR
- Store part #
- C46614323
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C46614323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.91 | ₹229.55 |
| 50+ | ₹36.05 | ₹1,802.50 |
| 150+ | ₹31.83 | ₹4,774.50 |
| 500+ | ₹26.55 | ₹13,275.00 |
| 2,500+ | ₹24.21 | ₹60,525.00 |
| 4,000+ | ₹22.80 | ₹91,200.00 |
5 × ₹45.91
₹229.55
excl. GST
₹270.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TD3485DR
₹229.55 for 5 + GST
Specifications
- Voltage - Supply
- 2.8V~4.5V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 520uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
TD3485DR is a transceiver IC for RS485 and RS422 communication systems, supporting data transmission and reception rates up to 10Mbps. The chip adopts a half-duplex RS485 interface with Driver Enable (DE) and Receiver Enable (/RE) control pins. Its receiver features 1/8 unit load input impedance, allowing up to 128 loads on the bus. ESD protection rating is 1kV (for hot-swap applications, additional external protection devices are recommended).
Applications
- Low-power RS485 & RS422 receiver
- Electric, water, and gas meters
- Level translation
- Access control and security systems
Key features
- Three-state output
- Half-duplex communication
- A, B terminal short-circuit protection
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485EESA-TD#C41369778TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,200 | ₹61.28 · 2,200 in stock | View |
 | SP3485ECN-TD#C41369796TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,320 | ₹34.81 · 2,320 in stock | View |
 | MAX3485CSA-TD#C41369776TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,270 | ₹41.30 · 2,270 in stock | View |
 | MAX3485ESA-TD#C41369779TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 6,070 | ₹40.33 · 6,070 in stock | View |
 | SP3485EN-TD#C41369798TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 5,865 | ₹31.53 · 5,865 in stock | View |
