UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.71
17,51,550 in stock
InfineonDatasheet (PDF)

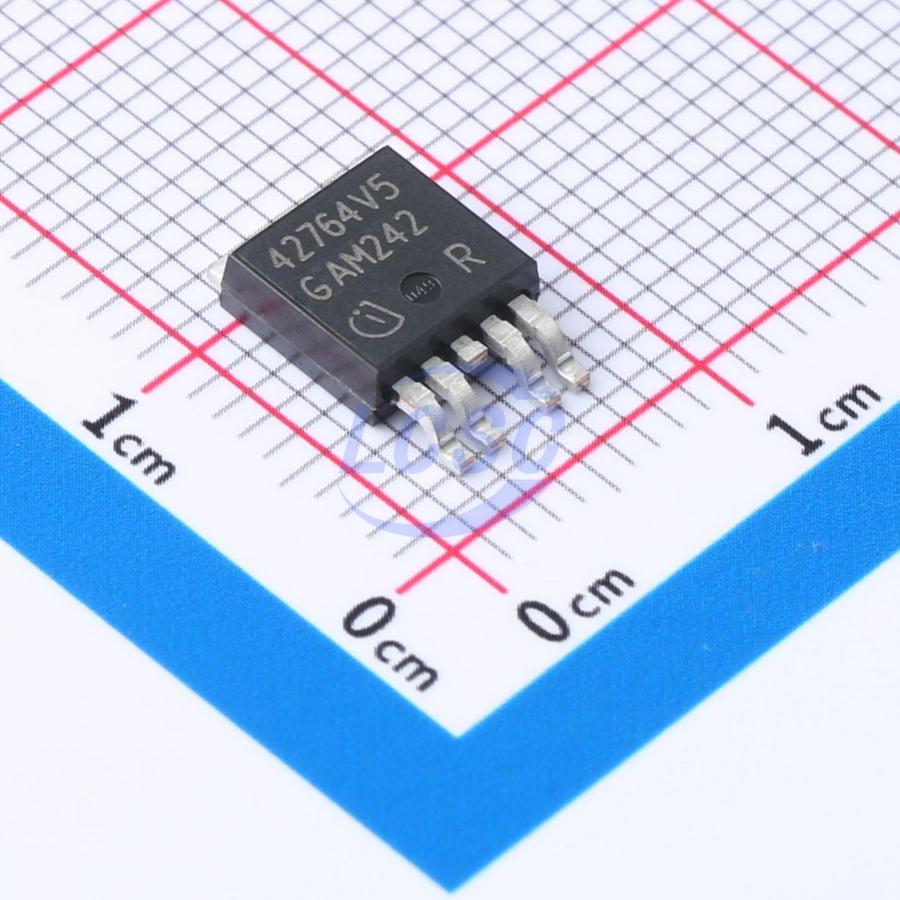

TLE42764DV50ATMA1
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA TO-252-4
TO-252-4ROHS3 CompliantActive
Low-dropout linear voltage regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE42764DV50ATMA1
- Store part #
- C3752213
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C3752213
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.85 | ₹157.85 |
| 10+ | ₹130.53 | ₹1,305.30 |
| 30+ | ₹115.56 | ₹3,466.80 |
| 100+ | ₹98.44 | ₹9,844.00 |
| 500+ | ₹90.85 | ₹45,425.00 |
| 1,000+ | ₹87.60 | ₹87,600.00 |
1 × ₹157.85
₹157.85
excl. GST
₹186.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE42764DV50ATMA1
₹157.85 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 220uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Reverse polarity voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.453 g
Overview
The TLE42764 is a monolithic integrated low - dropout voltage regulator for load currents up to 400 mA. An input voltage up to 40V is regulated to an adjustable or 5 - V fixed voltage with a precision of ±2%. The device is designed for the harsh environment of automotive applications. Therefore, it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit. The TLE42764 can be also used in all other applications requiring a stabilized voltage between 2.5V and 20V. Due to its very low quiescent current, the TLE42764 is dedicated for use in applications permanently connected to V_BAT. In addition, the device can be switched off via the enable input, reducing the current consumption to less than 10μA.
Applications
- General automotive applications.
Key features
- Very low current consumption
- Adjustable and 5 - V fixed output voltage ±2%
- Output current up to 400 mA
- Enable input
- Very low dropout voltage
- Output current limitation
- Overtemperature shutdown
- Reverse polarity protection
- Wide temperature range from - 40°C up to 150°C
- Green Product (RoHS compliant)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE4675D#C539765Infineon · TO-252-4 | Infineon | TO-252-4 | 41 | ₹293.14 · 41 in stock | View |
 | TLE4275QKVURQ1#C781809TI · TO-252-4 | TI | TO-252-4 | 4,825 | ₹146.81 · 4,825 in stock | View |
 | TLE42754D#C90364Infineon · TO-252-4 | Infineon | TO-252-4 | 6,505 | ₹92.83 · 6,505 in stock | View |
 | TLE4270-2D#C539701Infineon · TO-252-4 | Infineon | TO-252-4 | 287 | ₹341.12 · 287 in stock | View |
 | TPS7B8650QKVURQ1#C3744720TI · TO-252-4 | TI | TO-252-4 | 15 | ₹203.82 · 15 in stock | View |
