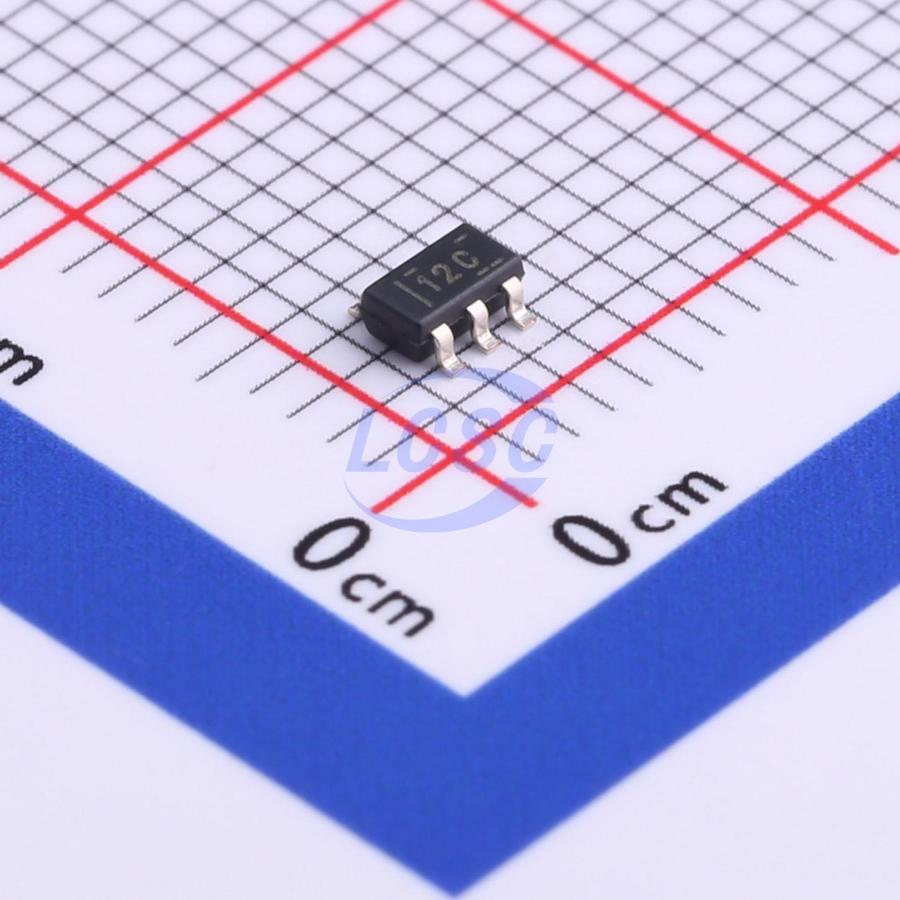

TLV316IDBVR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS3 CompliantActive

10-MHz, Rail-to-Rail Input/Output, Low-Voltage, CMOS Operational Amplifiers

Manufacturer: TI
Manufacturer part #: TLV316IDBVR
Store part #: C575578
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,542 in stock

#C575578

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹84.16	₹84.16
10+	₹66.76	₹667.60
30+	₹59.36	₹1,780.80
100+	₹50.23	₹5,023.00
500+	₹38.71	₹19,355.00
1,000+	₹36.32	₹36,320.00

Quantity (min 1)

1 × ₹84.16

₹84.16

excl. GST

₹99.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV316IDBVR

₹84.16 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 750uV
Slew Rate: 6V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 400uA
Gain Bandwidth Product: 10MHz
Features: EMI filtering/RF suppression;Built-in compensation;ESD protection
Input Voltage Noise Density: 12nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.058 g

Overview

The TLV316 (single), TLV2316 (dual), and TLV4316 (quad) devices form a low-power, general-purpose op amp family. These devices feature rail-to-rail input and output swing, combined with low quiescent current (typical 400μA per channel), wide bandwidth of 10MHz, and ultra-low noise (12nV/√Hz at 1kHz), making them highly attractive for battery-powered applications that require a good balance between cost and performance. Low input bias current enables the use of these op amps in applications with source impedances up to the megaohm range. The TLVx316 is designed for robustness and ease of use by circuit designers. The device features unity-gain stable integrated RFI/EMI rejection filters, no phase inversion under overdrive conditions, and high ESD protection (4kV HBM). These devices are optimized for low-voltage operation from 1.8V (±0.9V) to 5.5V (±2.75V). These latest additions to the low-voltage CMOS op amp portfolio complement the TLVx313 and TLVx314 families, offering users a wide selection of bandwidth, noise, and power options to meet the needs of a broad range of applications.

Applications

Battery-powered instruments
Consumer, industrial, and medical applications
Laptops, portable media players
Sensor signal conditioning
Barcode scanners
Active filters
Audio
