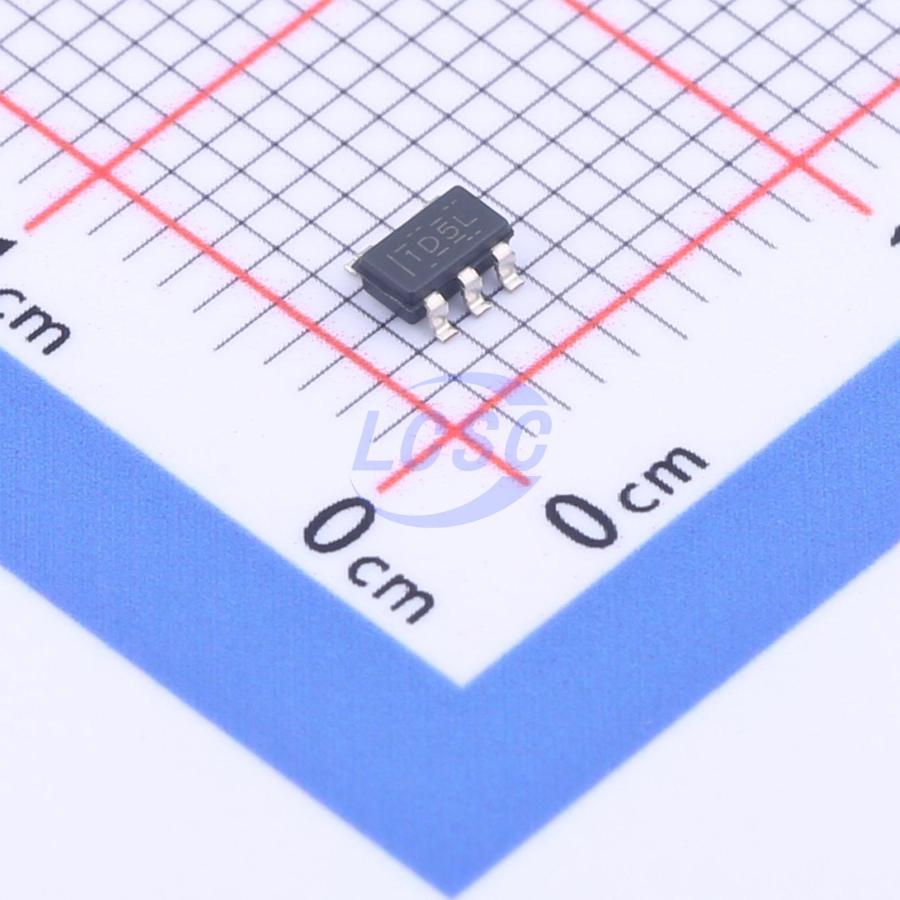

TLV8541DBVR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS3 CompliantActive

500nA RRIO nano-power operational amplifier

Manufacturer: TI
Manufacturer part #: TLV8541DBVR
Store part #: C2877820
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,955 in stock

#C2877820

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹53.57	₹267.85
50+	₹42.64	₹2,132.00
150+	₹37.96	₹5,694.00
500+	₹31.83	₹15,915.00
3,000+	₹29.23	₹87,690.00
6,000+	₹27.66	₹1,65,960.00

Quantity (min 5, multiples of 5)

5 × ₹53.57

₹267.85

excl. GST

₹316.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV8541DBVR

₹267.85 for 5 + GST

Specifications

Output Current: 15mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.1mV
Slew Rate: 3.5V/ms
Input Offset Current(Ios): 0.1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 0.1pA
Input Offset Voltage Drift(Vos TC): 800nV/℃
Quiescent Current: 500nA
Gain Bandwidth Product: 8kHz
Features: Built-in compensation;EMI filtering/RF suppression
Input Voltage Noise Density: 264nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.7V~3.6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

The TLV854x ultra-low-power operational amplifiers are suitable for cost-optimized sensing applications in wireless and low-power wired devices. The TLV854x series of operational amplifiers can minimize the power consumption of devices such as motion detection security systems (e.g., microwave and PIR motion sensing systems) that place a high emphasis on battery life. The complementary metal-oxide-semiconductor (CMOS) input stage of such devices is carefully designed to achieve ultra-low femtoampere offset current, thereby reducing IBIAS and IOS errors that would otherwise affect sensitive applications. Examples of such applications include transimpedance amplifier (TIA) configurations with megaohm feedback resistors and high source impedance sensing applications. Additionally, the built-in EMI protection reduces the device's sensitivity to unwanted RF signals emitted by mobile phones, WiFi, radio transmitters, and tag readers.

Applications

Motion detector using PIR sensor SNAA301
Motion detector using microwave sensor
Gas detector
Ionization smoke alarm
Temperature control device
Remote sensor, IoT
RFID reader and tag
Portable medical device
Blood glucose monitoring

Key features

Nanoamp supply current: 500nA/channel
Offset voltage: 3.1mV (maximum)
TcVos: 0.8μV/°C
Gain bandwidth: 8kHz
Unity-gain stable
Low input bias current: 100fA
Wide supply voltage range: 1.7V to 3.6V
Rail-to-rail input and output (RRIO)
Temperature range: -40°C to +125°C
Industry-standard packages: quad 14-pin TSSOP and SOIC, dual 8-pin SOIC, single 5-pin SOT-23, leadless package (dual 8-pin X2QFN)
