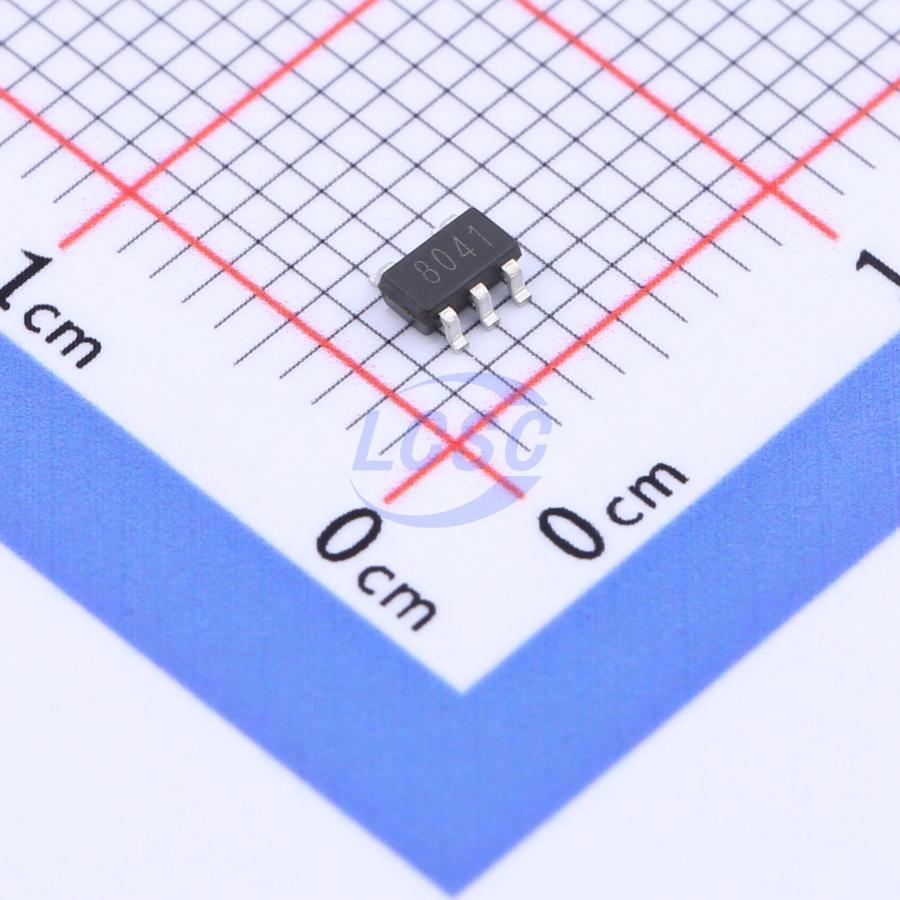

TPV8041S5
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5RoHSActive
Single Rail-to-Rail I/O Operational Amplifier
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPV8041S5
- Store part #
- C2987045
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C2987045
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.23 | ₹44.23 |
| 10+ | ₹38.78 | ₹387.80 |
| 30+ | ₹36.67 | ₹1,100.10 |
| 100+ | ₹33.75 | ₹3,375.00 |
| 500+ | ₹28.92 | ₹14,460.00 |
| 1,000+ | ₹28.30 | ₹28,300.00 |
1 × ₹44.23
₹44.23
excl. GST
₹52.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPV8041S5
₹44.23 for 1 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 6V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Input Offset Voltage Drift(Vos TC)
- 2.5uV/℃
- Quiescent Current
- 700nA
- Gain Bandwidth Product
- 14.5kHz
- Features
- EMI filtering/RF suppression;Enable/shutdown function
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
Applications
- Battery-Powered Instruments
- Portable Devices
- Medical Instruments
- Test Equipment
- Low-Power Sensor Signal Conditioning
- ASIC Input or Output Amplifier
- Sensor Interface
- Smoke Detectors
- Audio Output
- Piezoelectric Transducer Amplifier
Key features
- Quiescent Current: 700nA per Amplifier (Typ.)
- Low Offset Voltage: 3mV (Max.)
- Low Offset Drift: 2.5μV/°C, max
- Gain-Bandwidth: 14.5kHz (Typ.)
- Single-Supply
- Supply Voltage: 1.4V to 5.5V
- Rail-to-Rail Input / Output
- Low Input Bias Current: 1pA (Typ.)
- Operating Temperature: -40°C to +125°C
- Embedded RF Anti-EMI Filter
- Available in SOT-25 and SC70-5 packages
