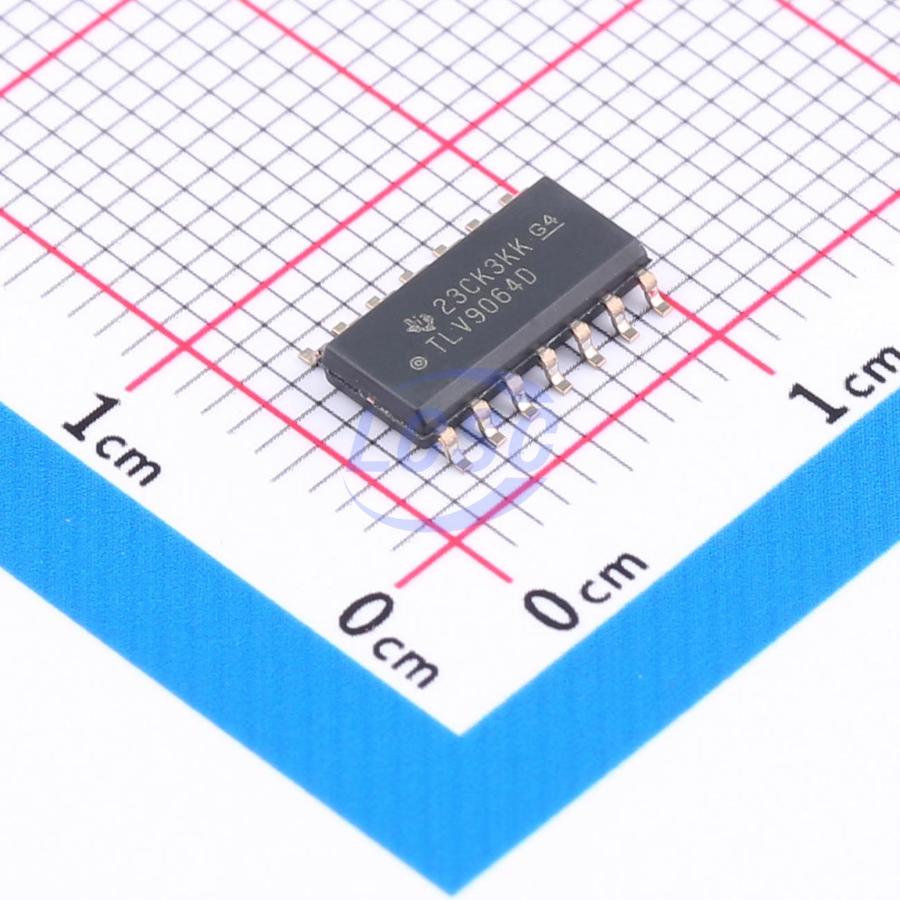

TLV9064IDR

The TLV9061 (single), TLV9062 (dual), and TLV9064 (quad) are single-, dual-, and quad- low-voltage (1.8 V to 5.5 V) operational amplifiers (op amps) with railto-rail input- and output-swing capabilities. These devices are highly cost-effective solutions for applications where low-voltage operation, a small footprint, and high capacitive load drive are required. Although the capacitive load drive of the TLV906x is 100 pF, the resistive open-loop output impedance makes stabilizing with higher capacitive loads simpler. These op amps are designed specifically for low-voltage operation (1.8 V to 5.5 V) with performance specifications similar to the OPAx316 and TLVx316 devices.

Applications

• E-Bikes
• Smoke Detectors
• HVAC: Heating, Ventilating, and Air Conditioning
• Motor Control: AC Induction
• Refrigerators
• Wearable Devices
• Laptop Computers
• Washing Machines
• Sensor Signal Conditioning
• Power Modules
• Barcode Scanners
• Active Filters
• Low-Side Current Sensing

Key features

• Rail-to-Rail Input and Output
• Low Input Offset Voltage: ±0.3 mV
• Unity-Gain Bandwidth: 10 MHz
• Low Broadband Noise: 10 nV/√Hz
• Low Input Bias Current: 0.5 pA
• Low Quiescent Current: 538 μA
• Unity-Gain Stable
• Internal RFI and EMI Filter
• Operational at Supply Voltages as Low as 1.8 V
• Easier to Stabilize With Higher Capacitive Load Due to Resistive Open-Loop Output Impedance
• Shutdown Version: TLV906xS
• Extended Temperature Range: -40°C to +125°C
