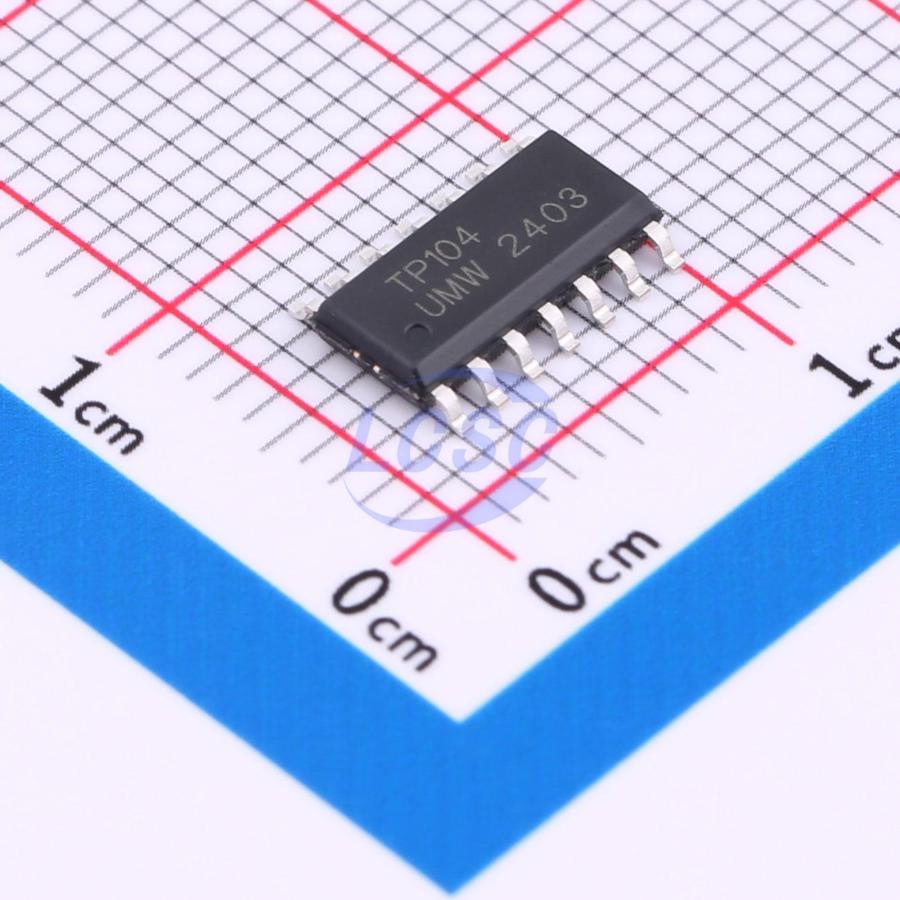

TP10-4-SR(UMW)

The TP10 series are dual and quad rail-to-rail input/output op-amps fabricated in CMOS process, featuring low offset, low power consumption, and stable high-frequency response. The series offers 6MHz bandwidth, 4.5V/μs slew rate, and low distortion, with a quiescent current of only 600μA per amplifier. The input common-mode voltage range extends 300mV beyond the supply rails, and the output achieves rail-to-rail swing. The TP10 series serves as a drop-in replacement for many commercial op-amps to reduce power consumption and improve input/output range and performance. This combination of features makes it an ideal choice for motor control, portable audio amplification, audio interfaces, and other consumer audio applications. The op-amp is highly stable and capable of driving large capacitive loads commonly found in LCDs. The rail-to-rail swing capability of both input and output enables designers to buffer CMOS DACs, ASICs, or other wide-output-swing devices in single-supply systems.

Applications

• E-bikes
• Motor control
• Portable audio devices

Key features

• Supply voltage: 2.7V to 5.5V
• Low supply current: 600μA per channel
• Rail-to-rail input and output
• Bandwidth: 6 MHz
• Slew rate: 4.5V/μs
• Excellent EMI rejection performance
• Offset voltage: ±3mV max
• Offset voltage drift: 1μV/℃
• Low noise: 19nV/√Hz at 1kHz
• High output drive capability: 100mA
• Operating temperature range: -40℃ to 125℃
