UMW

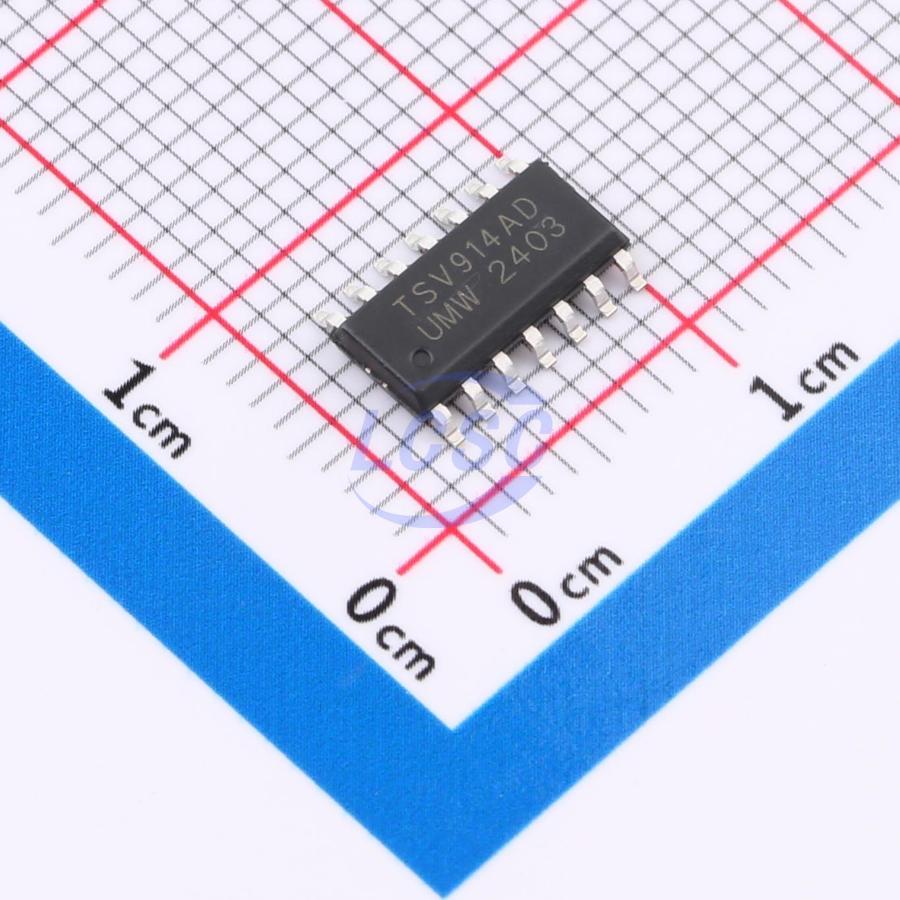

TSV914AIDR(UMW)

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-14

SOP-14ROHS CompliantActive

TSV91x Rail-to-Rail Input/Output, 8MHz Operational Amplifier

Manufacturer: UMW
Manufacturer part #: TSV914AIDR(UMW)
Store part #: C25168924
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,300 in stock

#C25168924

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹44.03	₹44.03
10+	₹38.45	₹384.50
30+	₹36.09	₹1,082.70
100+	₹33.08	₹3,308.00
500+	₹31.79	₹15,895.00
1,000+	₹30.93	₹30,930.00

Quantity (min 1)

1 × ₹44.03

₹44.03

excl. GST

₹51.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TSV914AIDR(UMW)

₹44.03 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 4
Vos - Input Offset Voltage: 1.5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 0.05pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 103dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 500nV/℃
Gain Bandwidth Product: 8MHz
Quiescent Current: 550uA
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 18nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.288 g

Overview

The TSV91x series single, dual, and quad op-amps are designed for general-purpose applications. These devices feature rail-to-rail input/output swing, wide bandwidth (8MHz), and low offset voltage (typical 0.3mV). Unity-gain stable with ultralow input bias current, they are suited for high source impedance applications. The low input bias current also makes them ideal for sensor interfaces, battery-powered and portable applications, and active filtering. The TSV91x features a robust design for ease of use by circuit designers. Key features include an integrated RFI-EMI rejection filter, unity-gain stability, no phase reversal under overdrive conditions, and high ESD protection (4kV HBM).

Applications

Battery-powered applications
Motor control
Power modules
HVAC
Medical instruments
Active filters
Sensor signal conditioning
Audio receivers
Automotive infotainment systems

Key features

Rail-to-rail input/output
Low noise: 18 nV/√Hz at 1kHz
Low power consumption: 550 µA typical
High gain bandwidth: 8MHz
Operating supply voltage range: 2.5V to 5.5V
Low input bias current: 1pA typical
Low input offset voltage: 1.9 mV maximum
Low offset voltage drift: ±0.5 µV/°C typical
ESD protection (Human Body Model)
Extended temperature range: -40°C to +125°C
