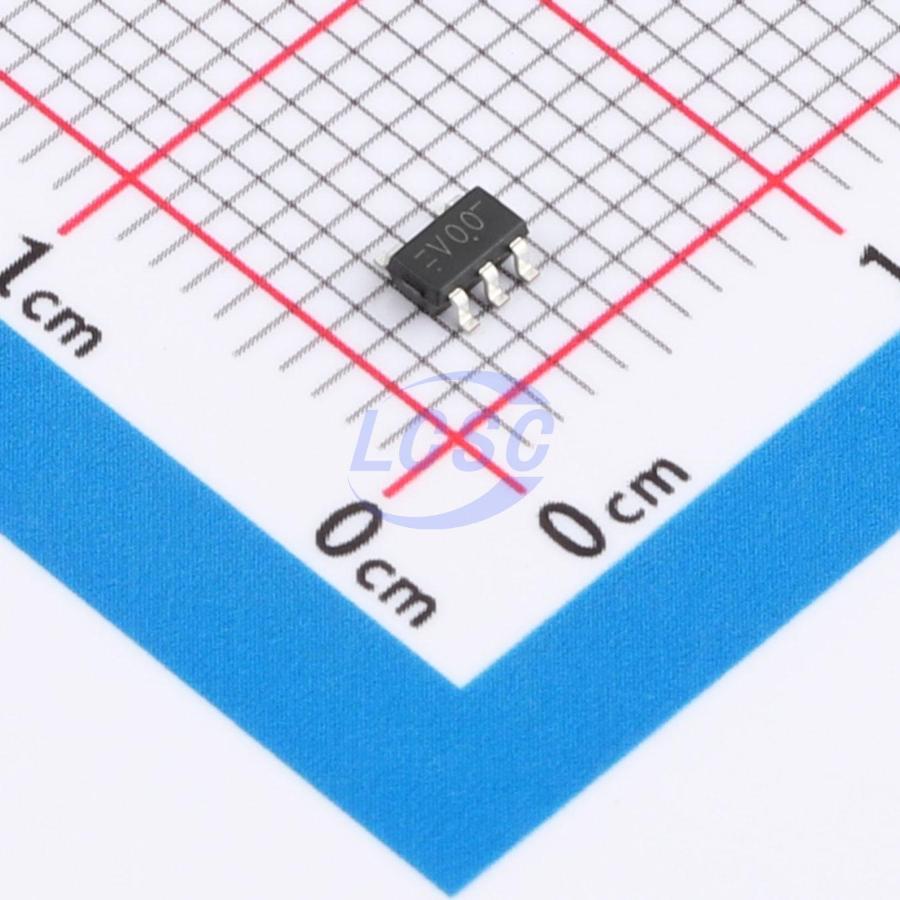

74LVC1G00W5-TP
10uA 1.65V~5.5V 4.4ns@5V,15pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G00W5-TP
- Store part #
- C52098152
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C52098152
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G00W5-TP
₹58.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 4.4ns@5V,15pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The 74LVC1G00 is a 2-input NAND gate implementing the function Y = A̅·B̅ or Y = A̅ + B̅ in positive logic. The device features integrated power-off protection circuitry to prevent damage during power-down conditions.
Applications
- Voltage level translation
- General-purpose logic circuits
- Power-off signal isolation
Key features
- Operating voltage range: 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeds JESD 22 standard
- Human body model (A114-A): 2000V
- Charged device model (C101): 1000V
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G132S5#C46472793TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,440 | ₹9.38 · 3,440 in stock | View |
 | NC7SZ00M5X#C19829499TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,140 | ₹7.03 · 1,140 in stock | View |
 | 74LVC1G00GV#C19829588TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,680 | ₹6.11 · 2,680 in stock | View |
 | SN74LVC1G00DBVR#C19829657TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,760 | ₹5.81 · 6,760 in stock | View |
 | TP74LVC1G00S5#C42460123TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,930 | ₹7.12 · 2,930 in stock | View |
