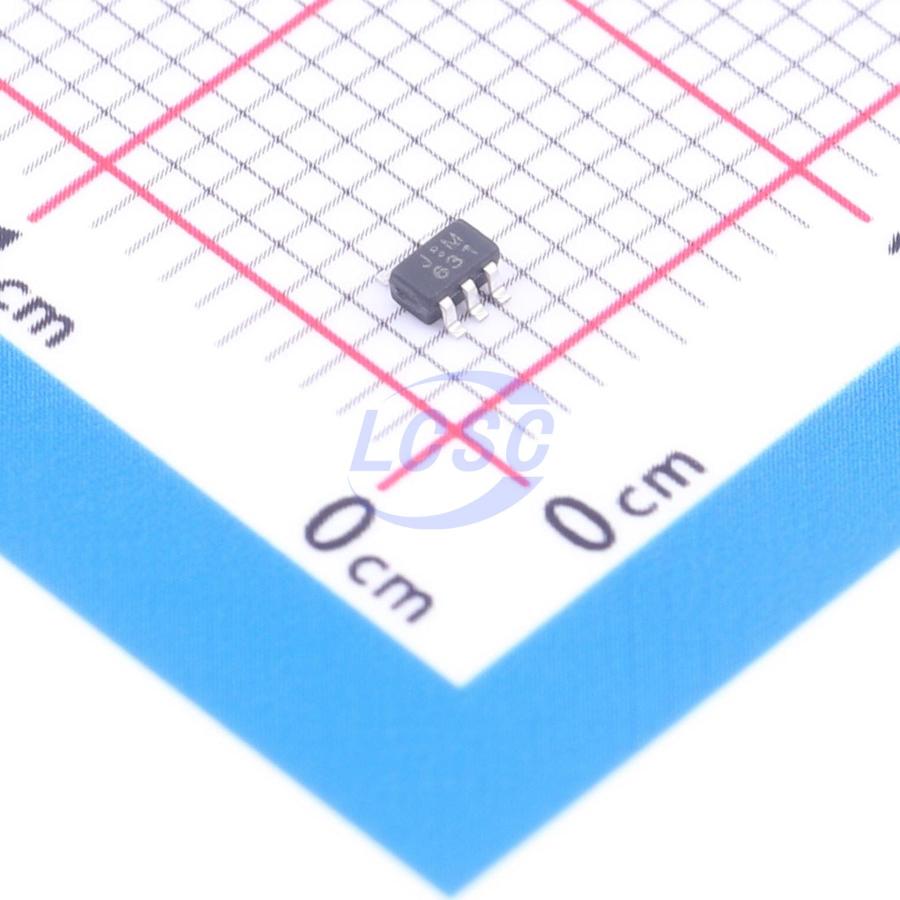

TC7SZ07FU-TP

TC7SZ07 is a single buffer/driver. The device is designed for operation with Vcc from 1.65 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SZ07 has open-drain outputs that can be connected with other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Maximum sink current is 32 mA. Schmitt-trigger action on all inputs allows the circuit to tolerate slower input rise and fall times. This CMOS device provides high output drive capability while maintaining low quiescent power consumption over a wide Vcc operating range. The TC7SZ07 is available in SOT23-5 and SOT353 packages.

Applications

• Active Noise Cancellation (ANC)
• Blood Pressure Monitor
• Embedded PC
• SSD: Client and Enterprise
• TV: LCD/Digital and HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headsets, Keyboards and Mice
• Power Supply: Telecom/Server AC/DC Controller

Key features

• Wide supply voltage range: 1.65 V to 5.5 V
• Maximum propagation delay Tpp of 4.2 ns at Vcc = 3.3 V
• Low power consumption, maximum Icc of 10 μA
• Output drive current of ±24 mA at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• Human Body Model (A114-A): 2000 V
• Charged Device Model (C101): 1000 V
• Operating temperature range: -40℃ to 125℃
• Available packages: SOT23-5 and SOT353
