3PEAK

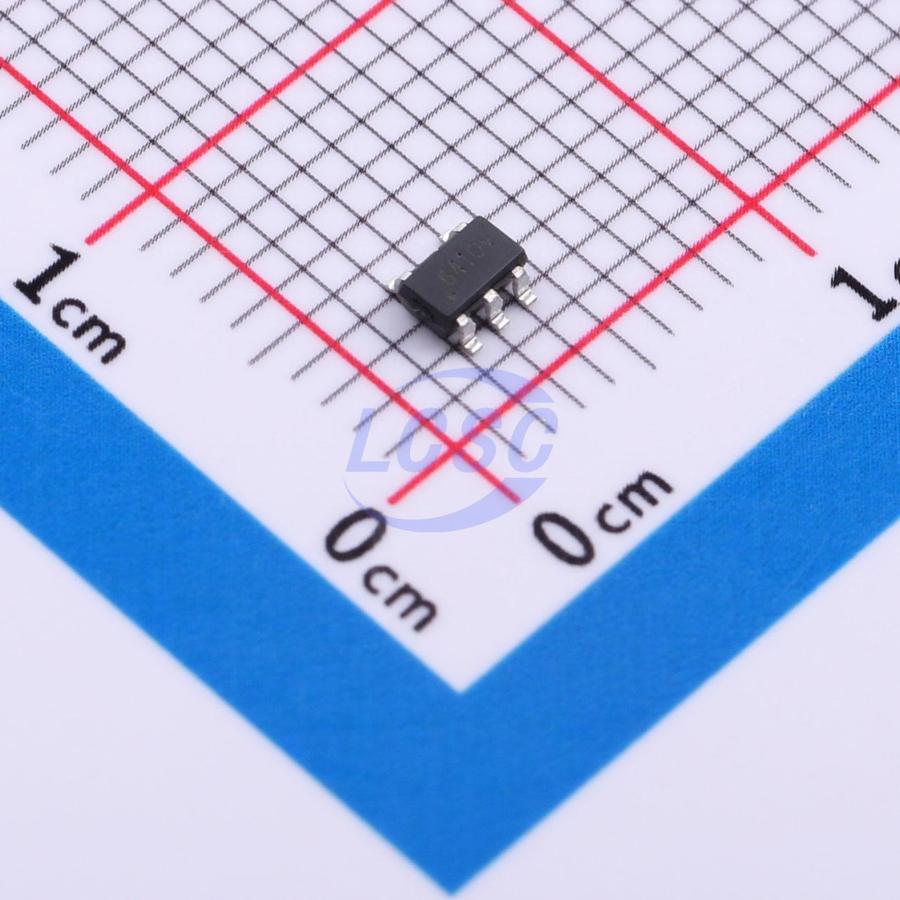

TPA2641-S5TR

50mA 1 100uV 500V/ms 110dB 15nA 350uA 1.5MHz Rail-to-rail input SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPA2641-S5TR
Store part #: C38698268
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,180 in stock

#C38698268

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹41.09	₹205.45
50+	₹31.61	₹1,580.50
150+	₹27.53	₹4,129.50
500+	₹22.45	₹11,225.00
3,000+	₹20.20	₹60,600.00
6,000+	₹18.84	₹1,13,040.00

Quantity (min 5, multiples of 5)

5 × ₹41.09

₹205.45

excl. GST

₹242.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPA2641-S5TR

₹205.45 for 5 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 100uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 15nA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 350uA
Gain Bandwidth Product: 1.5MHz
Features: ESD protection
Input Voltage Noise Density: 50nV/√Hz@1kHz
Rail to Rail: Rail-to-rail input
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.111 g

Overview

The TPA264X series amplifiers are the latest high supply voltage amplifiers featuring 2mV offset voltage, low noise, and high immunity to high-frequency power supply noise. They employ 3PEAK's proprietary patented design technology to achieve excellent AC performance — including 1.5MHz bandwidth, 0.5V/μs slew rate, and low distortion — while consuming only 550μA quiescent current per amplifier. The input common-mode voltage range extends down to -Vs, with no internal ESD diode between the input and +Vs. This feature blocks the current path from the input to +Vs when the power supply is off but signals are still present at the input pins, a condition commonly encountered in battery-related applications.

Applications

Instrumentation
Sensor Interface
Motor Control
Industrial Control

Key features

Supply voltage: 3V to 36V
Offset voltage: ±2mV max
Differential input voltage range up to supply rails, operable as comparator
Bandwidth: 1.5MHz, slew rate: 0.5V/μs
Input rail to -Vs, no internal ESD diode connected to +Vs
Low 1/f noise: 50nV/√Hz at 10Hz
High PSRR+: 60dB at 100KHz
No significant output glitch during power switching
Operating temperature range: 40°C to 125°C
