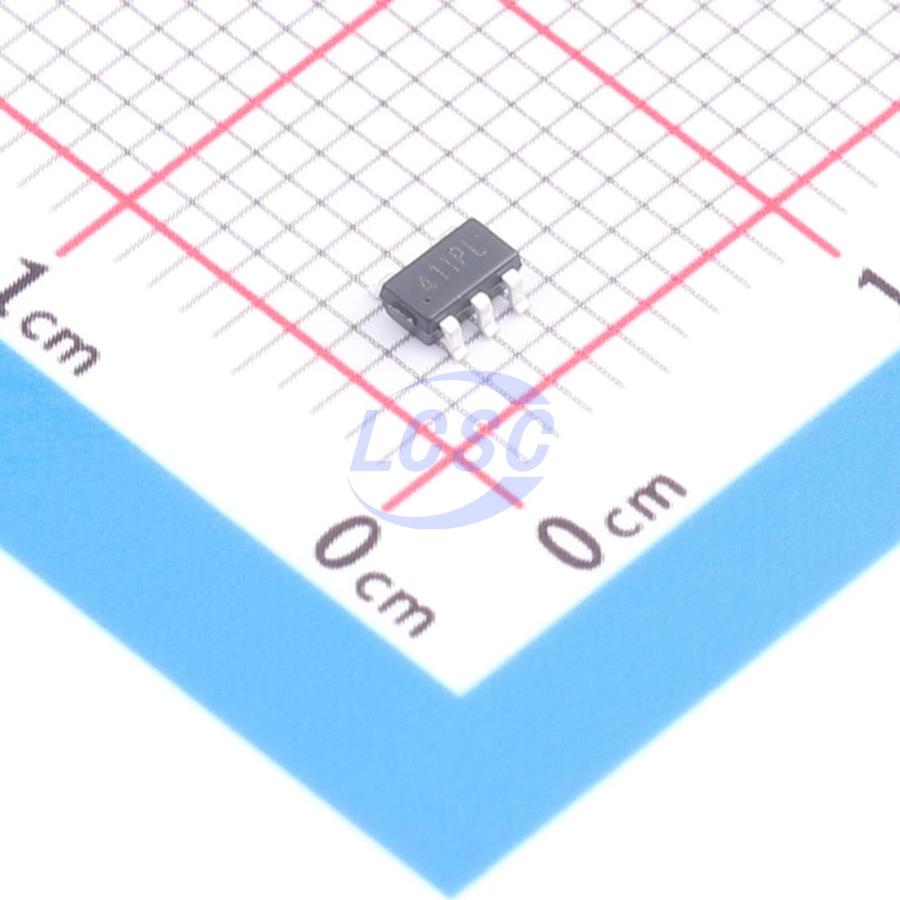

TP2411-TR

130mA 1 1mV 7V/us 300pA 106dB 10MHz 1.4mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Low Cost, Low Noise CMOS RRIO Op Amps

Manufacturer: 3PEAK
Manufacturer part #: TP2411-TR
Store part #: C2902352
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,935 in stock

#C2902352

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹54.10	₹270.50
50+	₹41.71	₹2,085.50
150+	₹36.29	₹5,443.50
500+	₹29.56	₹14,780.00
3,000+	₹26.72	₹80,160.00
6,000+	₹24.77	₹1,48,620.00

Quantity (min 5, multiples of 5)

5 × ₹54.10

₹270.50

excl. GST

₹319.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP2411-TR

₹270.50 for 5 + GST

Specifications

Output Current: 130mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 7V/us
Input Offset Current(Ios): 0.3pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 300pA
Common Mode Rejection Ratio(CMRR): 106dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 1.4mA
Input Voltage Noise Density: 8.2nV/√Hz@1kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

Gain-bandwidth Product: 10 MHz Low Noise: 8.2 nV/√Hz(f = 1 kHz) Slew Rate: 7 V/μs Offset Voltage: 1 mV (max) EMIRR IN+: 88 dB( under 2.4 GHz) Low THD + N: 0.0005% Supply Range: 2.2 V to 5.5 V Supply Current: 1.4 mA/ch Low Input Bias Current: 0.3 pA Typical Rail-to-Rail I/O High Output Current: 70 mA (1.0 V Drop)

Applications

Sensor Signal Conditioning
Consumer Audio
Multi-Pole Active Filters
Control-Loop Amplifiers
Communications
Security
Scanners
power amplifier (PA) controls
laser diode control loops
portable and loop-powered instrumentation
audio amplification for portable devices
ASIC input and output amplifiers

Key features

Gain-bandwidth Product: 10 MHz
Low Noise: 8.2 nV/√Hz(f = 1 kHz)
Slew Rate: 7 V/μs
Offset Voltage: 1 mV (max)
EMIRR IN+: 88 dB( under 2.4 GHz)
Low THD + N: 0.0005%
Supply Range: 2.2 V to 5.5 V
Supply Current: 1.4 mA/ch
Low Input Bias Current: 0.3 pA
Typical Rail-to-Rail I/O
High Output Current: 70 mA (1.0 V Drop)
