TECH PUBLICDatasheet (PDF)

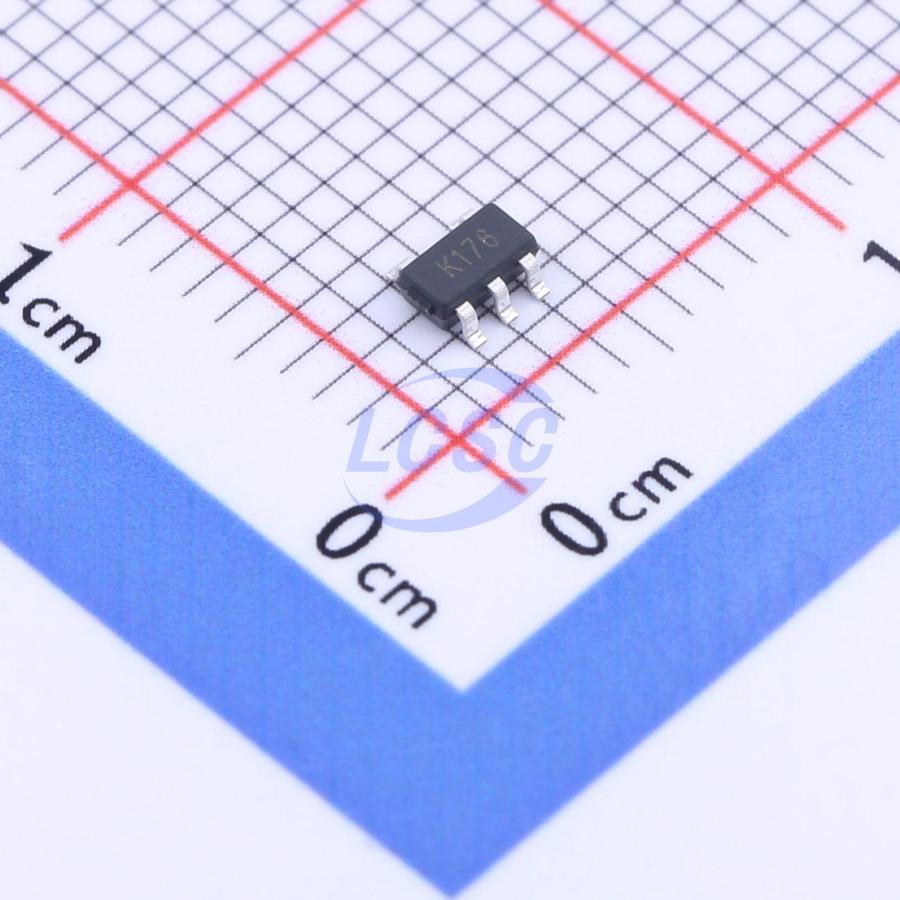

TPMCP6001T-I/OT
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5RoHSActive
1MHz, Low Power, CMOS, Rail to Rail Operational Amplifier
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP6001T-I/OT
- Store part #
- C2959844
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,390 in stock
#C2959844
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.73 | ₹118.65 |
| 50+ | ₹18.75 | ₹937.50 |
| 150+ | ₹16.62 | ₹2,493.00 |
| 500+ | ₹13.96 | ₹6,980.00 |
| 3,000+ | ₹11.70 | ₹35,100.00 |
| 6,000+ | ₹10.98 | ₹65,880.00 |
5 × ₹23.73
₹118.65
excl. GST
₹140.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMCP6001T-I/OT
₹118.65 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 1.06V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 55uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 50nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Portable Equipment
- Mobile Communications
- Smoke Detector
- Medical Instrumentation
- Battery-Powered Instruments
- Sensor Interface
- Handheld Test Equipment
Key features
- The TMCP6001T is a single supply, low power CMOS operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V.
- Typical low quiescent supply current of 55μA in one operational amplifier within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors.
- The TPMCP6001T is available in SOT23-5L packages.
- The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.
- Single-Supply Operation from +1.8V ~ +5.5V
- Rail-to-Rail Input/Output
- Gain-Bandwidth Product: 1MHz (Typ.)
- Low Input Bias Current: 10pA (Typ.)
- Low Offset Voltage: 5mV (Max.)
- Quiescent Current: 55μA per Amplifier (Typ.)
- Operating Temperature: -40°C - 125°C
- Available in SOT23-5L Packages
