TECH PUBLICDatasheet (PDF)

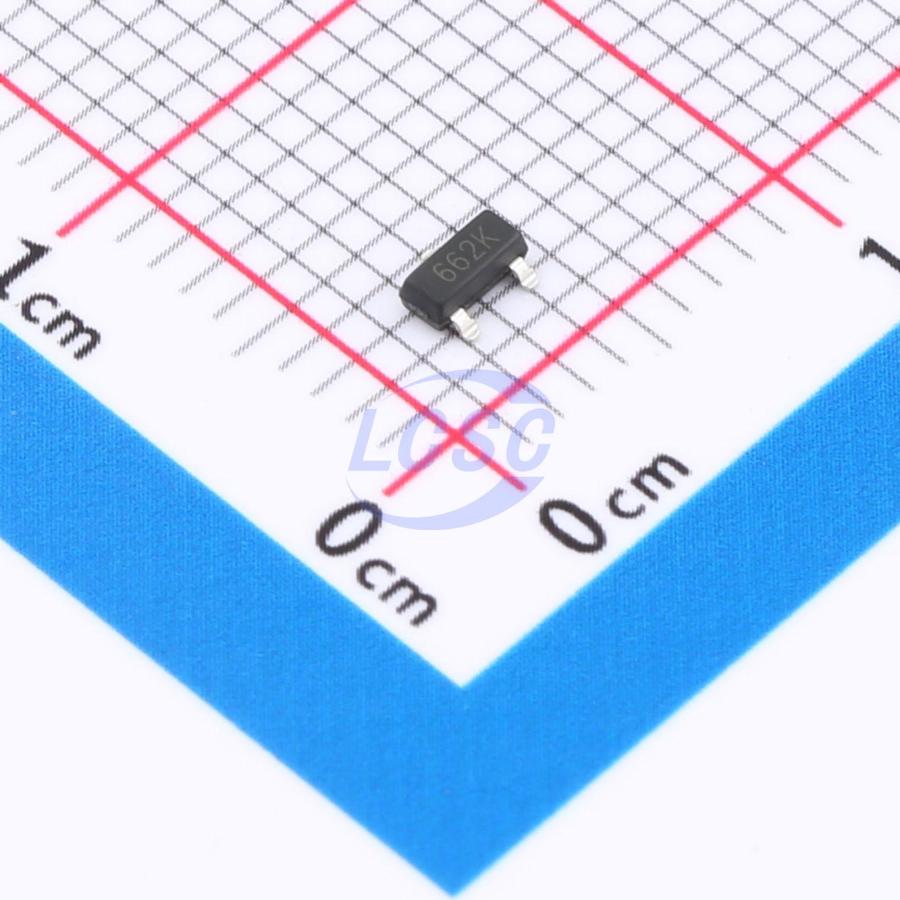

TPME6206A33XG
Linear Voltage Regulator IC Positive Fixed 250mA SOT-23
SOT-23RoHSActive
250mA 8uA Low Power LDO
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPME6206A33XG
- Store part #
- C48886836
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,900 in stock
#C48886836
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.01 | ₹100.50 |
| 500+ | ₹1.56 | ₹780.00 |
| 3,000+ | ₹1.31 | ₹3,930.00 |
| 6,000+ | ₹1.16 | ₹6,960.00 |
| 24,000+ | ₹1.03 | ₹24,720.00 |
| 51,000+ | ₹0.9658 | ₹49,255.80 |
50 × ₹2.01
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPME6206A33XG
₹100.50 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
The TPME6206 series is a high ripple rejection ratio, low quiescent current, low dropout CMOS linear voltage regulator with overcurrent and short-circuit protection. This series features an extremely low typical quiescent current of 8.0μA, capable of delivering up to 250mA output current under minimal input-to-output voltage differential while maintaining excellent regulation. Its ultra-low dropout, low noise, and low quiescent current characteristics make it particularly suited for battery-powered products requiring extended battery life, such as computers, consumer, and industrial equipment; it is also well-suited for audio and video equipment with high ripple rejection requirements, such as cameras, Bluetooth, and other consumer products.
Applications
- Camera
- Bluetooth
- Battery-powered systems
- Portable audio/video systems
- Communication devices
Key features
- Low dropout voltage
- Maximum output current: 250mA
- Output voltage range: 1.2V to 5.0V (in 0.1V steps)
- High accuracy output voltage: ±2%
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPLN6206P332MR#C48886833TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,550 | ₹1.98 · 1,550 in stock | View |
 | HT7533HS#C52817106TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,560 | ₹10.70 · 2,560 in stock | View |
 | TPRT9161-33GV#C5342422TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 4,790 | ₹14.83 · 4,790 in stock | View |
 | TP6206P332S3#C48639052TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,280 | ₹2.61 · 2,280 in stock | View |
 | TPMCP1702T-3302E/CB#C3040634TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 494 | ₹60.67 · 494 in stock | View |
