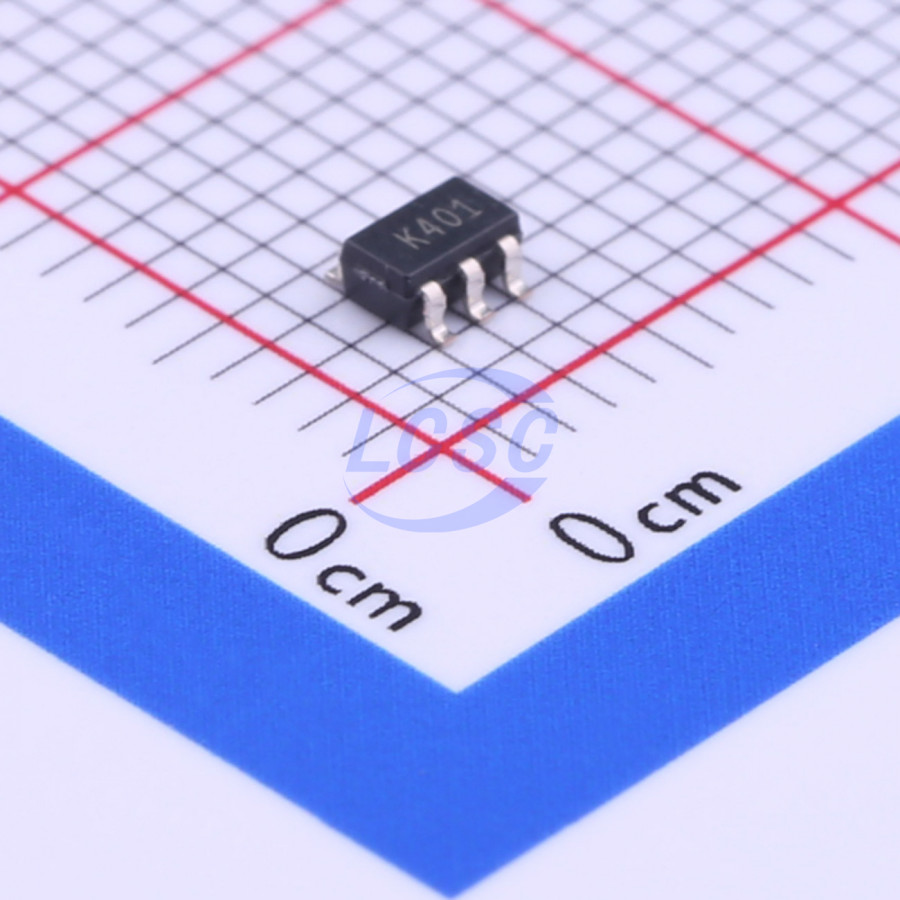

TS321ILT
40mA 1 4mV 400V/ms 85dB 200nA 800kHz 500uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Low-power single operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TS321ILT
- Store part #
- C38380
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,805 in stock
#C38380
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.25 | ₹171.25 |
| 50+ | ₹27.04 | ₹1,352.00 |
| 150+ | ₹23.96 | ₹3,594.00 |
| 500+ | ₹20.11 | ₹10,055.00 |
| 3,000+ | ₹18.40 | ₹55,200.00 |
| 6,000+ | ₹17.37 | ₹1,04,220.00 |
5 × ₹34.25
₹171.25
excl. GST
₹202.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS321ILT
₹171.25 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 200nA
- Gain Bandwidth Product
- 800kHz
- Quiescent Current
- 500uA
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- 1.5V~15V;-15V~-1.5V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The TS321 device is intended for cost-sensitive applications where space-saving is of great importance. This bipolar operational amplifier (op amp) offers the benefits of a reduced component size (SOT23-5 package) with specifications that match (or are better than) industry standard devices (such as the popular LM358A, LM324, and other similar devices). The TS321 device has an input common mode range (Vicm) that includes ground and therefore can be employed in single supply applications.
Applications
- Cost-sensitive, space-constrained applications
- Single-supply applications
Key features
- Large output voltage swing 0 to 3.5 V min (VCC = 5 V)
- Low supply current: 500 μA
- Low input bias current: 20 nA
- Low input offset voltage 2 mV max. for TS321A 4 mV max. for TS321
- Wide power supply range Single supply: 3 to 30 V Dual supplies: ±1.5 to ±15 V
- Stable with high capacitive loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM321S5#C3011195TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,510 | ₹15.36 · 1,510 in stock | View |
 | MLM321MF#C42403140MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 10,180 | ₹4.88 · 10,180 in stock | View |
 | TS321IYLT#C2058113ST · SOT-23-5 | ST | SOT-23-5 | 17 | ₹99.24 · 17 in stock | View |
 | TS321QDBVRQ1#C523798TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹1,092.80 · 10 in stock | View |
 | TS321AILT#C283318ST · SOT-23-5 | ST | SOT-23-5 | 1,265 | ₹55.27 · 1,265 in stock | View |
