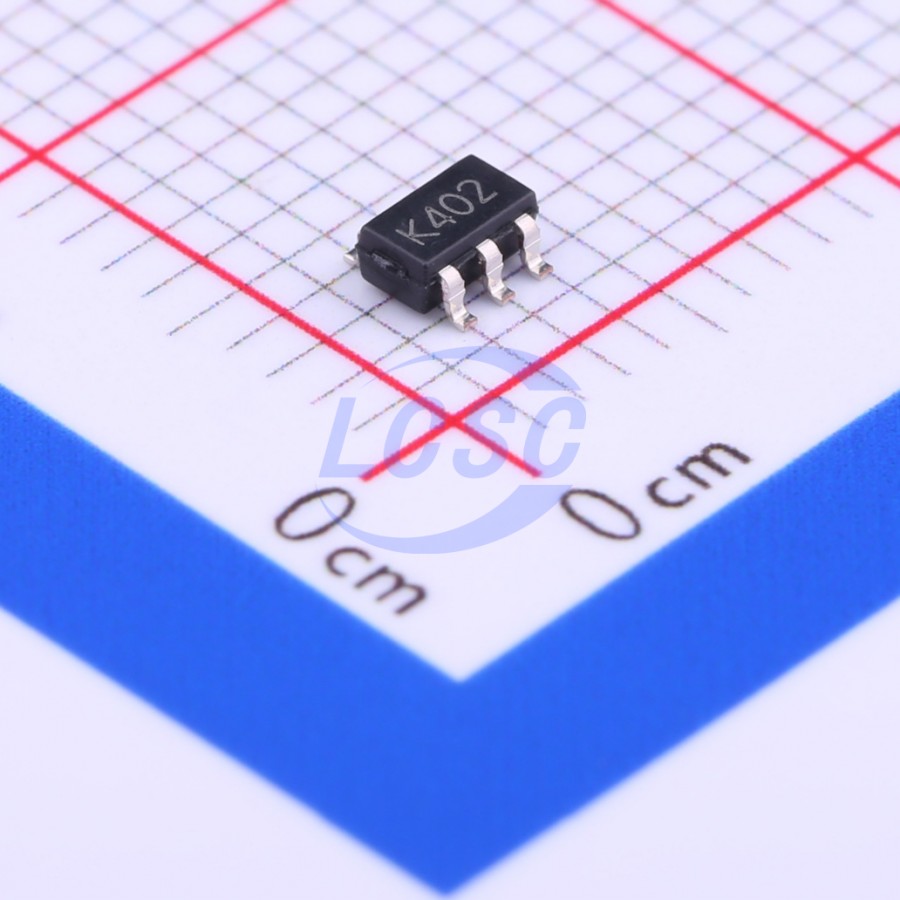

TS321AILT
40mA 1 2mV 400V/ms 85dB 20nA 500uA 800kHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Single-channel LM324 and enhanced version of LM358, SOT23-5 package
- Manufacturer
- ST
- Manufacturer part #
- TS321AILT
- Store part #
- C283318
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,265 in stock
#C283318
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.27 | ₹276.35 |
| 50+ | ₹43.45 | ₹2,172.50 |
| 150+ | ₹38.38 | ₹5,757.00 |
| 500+ | ₹29.67 | ₹14,835.00 |
| 3,000+ | ₹26.87 | ₹80,610.00 |
| 6,000+ | ₹25.18 | ₹1,51,080.00 |
5 × ₹55.27
₹276.35
excl. GST
₹326.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS321AILT
₹276.35 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 20nA
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 800kHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The TS321 device is intended for cost-sensitive applications where space-saving is of great importance. This bipolar operational amplifier (op amp) offers the benefits of a reduced component size (SOT23-5 package) with specifications that match (or are better than) industry standard devices (such as the popular LM358A, LM324, and other similar devices). The TS321 device has an input common mode range (Vicm) that includes ground and therefore can be employed in single supply applications.
Applications
- Cost-sensitive, space-constrained applications
- Single-supply applications
Key features
- Large output voltage swing 0 to 3.5 V min (VCC = 5 V)
- Low supply current: 500 μA
- Low input bias current: 20 nA
- Low input offset voltage 2 mV max. for TS321A 4 mV max. for TS321
- Wide power supply range Single supply: 3 to 30 V Dual supplies: ±1.5 to ±15 V
- Stable with high capacitive loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS321IYLT#C2058113ST · SOT-23-5 | ST | SOT-23-5 | 17 | ₹99.24 · 17 in stock | View |
 | TS321ILT#C38380ST · SOT-23-5 | ST | SOT-23-5 | 28,805 | ₹34.25 · 28,805 in stock | View |
 | TS321QDBVRQ1#C523798TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹1,092.80 · 10 in stock | View |
 | LM321MF/NOPB#C131103TI · SOT-23-5 | TI | SOT-23-5 | 5,185 | ₹26.16 · 5,185 in stock | View |
 | LM321MF/TR-HG#C53374690HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,860 | ₹4.90 · 2,860 in stock | View |
