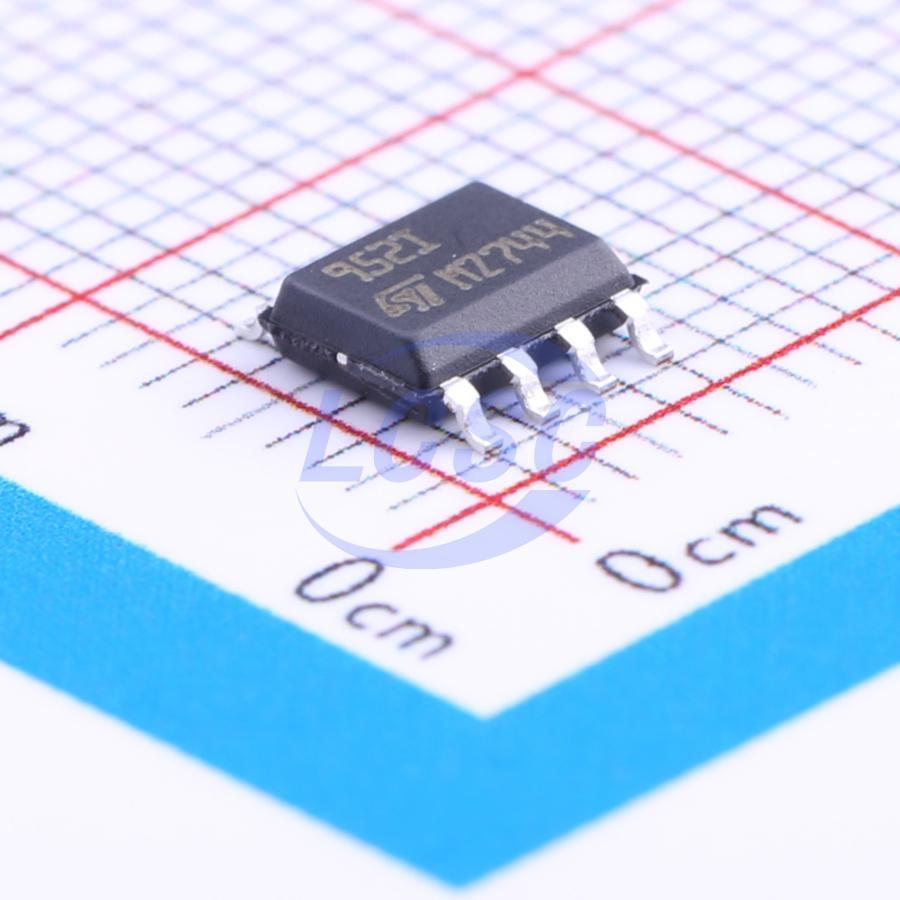

TS952IDT
10mA 2 8mV 1V/us 80dB 35nA 900uA 3MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Input/output rail-to-rail low-power operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TS952IDT
- Store part #
- C179480
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,054 in stock
#C179480
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹222.32 | ₹222.32 |
| 10+ | ₹187.18 | ₹1,871.80 |
| 30+ | ₹165.06 | ₹4,951.80 |
| 100+ | ₹142.50 | ₹14,250.00 |
| 500+ | ₹132.09 | ₹66,045.00 |
| 1,000+ | ₹127.76 | ₹1,27,760.00 |
1 × ₹222.32
₹222.32
excl. GST
₹262.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS952IDT
₹222.32 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 8mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 35nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 900uA
- Gain Bandwidth Product
- 3MHz
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.238 g
Overview
The TS951, TS952, and TS954 family of devices are rail-to-rail BiCMOS operational amplifiers optimized and fully specified for 3 V and 5 V operation. The TS951 device is housed in the space-saving 5-pin SOT23 package that makes it well suited for battery powered systems. This micropackage simplifies the PC board design because of its ability to be placed in tight spaces (outside dimensions are: 2.8 mm×2.9 mm).
Applications
- Set-top boxes
- Laptop/notebook computers
- Transformer/line drivers
- Personal entertainment (CD players)
- Portable communications (cell phones, pagers)
- Instrumentation and sensors
- Digital-to-analog converter buffers
- Portable headphone speaker drivers
Key features
- Rail-to-rail input common mode voltage range
- Rail-to-rail output voltage swing
- Operates from 2.7 V to 12 V
- High-speed (3 MHz, 1 V/μs)
- Low consumption (0.9 mA at 3 V)
- Supply voltage rejection ratio: 80 dB
- Latch-up immunity
- Available in SOT23-5 micropackage, SO8, TSSOP8, SO14, and TSSOP14 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS922AIDT#C283511ST · SO-8 | ST | SO-8 | 1,847 | ₹136.16 · 1,847 in stock | View |
 | TS922IDT#C93687ST · SO-8 | ST | SO-8 | 53,288 | ₹63.53 · 53,288 in stock | View |
| TS922ID#C1235672ST · SO-8 | ST | SO-8 | 4 | ₹99.03 · 4 in stock | View | |
 | TS922AID#C5268463ST · SO-8 | ST | SO-8 | 1 | ₹223.36 · 1 in stock | View |
 | TS922AIYDT#C283512ST · SO-8 | ST | SO-8 | 3 | ₹457.49 · 3 in stock | View |
