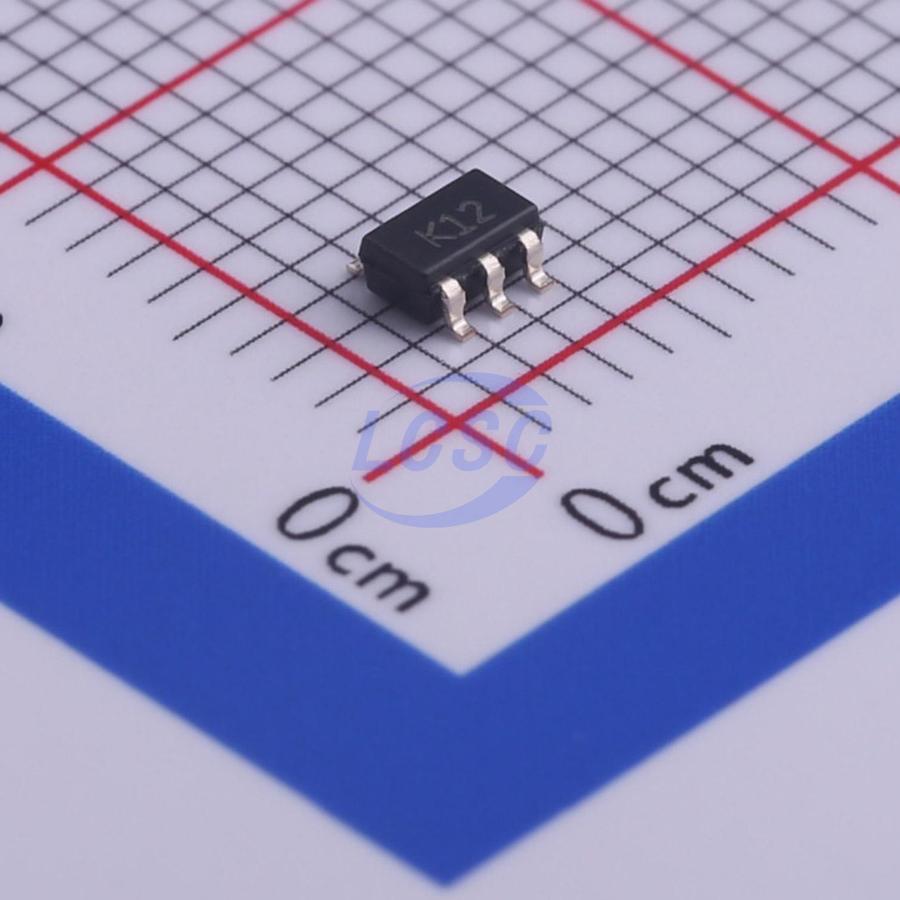

TSV611ILT
63mA 1 800uV 40V/ms 80dB 100pA 14uA 120kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Rail-to-rail input/output 10 microamps, 120 kilohertz CMOS operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TSV611ILT
- Store part #
- C443984
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C443984
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.84 | ₹95.84 |
| 10+ | ₹78.06 | ₹780.60 |
| 30+ | ₹69.39 | ₹2,081.70 |
| 100+ | ₹57.25 | ₹5,725.00 |
| 500+ | ₹52.05 | ₹26,025.00 |
| 1,000+ | ₹49.23 | ₹49,230.00 |
1 × ₹95.84
₹95.84
excl. GST
₹113.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TSV611ILT
₹95.84 for 1 + GST
Specifications
- Output Current
- 63mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 40V/ms
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 14uA
- Gain Bandwidth Product
- 120kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 105nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The TSV61x family of single and dual operational amplifiers offers low voltage, low power operation, and rail-to-rail input and output. The devices also feature an ultra-low input bias current as well as a low input offset voltage. The TSV61x have a gain bandwidth product of 120 kHz while consuming only 10 μA at 5 V. These features make the TSV61x family ideal for sensor interfaces, battery supplied and portable applications, as well as active filtering.
Applications
- Battery-powered applications
- Smoke detectors
- Proximity sensors
- Portable devices
- Signal conditioning
- Active filtering
- Medical instrumentation
Key features
- Rail-to-rail input and output
- Low power consumption: 10 μA typ at 5 V
- Low supply voltage: 1.5 to 5.5 V
- Gain bandwidth product: 120 kHz typ
- Unity gain stable
- Low input offset voltage: 800 μV max (A version)
- Low input bias current: 1 pA typ
- Temperature range: -40 to 85 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS121XF#C237029RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 3,390 | ₹25.48 · 3,390 in stock | View |
 | TSV611AILT(UMW)#C22374960UMW · SOT-23-5 | UMW | SOT-23-5 | 2,810 | ₹21.06 · 2,810 in stock | View |
 | TSV6191ILT#C2059119ST · SOT-23-5 | ST | SOT-23-5 | 25 | ₹192.10 · 25 in stock | View |
 | TSV611AILT#C2059076ST · SOT-23-5 | ST | SOT-23-5 | 50 | ₹147.85 · 50 in stock | View |
| TSV6291AILT(UMW)#C22365323UMW · SOT-23-5 | UMW | SOT-23-5 | 3,000 | ₹22.35 · 3,000 in stock | View | |
