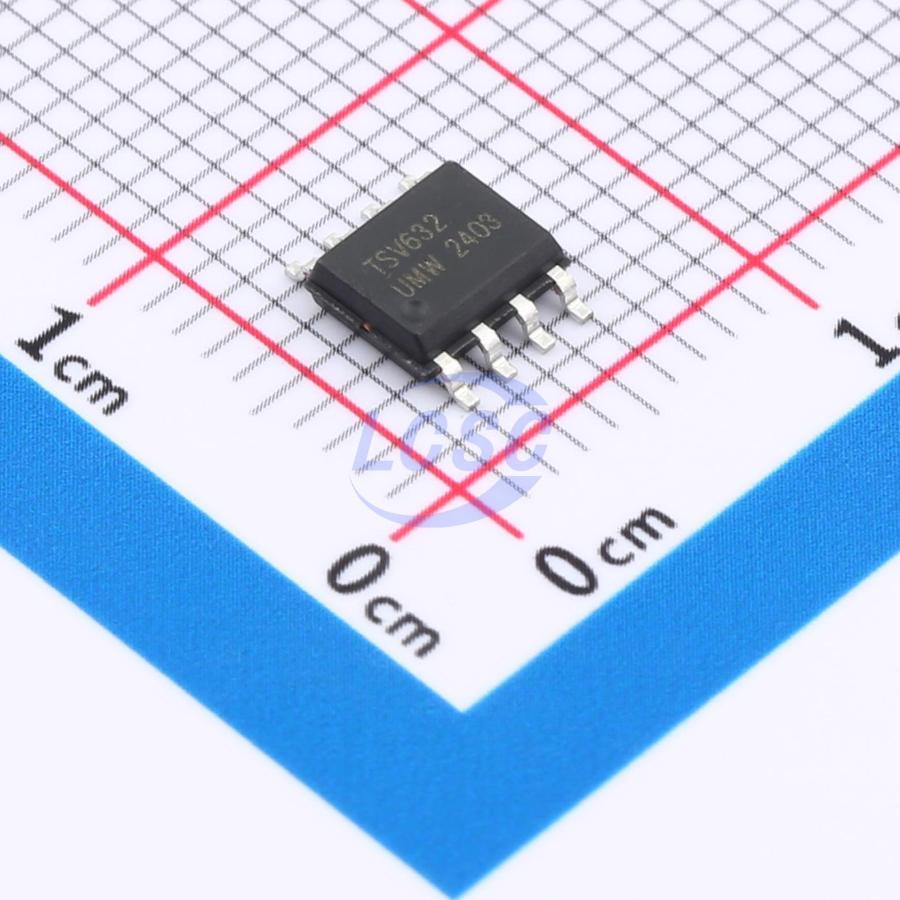

TSV632IDT(UMW)

40mA 2 3mV 270V/ms 1pA 74dB 60uA 880kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Dual and quad, rail-to-rail input/output operational amplifiers

Manufacturer: UMW
Manufacturer part #: TSV632IDT(UMW)
Store part #: C22373384
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,365 in stock

#C22373384

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹24.57	₹122.85
50+	₹21.47	₹1,073.50
150+	₹20.14	₹3,021.00
500+	₹18.48	₹9,240.00
2,500+	₹17.74	₹44,350.00
5,000+	₹17.29	₹86,450.00

Quantity (min 5, multiples of 5)

5 × ₹24.57

₹122.85

excl. GST

₹144.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TSV632IDT(UMW)

₹122.85 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 270V/ms
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 74dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 880kHz
Features: Enable/shutdown function
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.186 g

Overview

The UMW TSV63x and TSV63xA series dual and quad operational amplifiers offer low-voltage operation with rail-to-rail input and output. The series features an excellent speed-to-power ratio, delivering 880 kHz gain bandwidth product while consuming only 60μA at a 5V supply voltage. These characteristics make the series ideal for sensor interfaces, battery-powered and portable applications, and active filters.

Applications

Battery-powered applications
Portable devices
Signal conditioning

Key features

Rail-to-rail input and output
Low power consumption: 60μA typical at 5V supply
Low supply voltage: 1.5V ~ 5.5V
Gain bandwidth product: 880 kHz typical
Unity-gain stable with 100pF capacitive load
Low-power shutdown mode: 5 nA typical
Low offset voltage: 800μV maximum (A version)
Low input bias current: 1 pA typical
Enhanced EMI rejection op-amp
Automotive-grade qualified
