UMWDatasheet (PDF)

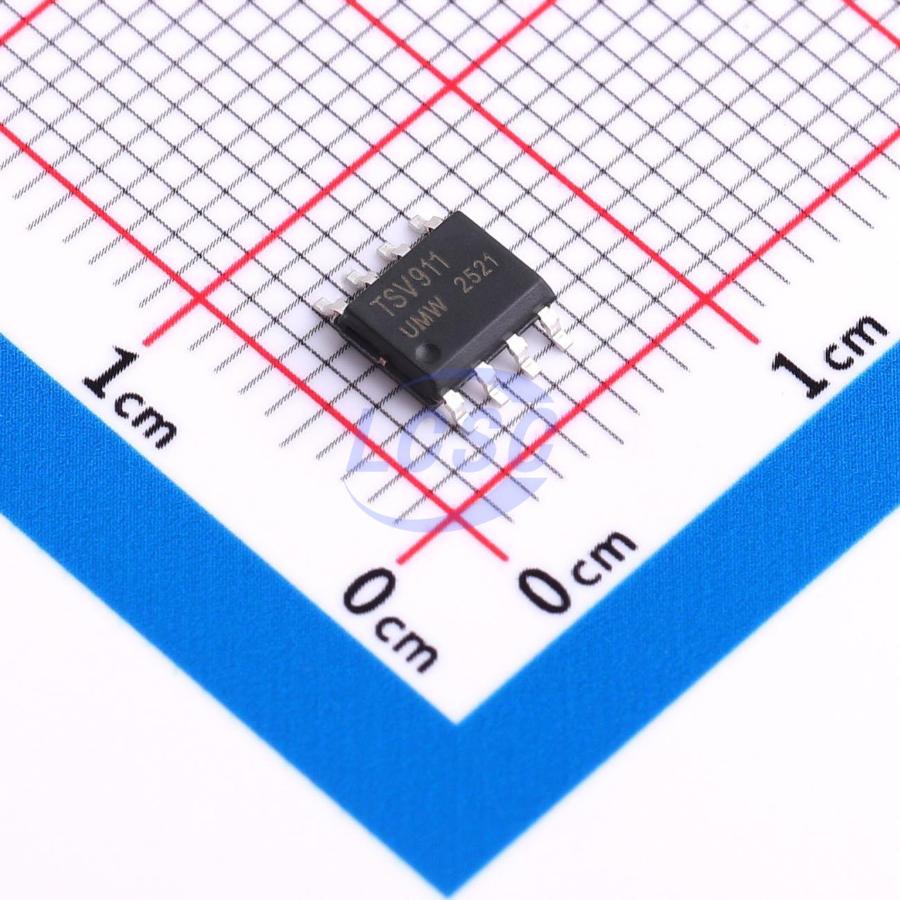

TSV911IYDT(UMW)
35mA 1 4.5mV 4.5V/us 1pA 75dB 8MHz 780uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TSV911IYDT(UMW)
- Store part #
- C22373374
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C22373374
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.74 | ₹173.70 |
| 50+ | ₹27.29 | ₹1,364.50 |
| 150+ | ₹24.11 | ₹3,616.50 |
| 500+ | ₹20.12 | ₹10,060.00 |
| 2,500+ | ₹18.35 | ₹45,875.00 |
| 5,000+ | ₹17.29 | ₹86,450.00 |
5 × ₹34.74
₹173.70
excl. GST
₹204.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSV911IYDT(UMW)
₹173.70 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 4.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Gain Bandwidth Product
- 8MHz
- Quiescent Current
- 780uA
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 21nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
UMW TSV91x and TSV91xA series op-amps feature low-voltage operation with rail-to-rail input and output, delivering an excellent speed-to-power ratio — providing 8MHz gain bandwidth product at a maximum supply current of only 1.1mA from a 5V supply. These op-amps are unity-gain stable with ultra-low input bias current. They are ideal for sensor interfaces, battery-powered portable applications, and active filtering.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
Key features
- Rail-to-rail input and output
- Wide bandwidth
- Low power consumption: 820μA typical
- Unity-gain stable
- High output current: 35mA
- Operating voltage range: 2.5V to 5.5V
- Low input bias current: 1pA typical
- Low input offset voltage: 1.5mV max (Grade A)
- Internal ESD protection ≥ 5kV
- Latch-up immunity
