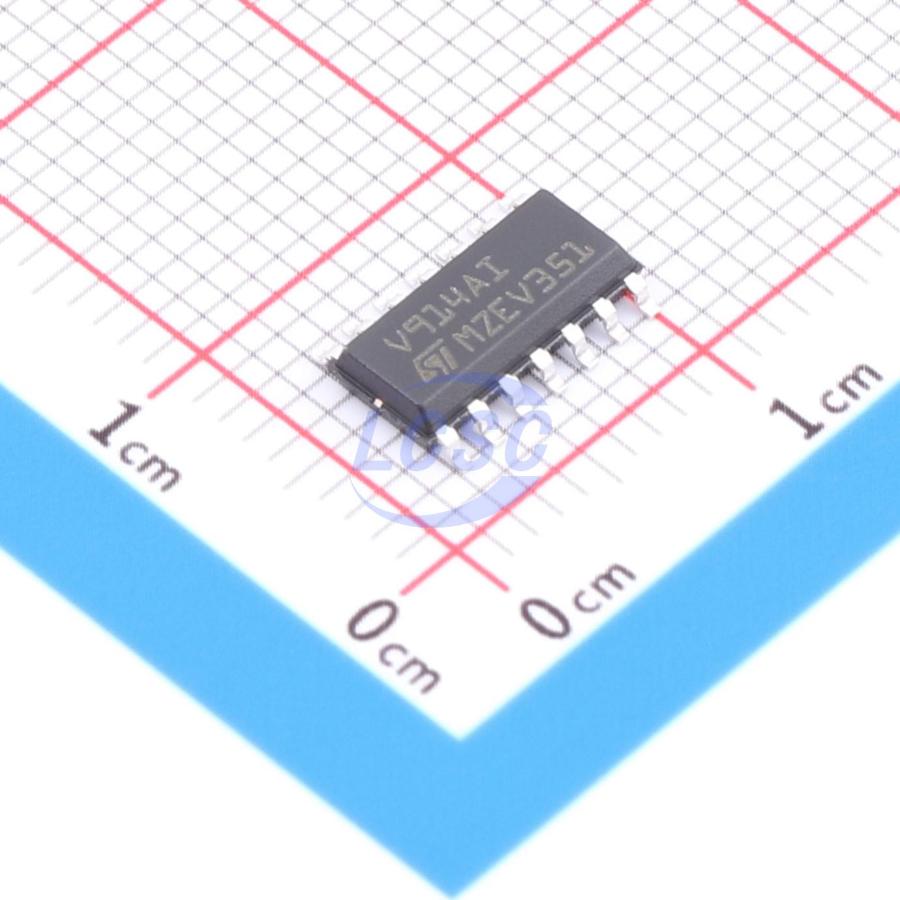

TSV914AIDT
35mA 4 1.5mV 4.5V/us 75dB 1pA 780uA 8MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TSV914AIDT
- Store part #
- C2970080
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,542 in stock
#C2970080
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.79 | ₹205.79 |
| 10+ | ₹169.28 | ₹1,692.80 |
| 30+ | ₹149.08 | ₹4,472.40 |
| 100+ | ₹126.25 | ₹12,625.00 |
| 500+ | ₹116.27 | ₹58,135.00 |
| 1,000+ | ₹111.70 | ₹1,11,700.00 |
1 × ₹205.79
₹205.79
excl. GST
₹242.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSV914AIDT
₹205.79 for 1 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1.5mV
- Slew Rate
- 4.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 780uA
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 21nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.397 g
Overview
The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V. The op amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
- Active filtering
- Medical instrumentation
- Automotive applications
Key features
- Rail-to-rail input and output
- Wide bandwidth
- Low power consumption: 820 μA typ.
- Unity gain stability
- High output current: 35 mA
- Operating from 2.5 V to 5.5 V
- Low input bias current, 1 pA typ.
- Low input offset voltage: 1.5 mV max. (A grade)
- ESD internal protection ≥ 5 kV
- Latch-up immunity
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSAD8608ARZ-REEL7#C49208534MSKSEMI · SOP-14 | MSKSEMI | SOP-14 | 2,402 | ₹53.89 · 2,402 in stock | View |
| TSV914AIYDT#C5268487ST · SO-14 | ST | SO-14 | 222 | ₹131.35 · 222 in stock | View | |
| TSV994AIYDT#C2058419ST · SO-14 | ST | SO-14 | 5 | ₹192.72 · 5 in stock | View | |
| TSV994AIDT#C2058854ST · SOIC-14 | ST | SOIC-14 | 1,359 | ₹237.52 · 1,359 in stock | View | |
 | TSV914IDT(UMW)#C22373387UMW · SOP-14 | UMW | SOP-14 | 7,334 | ₹37.37 · 7,334 in stock | View |
