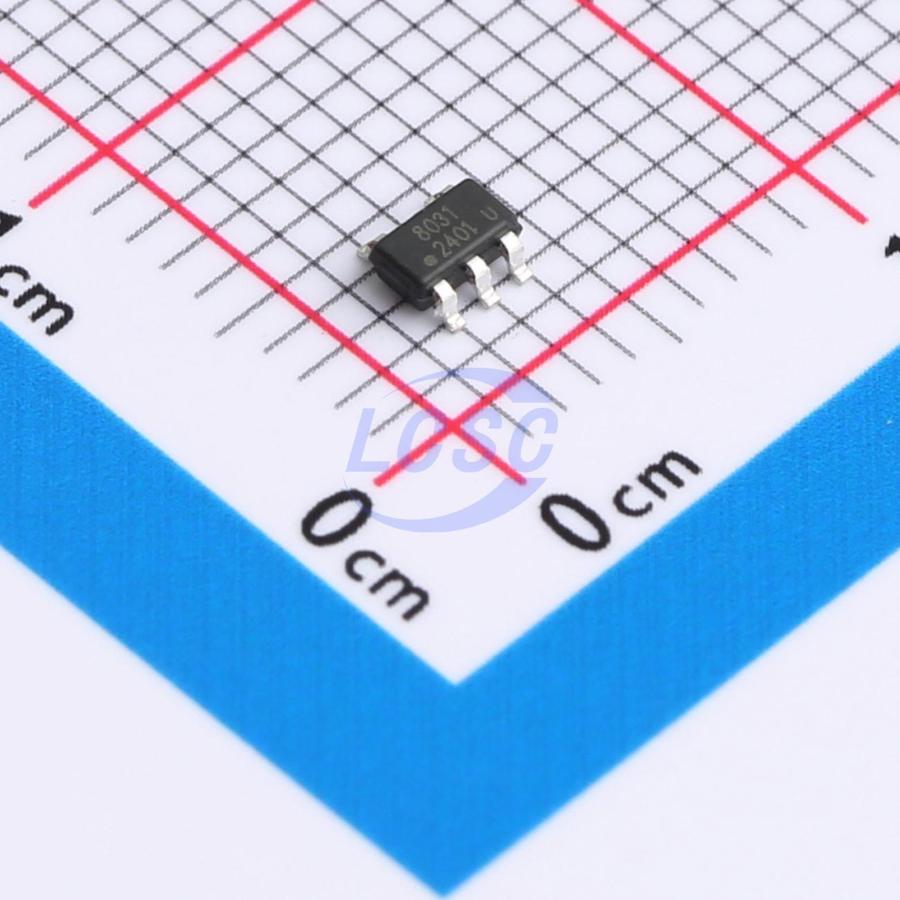

UMWRS8031XF
11mA 1 500uV 7.5V/ms 90dB 1pA 15kHz 750nA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
15kHz, 750nA, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- UMWRS8031XF
- Store part #
- C20883023
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C20883023
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.43 | ₹127.15 |
| 50+ | ₹19.85 | ₹992.50 |
| 150+ | ₹17.46 | ₹2,619.00 |
| 500+ | ₹14.47 | ₹7,235.00 |
| 3,000+ | ₹13.15 | ₹39,450.00 |
| 6,000+ | ₹12.36 | ₹74,160.00 |
5 × ₹25.43
₹127.15
excl. GST
₹150.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UMWRS8031XF
₹127.15 for 5 + GST
Specifications
- Output Current
- 11mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 7.5V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.3uV/℃
- Gain Bandwidth Product
- 15kHz
- Quiescent Current
- 750nA
- Input Voltage Noise Density
- 160nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
This series offers low-voltage operation, rail-to-rail input and output, and an excellent speed/power ratio, with a bandwidth of 15kHz and a slew rate of 7.5V/ms. The op-amps are unity-gain stable and feature ultra-low input bias current. These devices are suitable for sensor interfaces, active filters, and portable applications. The series operates from single or dual supplies of 1.4V to 5.5V over the full temperature range of -40°C to +125°C.
Applications
- Sensors
- Photodiode amplification
- Wearable products
- Temperature measurement
- Battery-powered systems
Key features
- Gain bandwidth: 15kHz
- Rail-to-rail input and output, typical offset voltage VOS of 0.5mV
- Input voltage range: -0.1V to +5.6V (at VS = 5.5V)
- Supply range: +1.4V to +5.5V
- Operating temperature range up to +125°C
- Miniature package: SOT23-5
