UTCDatasheet (PDF)

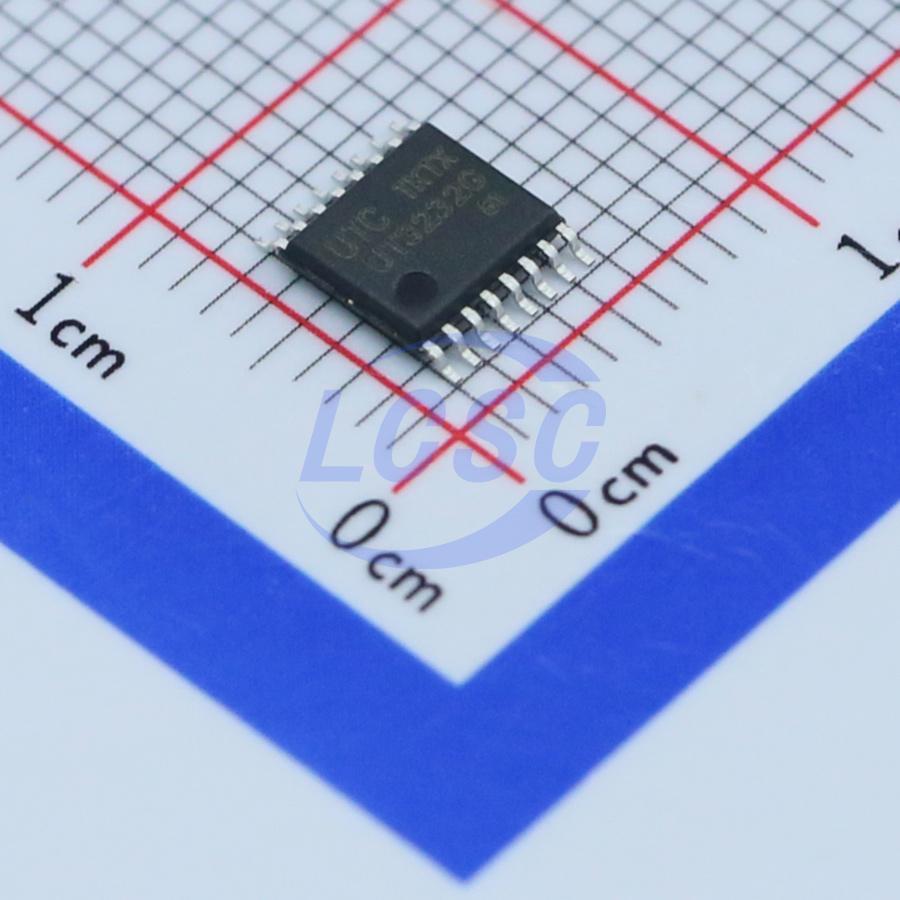

UT3232G-P16-R
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
UT3232 3.0V TO 5.5V LOW POWER MULTICHANNEL RS-232 LINE TRANSCEIVERS USING FOR 0.1uF EXTERNAL CAPACITORS
- Manufacturer
- UTC
- Manufacturer part #
- UT3232G-P16-R
- Store part #
- C108110
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,275 in stock
#C108110
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.83 | ₹219.15 |
| 50+ | ₹34.64 | ₹1,732.00 |
| 150+ | ₹30.69 | ₹4,603.50 |
| 500+ | ₹25.77 | ₹12,885.00 |
| 3,000+ | ₹21.39 | ₹64,170.00 |
| 6,000+ | ₹20.08 | ₹1,20,480.00 |
5 × ₹43.83
₹219.15
excl. GST
₹258.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UT3232G-P16-R
₹219.15 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The UTC UT3232 has two receivers and two drivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3.0V to 5.5V supply. The device operates at data signaling rates up to 250kbit/s and a maximum of 35V/μs driver output slew rate.
Key features
- Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins
- Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards
- Operates With 3.0V to 5.5V VCC Supply
- Operates Up To 250kbit/s Data Rate
- Two Drivers and Two Receivers
- External Capacitors 4×0.1μF
- Accepts 5.0V Logic Input With 3.3V Supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232CPWR(UMW)#C22449674UMW · TSSOP-16 | UMW | TSSOP-16 | 3,940 | ₹43.28 · 3,940 in stock | View |
 | MAX3232ECPWR#C11317TI · TSSOP-16 | TI | TSSOP-16 | 22,876 | ₹96.45 · 22,876 in stock | View |
 | ICL3232CVZ#C1543927RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 26 | ₹447.90 · 26 in stock | View |
 | TRS3232ECPWR#C201542TI · TSSOP-16 | TI | TSSOP-16 | 97 | ₹221.22 · 97 in stock | View |
 | SP3232EBCY-L/TR#C365761MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 5,688 | ₹129.09 · 5,688 in stock | View |
