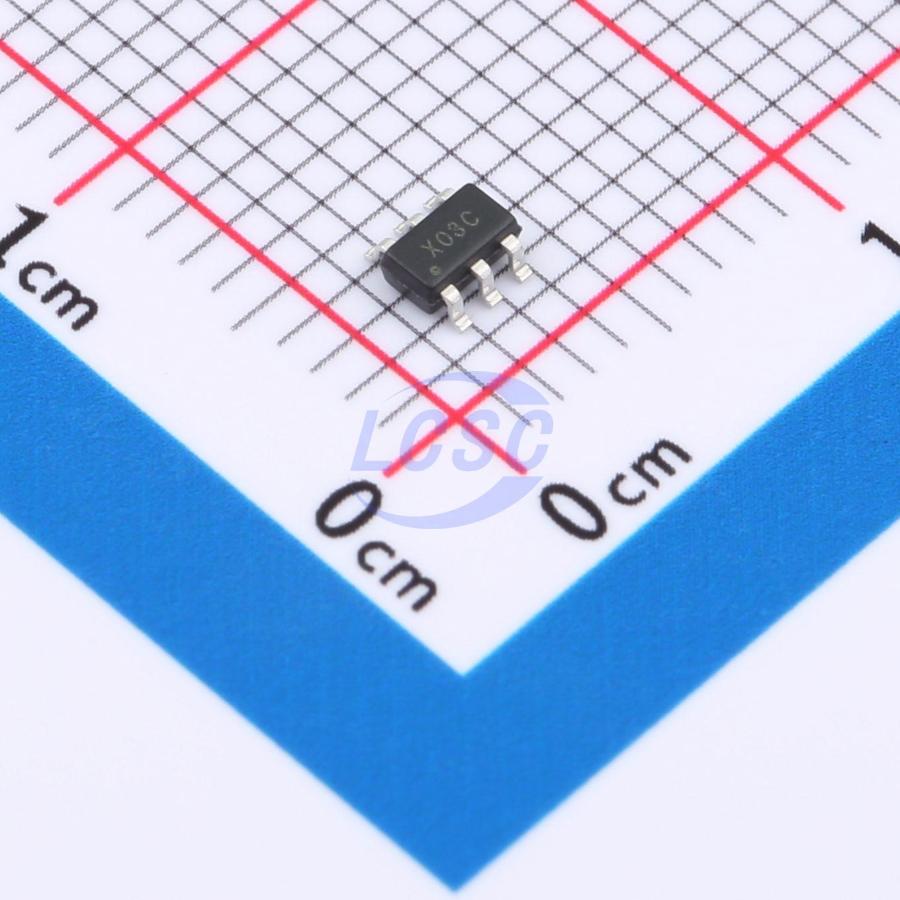

XC081S101
SPI 4V~5.25V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
500 to 800 KSPS, ULTRALOW POWER, 8-BIT SAR ANALOG-TO-DIGITAL CONVERTER
- Manufacturer
- SiChange
- Manufacturer part #
- XC081S101
- Store part #
- C23377935
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
998 in stock
#C23377935
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.40 | ₹110.40 |
| 10+ | ₹89.06 | ₹890.60 |
| 30+ | ₹78.28 | ₹2,348.40 |
| 100+ | ₹67.50 | ₹6,750.00 |
| 500+ | ₹61.24 | ₹30,620.00 |
| 1,000+ | ₹57.80 | ₹57,800.00 |
1 × ₹110.40
₹110.40
excl. GST
₹130.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC081S101
₹110.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 740uA
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 16MHz
- Resolution(Bits)
- 8;500kHz
- S/N Ratio
- 49dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC081S101 is an ultra- low power, small size, single- channel 8- bit analog- to- digital converter with a high speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the XC081S101 is fully specified over a sample rate range of 500 KSPS to 800 KSPS from a single 4 V to 5.25 V supply. The converter is based upon a successive- approximation register architecture with an internal track- and- hold circuit. The XC081S101 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃ The XC081S101 is a drop- in replacement for the ADC081S101 and consumes only half dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Base Band Converters in Radio Communication
- Portable Systems
- Remote Data Acquisition
- Instrumentation and Control Systems
Key features
- Single 4V to 5.25V Supply Operation for XC081S101
- Throughput Rate: 500 to 800 KSPS for XC081S101
- Specified Over a Range of Sample Rates
- ±0.5 LSB INL, ±0.5 LSB DNL (XC081S101)
- Zero Latency
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (XC081S101 typical): 2.95mW (4V, 800 KSPS), 5.10mW (5V, 800 KSPS)
- Second- Source for ADC081S101
- 6- Pin SOT- 23 Package
