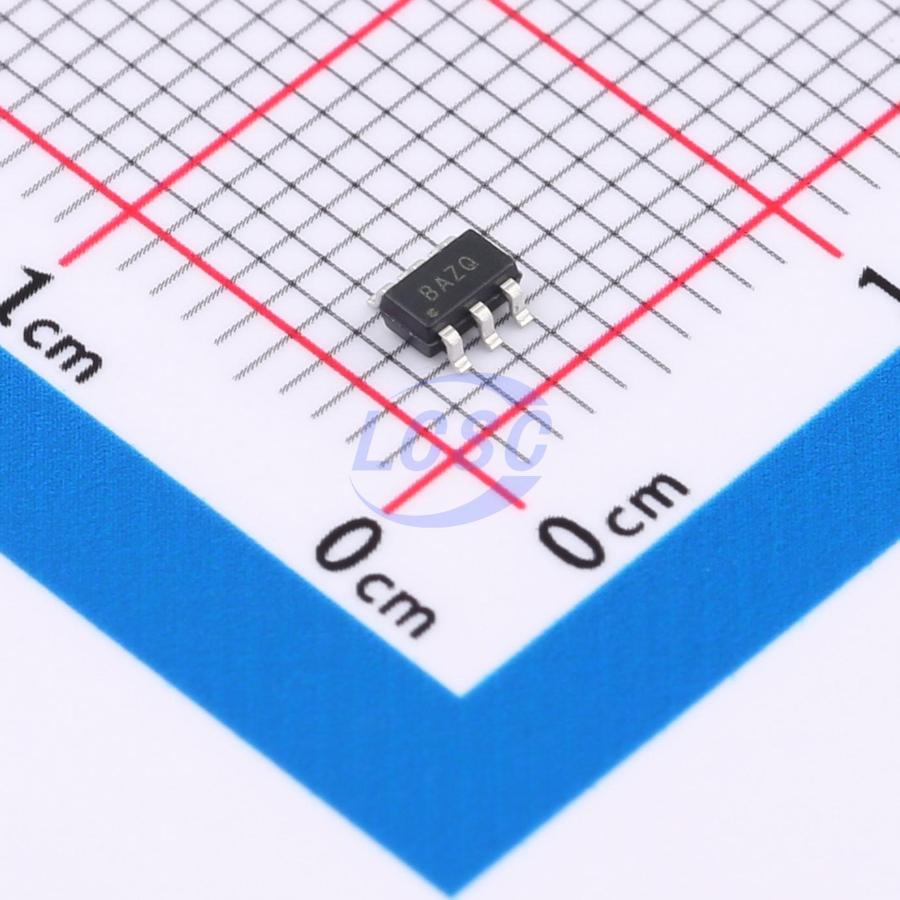

XC7888
8 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
800-ksps Ultra-Low-Power 8-Bit Micro SAR Analog-to-Digital Converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC7888
- Store part #
- C23377953
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C23377953
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹310.72 | ₹310.72 |
| 10+ | ₹263.05 | ₹2,630.50 |
| 30+ | ₹233.15 | ₹6,994.50 |
| 100+ | ₹202.38 | ₹20,238.00 |
| 500+ | ₹188.51 | ₹94,255.00 |
| 1,000+ | ₹182.67 | ₹1,82,670.00 |
1 × ₹310.72
₹310.72
excl. GST
₹366.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7888
₹310.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 4V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 16MHz
- Resolution(Bits)
- 8;800kHz
- S/N Ratio
- 49.5dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC7888 is an 8- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. This device can operate from a single 4 V to 5.25 V supply with an 800 KSPS throughput. The XC7888 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC7888 is a drop- in replacement for the ADS7888 and consumes only half dynamic power of their counterpart.
Applications
- Base Band Converters in Radio Communication
- Optical Networking
- Optical Sensors
- Medical Instrumentations
- Battery- Powered Systems
- High- speed Closed- Loop Systems
- High- Speed Data Acquisition Systems
Key features
- Fast Throughput Rate: 800 KSPS for XC7888
- Single 4V to 5.25V Supply Operation for XC7888
- Zero Latency
- ±0.5 LSB INL, ±0.5 LSB DNL
- 16MHz Serial Interface
- Variable Power Management
- Low Power (XC7888 typical): 2.80mW (4V, 800 KSPS), 4.90mW (5V, 800 KSPS)
- Second- Source for ADS7888
- 6- Pin SOT- 23 Package
