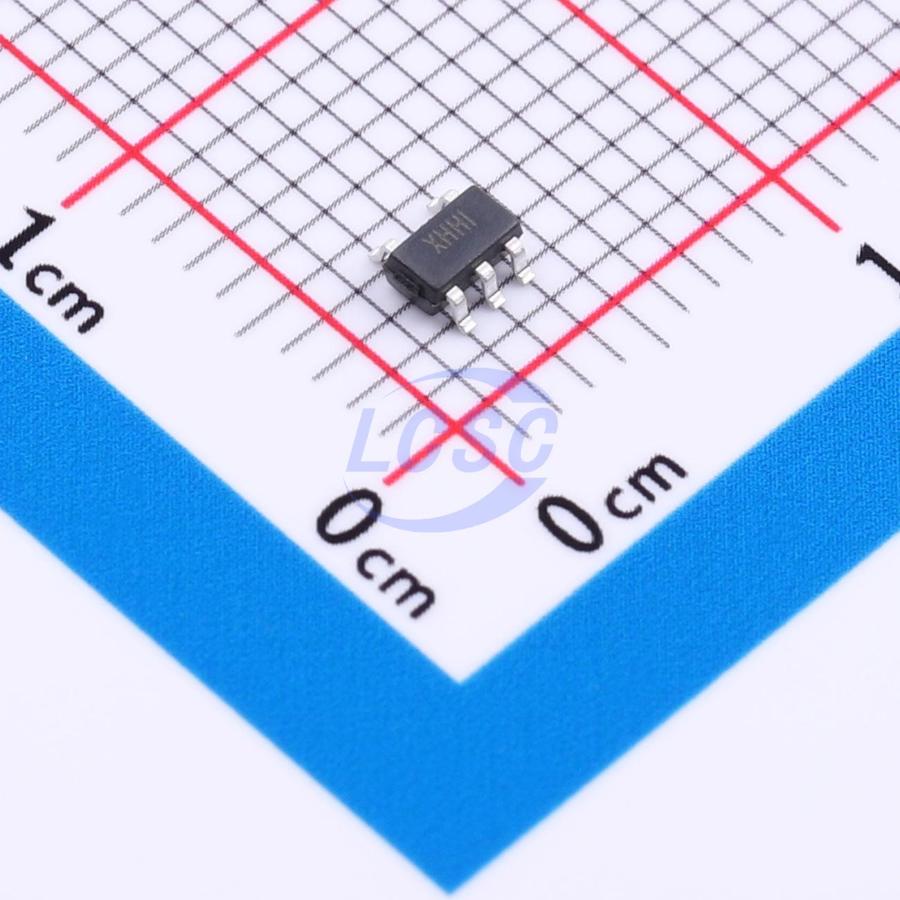

XTPS79318-XC

XTPS79318 is an ultra-low noise, ultra-low quiescent current LDO regulator operating from a 2.2V to 5.5V supply, capable of delivering up to 200mA output current with a stable 1.8V output voltage. Utilizing innovative design techniques, its quiescent current as low as 15μA at no load makes it well suited for battery-powered portable devices. The XTPS79318 delivers excellent noise rejection without requiring an additional noise bypass capacitor, while maintaining outstanding PSRR and line/load transient response performance. The combination of ultra-low noise and extremely low quiescent current enables the XTPS79318 to maximize battery life in portable devices. For high-performance applications where board space is limited, the XTPS79318 can be used with 1μF ceramic input and output capacitors. Available in a 5-pin SOT-23 package with an operating temperature range of -40°C to 125°C.

Applications

• Television applications
• Building automation
• Smartphones and tablets
• Connected peripherals and printers
• Home theater and entertainment applications

Key features

• Ultra-low noise: 9μVRMS, independent of VOUT
• Ultra-low quiescent current (no load): 15μA
• Maximum output current: 200mA
• Input voltage: 2.2V to 5.5V
• Fixed output voltage: 1.8V
• Output voltage accuracy: ±1%
• Low shutdown current: <1μA
• Low dropout: 200mV (typical)
• PSRR: 62dB at 1kHz
• No additional noise bypass capacitor required
• Stable performance with 1μF ceramic input and output capacitors
• Current limiting and thermal overload protection
• Logic-controlled enable
• 5-pin SOT-23 package
